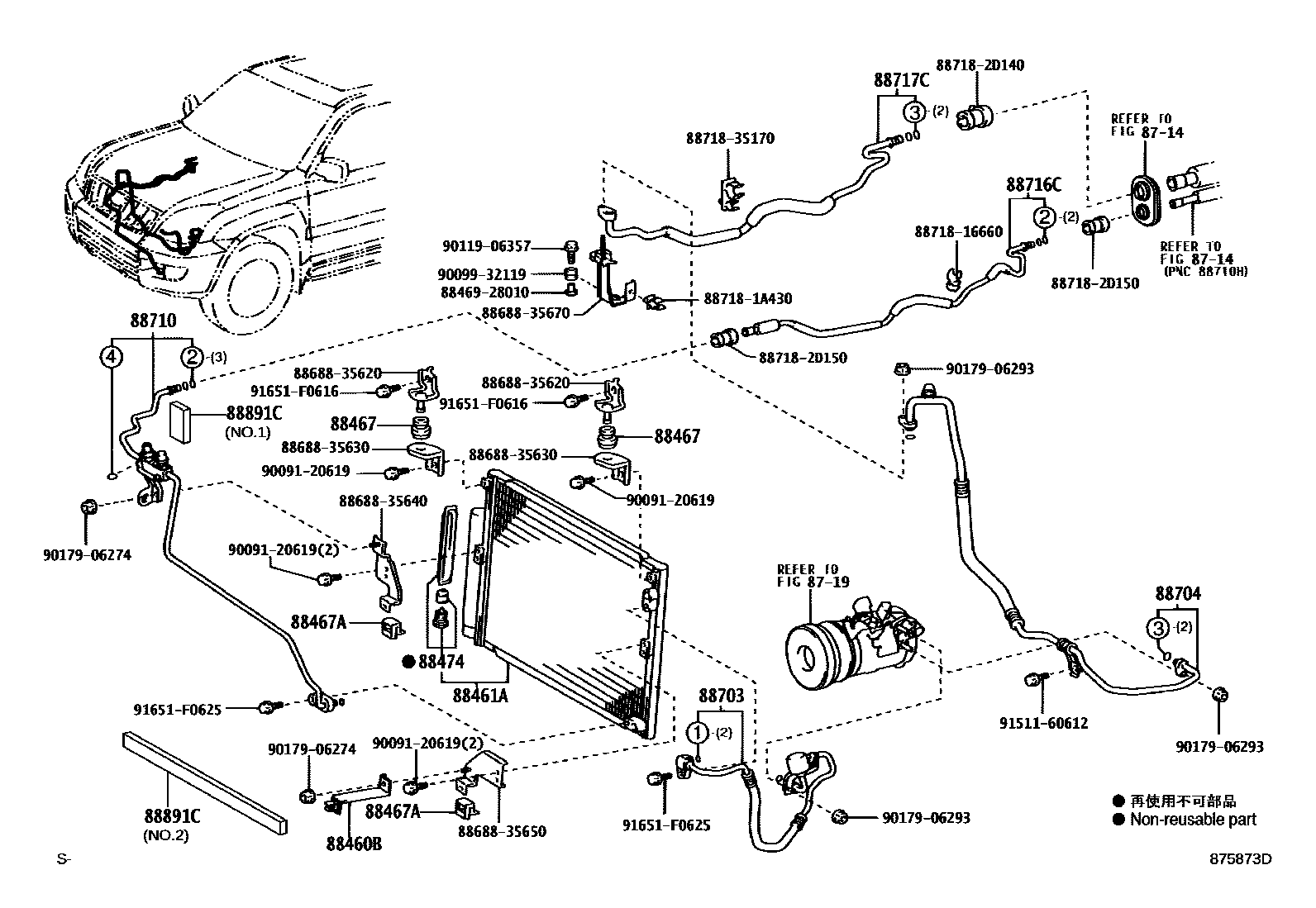

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1FRONT-SINGLE AIR CONDITIONER 0002 1FRONT-DUAL AIR CONDITIONER 0003 1FRONT-DUAL AIR CONDITIONER 0004 1REAR 0005 1O-RING

8714

8719

88460BBRACKET, COOLER CONDENSER, NO.1

main88688-35570iUZJ120200211-200908

88461ACORE, COOLER CONDENSER

main88461-35150iUZJ120200211-200307

main88461-60090iUZJ120200307-200309

main88461-60091iUZJ120200309-200601

main88461-60111iUZJ120200601-200908

88467CUSHION, COOLER CONDENSER, NO.1

main88467-28050iUZJ120200211-200307

REAR SEAT-REMOVABLE

main88467-28050iUZJ120200307-200908

88467ACUSHION, COOLER CONDENSER, NO.2

main88467-35080iUZJ120200307-200908

main88467-35080iUZJ120200211-200307

REAR SEAT-REMOVABLE

88474DRYER, COOLER

main88474-17010iUZJ120200307-200908

88703HOSE SUB-ASSY, DISCHARGE

main88703-60200iUZJ120200211-200309

sub88703-60201

main88703-60201iUZJ120200309-200908

88704HOSE SUB-ASSY, SUCTION

main88704-35020iUZJ120200211-200311

main88704-60340iUZJ120200311-200601

main88704-60400iUZJ120200601-200908

88710TUBE ASSY, AIR CONDITIONER

main88710-6B010iUZJ120200211-200309

sub88710-6B011

main88710-6B011iUZJ120200309-200908

88716CPIPE, COOLER REFRIGERANT LIQUID, C

main88716-35650iUZJ120200211-200309

REAR SUSPENSION-W(AIR SUSPENSION & KINETIC SUSPENSION)&REAR SEAT-REMOVABLE

main88716-35650iUZJ120200211-200309

REAR SEAT-REMOVABLE

main88716-35650iUZJ120200309-200309

main88716-35651iUZJ120200309

REAR SUSPENSION-W(AIR SUSPENSION & KINETIC SUSPENSION)&REAR SEAT-REMOVABLE

main88716-35651iUZJ120200309

REAR SEAT-REMOVABLE

88717CPIPE, COOLER REFRIGERANT SUCTION, C

main88717-35200iUZJ120200211-200310

REAR SEAT-REMOVABLE

main88717-35200iUZJ120200211-200310

REAR SUSPENSION-W(AIR SUSPENSION & KINETIC SUSPENSION)&REAR SEAT-REMOVABLE

main88717-35201iUZJ120200310

88891CPACKING C (FOR COOLER)

main36867-60010iUZJ120200601

NO.1

main88578-60320iUZJ120200310-200601

NO.1

main88578-60330iUZJ120200310

NO.2

8846928010SWITCH, PRESSURE CONTROL

main88469-28010

8868835620BRACKET, COOLER DIAPHRAGM

main88688-35620

8868835630BRACKET, COOLER DIAPHRAGM

main88688-35630

8868835640BRACKET, COOLER DIAPHRAGM

main88688-35640

8868835650BRACKET, COOLER DIAPHRAGM

main88688-35650

8868835670BRACKET, COOLER DIAPHRAGM

main88688-35670

8871816660PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-16660

887181A430PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-1A430

887182D140PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D140

887182D150PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D150

8871835170PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-35170

9009120619

main90091-20619

9009932119

main90099-32119

9011906357

main90119-06357

9017906274

main90179-06274

9017906293

main90179-06293

9151160612

main91511-60612

91651F0616

main91651-F0616

91651F0625

main91651-F0625

32 parts on this diagram · 5 diagrams in section
