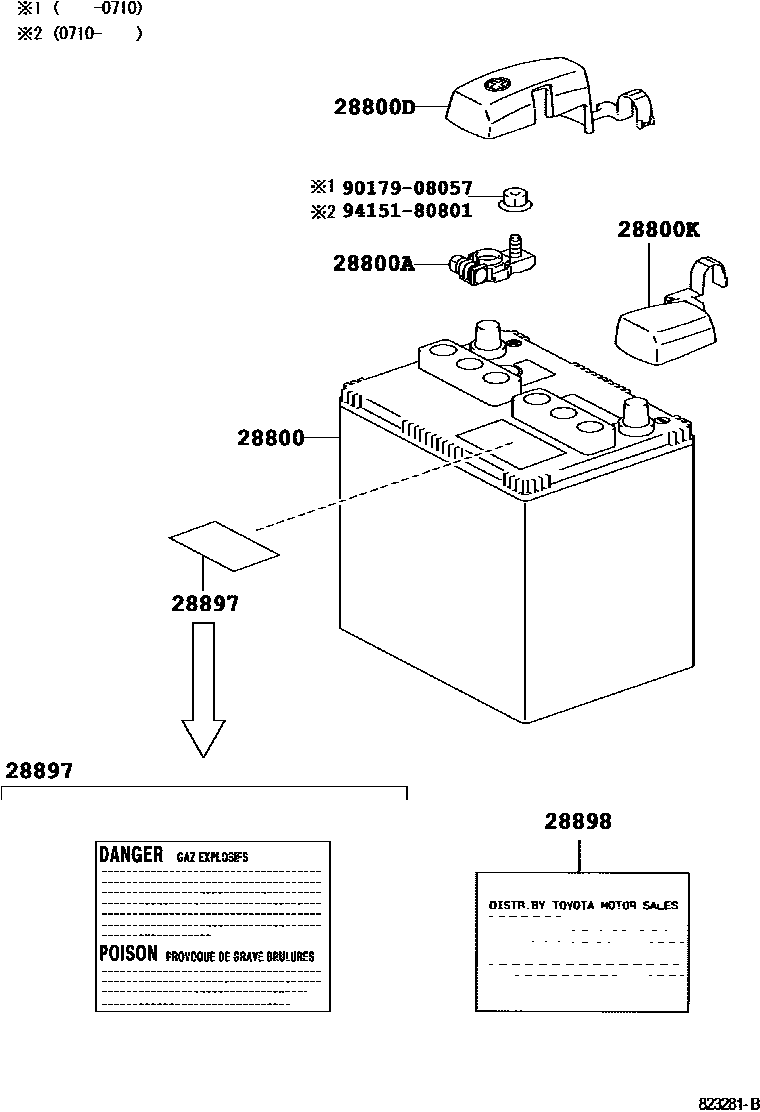

BATTERY & BATTERY CABLE

28800BATTERY

main28800-66021i2UZFE..UZJ120200211-200908

105D31L

sub28800-66022

28800ATERMINAL, BATTERY POSITIVE

main90982-05054i2UZFE..UZJ120200211

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-50460i2UZFE..UZJ120200211

28800KCOVER, CONNECTOR(FOR BATTERY TERMINAL NEGATIVE)

main82821-60120i2UZFE..UZJ120200211

28897PLATE, BATTERY CAUTION

main28897-46020

28898PLATE, BATTERY

main28898-50080i2UZFE..UZJ120200211

sub28898-20010

9017908057

main90179-08057

9415180801

main94151-80801

8 parts on this diagram · 1 diagram in section
