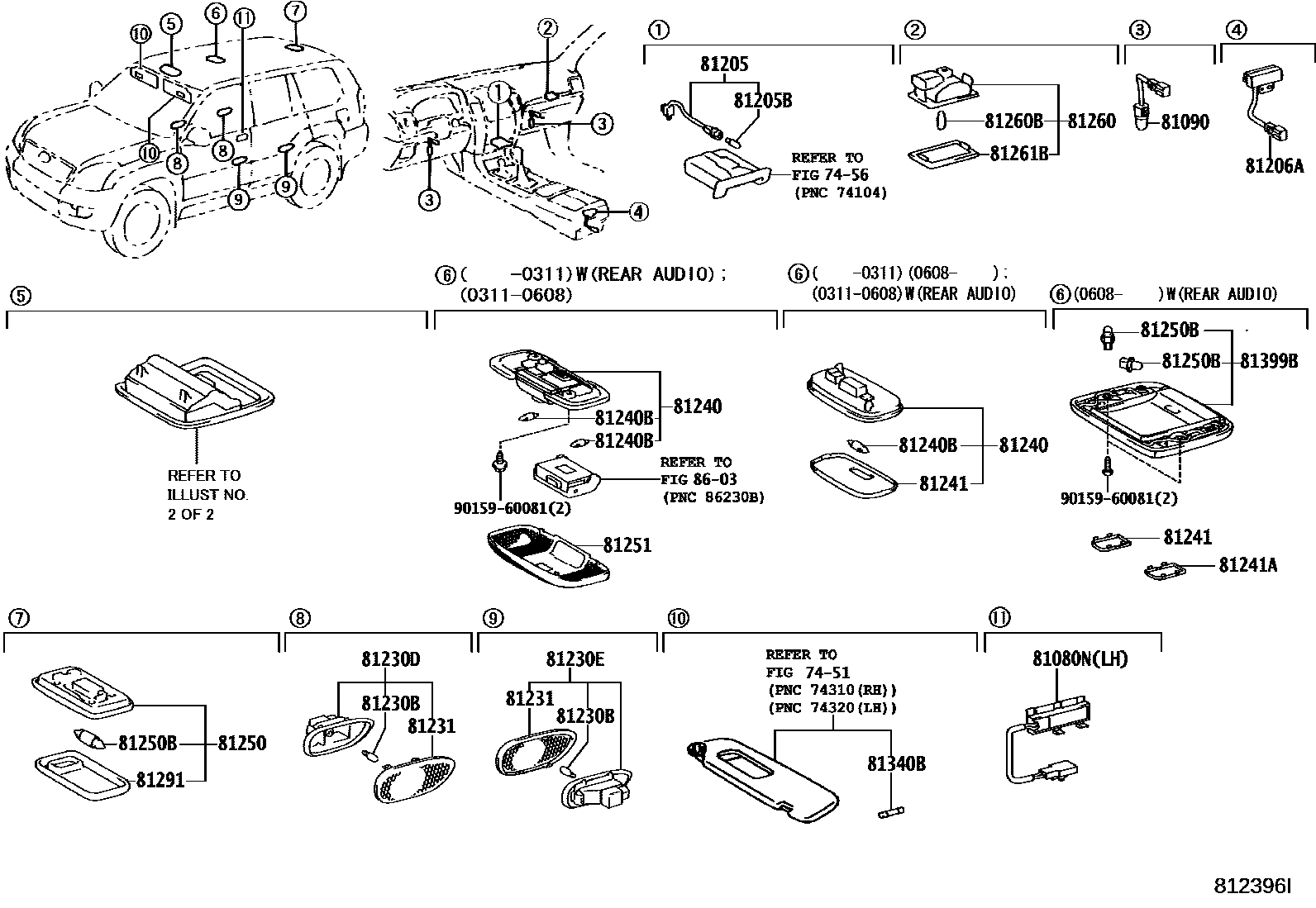

INTERIOR LAMP
7451
7456
81080NLAMP ASSY, INTERIOR ILLUMINATION, NO.1
SPORT PACKAGE
81090LAMP ASSY, INTERIOR ILLUMINATION, NO.2
81205LAMP SUB-ASSY, ASH RECEPTACLE
81205BBULB, ASH RECEPTACLE LAMP
12V 1.2W W/O SOCKET
81206ALAMP SUB-ASSY, CONSOLE BOX
REAR SUSPENSION-W(AIR SUSPENSION & KINETIC SUSPENSION)
REAR SUSPENSION-W(AIR SUSPENSION & KINETIC SUSPENSION)&REAR AUDIO-REAR ENTERTTAINMENT & DVD PLAYER
81230BBULB(FOR COURTESY LAMP)
12V 3.8W
81230DLAMP ASSY, FRONT DOOR COURTESY, RH
81230ELAMP ASSY, FRONT DOOR COURTESY, LH
81240LAMP ASSY, ROOM, NO.1
REAR AUDIO-REAR ENTERTTAINMENT & DVD PLAYER,IVORY,TRIM0#
sub81240-33030
REAR AUDIO-REAR ENTERTTAINMENT & DVD PLAYER,STONE,TRIM1#
sub81240-33030
81240BBULB, ROOM LAMP, NO.1
12V 8W,REAR AUDIO-REAR ENTERTTAINMENT & DVD PLAYER
12V 8W,REAR AUDIO-REAR SEAT
12V 8W
81241LENS, ROOM LAMP, NO.1
REAR AUDIO-REAR ENTERT.W/DVD PLAYER
REAR AUDIO-REAR ENTERTTAINMENT & DVD PLAYER
81241ALENS, ROOM LAMP, NO.2
REAR AUDIO-REAR ENTERT.W/DVD PLAYER
81250LAMP ASSY, ROOM, NO.2
IVORY,TRIM0#
STONE,TRIM1#
81250BBULB, ROOM LAMP, NO.2
12V 8W,REAR AUDIO-REAR ENTERT.W/DVD PLAYER
12V 8W
81251LENS, ROOM LAMP, NO.2
81260LAMP ASSY, GLOVE BOX
81260BBULB(FOR GLOVE BOX)
12V 1.2W W/O SOCKET
81261BLENS,GLOVE BOX LAMP
81291LENS, ROOM LAMP, NO.3(FOR REAR)
81340BBULB (FOR VANITY LAMP)
12V 2W
81399BCOVER, LENS
REAR AUDIO-REAR ENTERT.W/DVD PLAYER,IVORY,TRIM0#
REAR AUDIO-REAR ENTERT.W/DVD PLAYER,STONE,TRIM1#
8603
9015960081
main90159-60081
26 parts on this diagram · 2 diagrams in section
