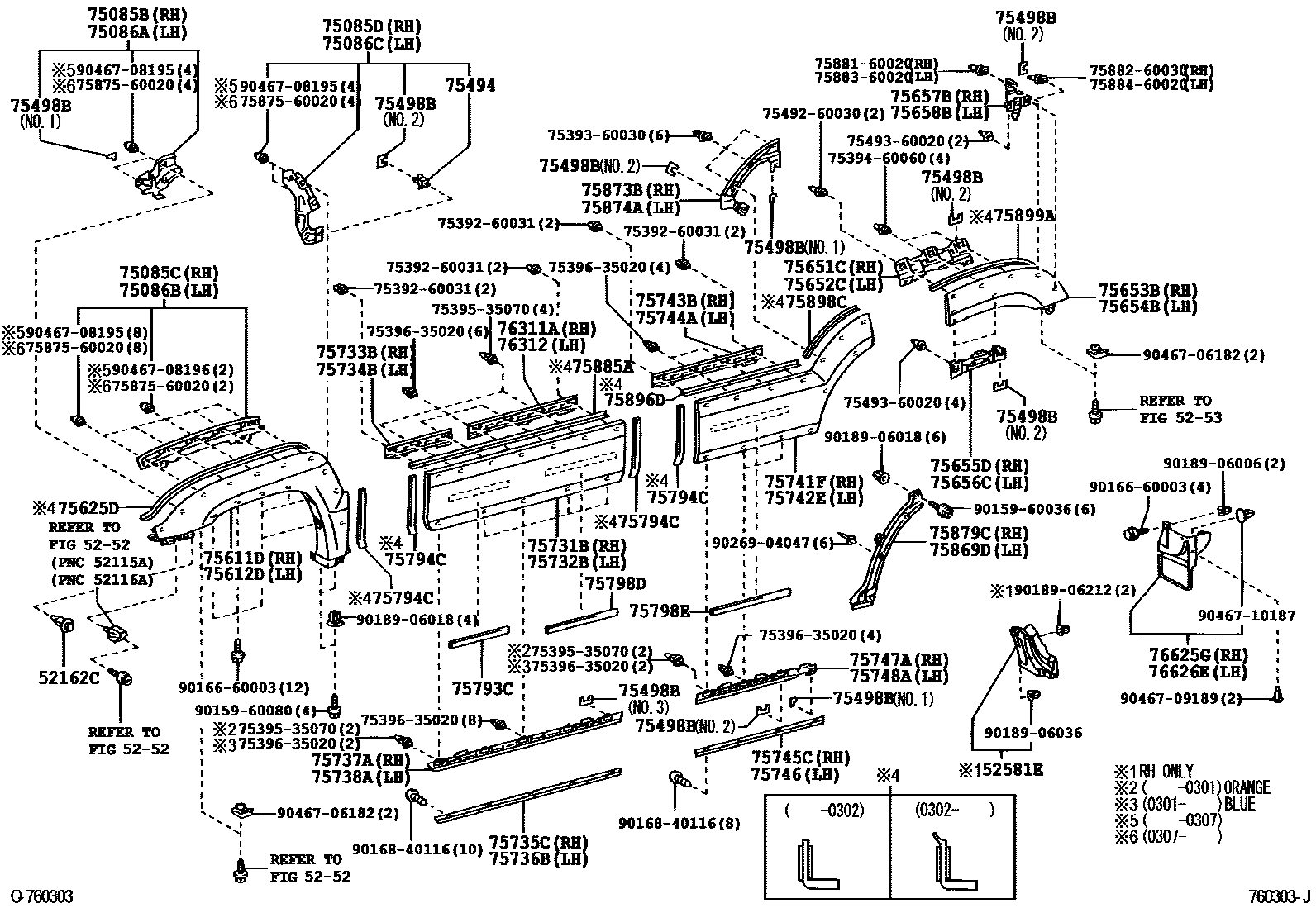

SPOILER & SIDE MUDGUARD

52162CPIECE, FRONT BUMPER

main52161-16010iUZJ120200211

sub52161-0K040

5252

5253

52581EPROTECTOR, REAR BUMPER, RH

main52581-60020iUZJ120200211

75085BMOULDING SUB-ASSY, FRONT FENDER WHEEL OPENING, RH

main75085-60030iUZJ120200211-200307

sub75085-60031

main75085-60031iUZJ120200307

75085CMOULDING SUB-ASSY, FRONT FENDER WHEEL OPENING, RH

main75085-60040iUZJ120200211-200307

sub75085-60041

main75085-60041iUZJ120200307

75085DMOULDING SUB-ASSY, FRONT FENDER WHEEL OPENING, RH

main75085-60050iUZJ120200211-200307

sub75085-60051

main75085-60051iUZJ120200307

75086AMOULDING SUB-ASSY, FRONT FENDER WHEEL OPENING, LH

main75086-60030iUZJ120200211-200307

sub75086-60031

main75086-60031iUZJ120200307

75086BMOULDING SUB-ASSY, FRONT FENDER WHEEL OPENING, LH

main75086-60040iUZJ120200211-200307

sub75086-60041

main75086-60041iUZJ120200307

75086CMOULDING SUB-ASSY, FRONT FENDER WHEEL OPENING, LH

main75086-60050iUZJ120200211-200307

sub75086-60051

main75086-60051iUZJ120200307

75494CLIP, OUTSIDE MOULDING, NO.3

main75494-60020iUZJ120200211

75498BSEAL, OUTSIDE MOULDING, NO.2

main75498-60010iUZJ120200211

NO.2

main75498-60020iUZJ120200211

RH,NO.1

main75498-60030iUZJ120200211

LH,NO.1

main75498-60040iUZJ120200211

NO.3

75611DMOULDING, FRONT FENDER, OUTSIDE FRONT RH

main75611-60150-A0iUZJ120200306-200908

WHITE PEARL CS.,070

main75611-60150-B0iUZJ120200211-200908

GRAY M.M.,1E8

main75611-60150-B1iUZJ120200211-200908

SILVER ME.,1F0

main75611-60150-B2iUZJ120200508-200908

SILVER ME.,1D4

main75611-60150-C0iUZJ120200211-200908

BLACK,202

main75611-60150-D0iUZJ120200707-200908

DK. RED M.M.,3Q3

main75611-60150-E0iUZJ120200211-200306

BEIGE PEARL CS.,4R2

main75611-60150-E1iUZJ120200508-200908

BEIGE ME.,4R4

main75611-60150-F0iUZJ120200211-200908

CHAMPAGNE M.M.,587

main75611-60150-G0iUZJ120200508-200707

OLIVE M.M.,6T7

main75611-60150-G1iUZJ120200707-200812

MD.GREEN M.M.,6U3

main75611-60150-J0iUZJ120200211-200908

DARK BLUE M.M.,8R4

main75611-60150-J1iUZJ120200508-200908

DK.BLUE MC.,8S6

75612DMOULDING, FRONT FENDER, OUTSIDE FRONT LH

main75612-60150-A0iUZJ120200306-200908

WHITE PEARL CS.,070

main75612-60150-B0iUZJ120200211-200908

GRAY M.M.,1E8

main75612-60150-B1iUZJ120200211-200908

SILVER ME.,1F0

main75612-60150-B2iUZJ120200508-200908

SILVER ME.,1D4

main75612-60150-C0iUZJ120200211-200908

BLACK,202

main75612-60150-D0iUZJ120200707-200908

DK. RED M.M.,3Q3

main75612-60150-E0iUZJ120200211-200306

BEIGE PEARL CS.,4R2

main75612-60150-E1iUZJ120200508-200908

BEIGE ME.,4R4

main75612-60150-F0iUZJ120200211-200908

CHAMPAGNE M.M.,587

main75612-60150-G0iUZJ120200508-200707

OLIVE M.M.,6T7

main75612-60150-G1iUZJ120200707-200812

MD.GREEN M.M.,6U3

main75612-60150-J0iUZJ120200211-200908

DARK BLUE M.M.,8R4

main75612-60150-J1iUZJ120200508-200908

DK.BLUE MC.,8S6

75625DPAD, FRONT FENDER OUTSIDE MOULDING, UPPRER

main75625-60020iUZJ120200211-200302

sub75625-60021

main75625-60021iUZJ120200302

75651CMOULDING, QUARTER, OUTSIDE FRONT RH

main75651-60140iUZJ120200211

NO PAINT REQ.

75652CMOULDING, QUARTER, OUTSIDE FRONT LH

main75652-60140iUZJ120200211

NO PAINT REQ.

75653BMOULDING, QUARTER OUTSIDE, RH NO.3

main75653-60040-A0iUZJ120200306-200908

WHITE PEARL CS.,070

main75653-60040-B0iUZJ120200211-200908

GRAY M.M.,1E8

main75653-60040-B1iUZJ120200211-200908

SILVER ME.,1F0

main75653-60040-B2iUZJ120200508-200908

SILVER ME.,1D4

main75653-60040-C0iUZJ120200211-200908

BLACK,202

main75653-60040-D0iUZJ120200707-200908

DK. RED M.M.,3Q3

main75653-60040-E0iUZJ120200211-200306

BEIGE PEARL CS.,4R2

main75653-60040-E1iUZJ120200508-200908

BEIGE ME.,4R4

main75653-60040-F0iUZJ120200211-200908

CHAMPAGNE M.M.,587

main75653-60040-G0iUZJ120200508-200707

OLIVE M.M.,6T7

main75653-60040-G1iUZJ120200707-200812

MD.GREEN M.M.,6U3

main75653-60040-J0iUZJ120200211-200908

DARK BLUE M.M.,8R4

main75653-60040-J1iUZJ120200508-200908

DK.BLUE MC.,8S6

75654BMOULDING, QUARTER, OUTSIDE NO.4

main75654-60040-A0iUZJ120200306-200908

WHITE PEARL CS.,070

main75654-60040-B0iUZJ120200211-200908

GRAY M.M.,1E8

main75654-60040-B1iUZJ120200211-200908

SILVER ME.,1F0

main75654-60040-B2iUZJ120200508-200908

SILVER ME.,1D4

main75654-60040-C0iUZJ120200211-200908

BLACK,202

main75654-60040-D0iUZJ120200707-200908

DK. RED M.M.,3Q3

main75654-60040-E0iUZJ120200211-200306

BEIGE PEARL CS.,4R2

main75654-60040-E1iUZJ120200508-200908

BEIGE ME.,4R4

main75654-60040-F0iUZJ120200211-200908

CHAMPAGNE M.M.,587

main75654-60040-G0iUZJ120200508-200707

OLIVE M.M.,6T7

main75654-60040-G1iUZJ120200707-200812

MD.GREEN M.M.,6U3

main75654-60040-J0iUZJ120200211-200908

DARK BLUE M.M.,8R4

main75654-60040-J1iUZJ120200508-200908

DK.BLUE MC.,8S6

75655DMOULDING, QUARTER, OUTSIDE CENTER RH

main75655-60010iUZJ120200211

75656CMOULDING, QUARTER, OUTSIDE CENTER LH

main75656-60010iUZJ120200211

75657BMOULDING, QUARTER PANEL, LOWER REAR RH

main75657-60010iUZJ120200211

75658BMOULDING, QUARTER PANEL, LOWER REAR LH

main75658-60010iUZJ120200211

75731BMOULDING, FRONT DOOR, OUTSIDE RH

main75731-60170-A0iUZJ120200306-200908

WHITE PEARL CS.,070

main75731-60170-B0iUZJ120200211-200908

GRAY M.M.,1E8

main75731-60170-B1iUZJ120200211-200908

SILVER ME.,1F0

main75731-60170-B2iUZJ120200508-200908

SILVER ME.,1D4

main75731-60170-C0iUZJ120200211-200908

BLACK,202

main75731-60170-D0iUZJ120200707-200908

DK. RED M.M.,3Q3

main75731-60170-E0iUZJ120200211-200306

BEIGE PEARL CS.,4R2

main75731-60170-E1iUZJ120200508-200908

BEIGE ME.,4R4

main75731-60170-F0iUZJ120200211-200908

CHAMPAGNE M.M.,587

main75731-60170-G0iUZJ120200508-200707

OLIVE M.M.,6T7

main75731-60170-G1iUZJ120200707-200812

MD.GREEN M.M.,6U3

main75731-60170-J0iUZJ120200211-200908

DARK BLUE M.M.,8R4

main75731-60170-J1iUZJ120200508-200908

DK.BLUE MC.,8S6

75732BMOULDING, FRONT DOOR, OUTSIDE LH

main75732-60170-A0iUZJ120200306-200908

WHITE PEARL CS.,070

main75732-60170-B0iUZJ120200211-200908

GRAY M.M.,1E8

main75732-60170-B1iUZJ120200211-200908

SILVER ME.,1F0

main75732-60170-B2iUZJ120200508-200908

SILVER ME.,1D4

main75732-60170-C0iUZJ120200211-200908

BLACK,202

main75732-60170-D0iUZJ120200707-200908

DK. RED M.M.,3Q3

main75732-60170-E0iUZJ120200211-200306

BEIGE PEARL CS.,4R2

main75732-60170-E1iUZJ120200508-200908

BEIGE ME.,4R4

main75732-60170-F0iUZJ120200211-200908

CHAMPAGNE M.M.,587

main75732-60170-G0iUZJ120200508-200707

OLIVE M.M.,6T7

main75732-60170-G1iUZJ120200707-200812

MD.GREEN M.M.,6U3

main75732-60170-J0iUZJ120200211-200908

DARK BLUE M.M.,8R4

main75732-60170-J1iUZJ120200508-200908

DK.BLUE MC.,8S6

75733BMOULDING, FRONT DOOR, OUTSIDE UPPER REAR RH

main75733-60010iUZJ120200211

75734BMOULDING, FRONT DOOR, OUTSIDE UPPER REAR LH

main75734-60010iUZJ120200211

75735CMOULDING, FRONT DOOR OUTSIDE, LOWER RH

main75735-60010-A0iUZJ120200306-200908

WHITE PEARL CS.,070

main75735-60010-B0iUZJ120200211-200908

GRAY M.M.,1E8

main75735-60010-B1iUZJ120200211-200908

SILVER ME.,1F0

main75735-60010-B2iUZJ120200508-200908

SILVER ME.,1D4

main75735-60010-C0iUZJ120200211-200908

BLACK,202

main75735-60010-D0iUZJ120200707-200908

DK. RED M.M.,3Q3

main75735-60010-E0iUZJ120200211-200306

BEIGE PEARL CS.,4R2

main75735-60010-E1iUZJ120200508-200908

BEIGE ME.,4R4

main75735-60010-F0iUZJ120200211-200908

CHAMPAGNE M.M.,587

main75735-60010-G0iUZJ120200508-200707

OLIVE M.M.,6T7

main75735-60010-G1iUZJ120200707-200812

MD.GREEN M.M.,6U3

main75735-60010-J0iUZJ120200211-200908

DARK BLUE M. M.,8R4

main75735-60010-J1iUZJ120200508-200908

DK.BLUE MC.,8S6

75736BMOULDING, FRONT DOOR, OUTSIDE LOWER LH

main75736-60010-A0iUZJ120200306-200908

WHITE PEARL CS.,070

main75736-60010-B0iUZJ120200211-200908

GLAY M.M.,1E8

main75736-60010-B1iUZJ120200211-200908

SILVER ME.,1F0

main75736-60010-B2iUZJ120200508-200908

SILVER ME.,1D4

main75736-60010-C0iUZJ120200211-200908

BLACK,202

main75736-60010-D0iUZJ120200707-200908

DK. RED M.M.,3Q3

main75736-60010-E0iUZJ120200211-200306

BEIGE PEARL CS.,4R2

main75736-60010-E1iUZJ120200508-200908

BEIGE ME.,4R4

main75736-60010-F0iUZJ120200211-200908

CHAMPAGNE M.M.,587

main75736-60010-G0iUZJ120200508-200707

OLIVE M.M.,6T7

main75736-60010-G1iUZJ120200707-200812

MD.GREEN M.M.,6U3

main75736-60010-J0iUZJ120200211-200908

DARK BLUE M.M.,8R4

main75736-60010-J1iUZJ120200508-200908

DK.BLUE MC.,8S6

75737AMOULDING, FRONT DOOR OUTSIDE, LOWER REAR RH

main75737-60010iUZJ120200211

75738AMOULDING, FRONT DOOR OUTSIDE, LOWER REAR LH

main75738-60010iUZJ120200211

75741FMOULDING, REAR DOOR, OUTSIDE RH

main75741-60210-A0iUZJ120200306-200908

WHITE PEARL CS.,070

main75741-60210-B0iUZJ120200211-200908

GRAY M.M.,1E8

main75741-60210-B1iUZJ120200211-200908

SILVER ME.,1F0

main75741-60210-B2iUZJ120200508-200908

SILVER ME.,1D4

main75741-60210-C0iUZJ120200211-200908

BLACK,202

main75741-60210-D0iUZJ120200707-200908

DK. RED M.M.,3Q3

main75741-60210-E0iUZJ120200211-200306

BEIGE PEARL CS.,4R2

main75741-60210-E1iUZJ120200508-200908

BEIGE ME.,4R4

main75741-60210-F0iUZJ120200211-200908

CHAMPAGNE M.M.,587

main75741-60210-G0iUZJ120200508-200707

OLIVE M.M.,6T7

main75741-60210-G1iUZJ120200707-200812

MD.GREEN M.M.,6U3

main75741-60210-J0iUZJ120200211-200908

DARK BLUE M.M.,8R4

main75741-60210-J1iUZJ120200508-200908

DK.BLUE MC.,8S6

75742EMOULDING, REAR DOOR, OUTSIDE LH

main75742-60210-A0iUZJ120200306-200908

WHITE PEARL CS.,070

main75742-60210-B0iUZJ120200211-200908

GRAY M.M.,1E8

main75742-60210-B1iUZJ120200211-200908

SILVER ME.,1F0

main75742-60210-B2iUZJ120200508-200908

SILVER ME.,1D4

main75742-60210-C0iUZJ120200211-200908

BLACK,202

main75742-60210-D0iUZJ120200707-200908

DK. RED M.M.,3Q3

main75742-60210-E0iUZJ120200211-200306

BEIGE PEARL CS.,4R2

main75742-60210-E1iUZJ120200508-200908

BEIGE ME.,4R4

main75742-60210-F0iUZJ120200211-200908

CHAMPAGNE M.M.,587

main75742-60210-G0iUZJ120200508-200707

OLIVE M.M.,6T7

main75742-60210-G1iUZJ120200707-200812

MD.GREEN M.M.,6U3

main75742-60210-J0iUZJ120200211-200908

DARK BLUE M.M.,8R4

main75742-60210-J1iUZJ120200508-200908

DK.BLUE MC.,8S6

75743BMOULDING, REAR DOOR OUTSIDE, UPPER REAR RH

main75743-60030iUZJ120200211

NO PAINT REQ.

75744AMOULDING, REAR DOOR OUTSIDE, UPPER REAR LH

main75744-60030iUZJ120200211

NO PAINT REQ.

75745CMOULDING, REAR DOOR OUTSIDE, LOWER RH

main75745-60010-A0iUZJ120200306-200908

WHITE PEARL CS.,070

main75745-60010-B0iUZJ120200211-200908

GRAY M.M.,1E8

main75745-60010-B1iUZJ120200211-200908

SILVER ME.,1F0

main75745-60010-B2iUZJ120200508-200908

SILVER ME.,1D4

main75745-60010-C0iUZJ120200211-200908

BLACK,202

main75745-60010-D0iUZJ120200707-200908

DK. RED M.M.,3Q3

main75745-60010-E0iUZJ120200211-200306

BEIGE PEARL CS.,4R2

main75745-60010-E1iUZJ120200508-200908

BEIGE ME.,4R4

main75745-60010-F0iUZJ120200211-200908

CHAMPAGNE M.M.,587

main75745-60010-G0iUZJ120200508-200707

OLIVE M.M.,6T7

main75745-60010-G1iUZJ120200707-200812

MD.GREEN M.M.,6U3

main75745-60010-J0iUZJ120200211-200908

DARK BLUE M.M.,8R4

main75745-60010-J1iUZJ120200508-200908

DK.BLUE MC.,8S6

75746MOULDING, REAR DOOR OUTSIDE, LOWER LH

main75746-60010-A0iUZJ120200306-200908

WHITE PEARL CS.,070

main75746-60010-B0iUZJ120200211-200908

GRAY M.M.,1E8

main75746-60010-B1iUZJ120200211-200908

SILVER ME.,1F0

main75746-60010-B2iUZJ120200508-200908

SILVER ME.,1D4

main75746-60010-C0iUZJ120200211-200908

BLACK,202

main75746-60010-D0iUZJ120200707-200908

DK. RED M.M.,3Q3

main75746-60010-E0iUZJ120200211-200306

BEIGE PEARL CS.,4R2

main75746-60010-E1iUZJ120200508-200908

BEIGE ME.,4R4

main75746-60010-F0iUZJ120200211-200908

CHAMPAGNE M.M.,587

main75746-60010-G0iUZJ120200508-200707

OLIVE M.M.,6T7

main75746-60010-G1iUZJ120200707-200812

MD.GREEN M.M.,6U3

main75746-60010-J0iUZJ120200211-200908

DARK BLUE M.M.,8R4

main75746-60010-J1iUZJ120200508-200908

DK.BLUE MC.,8S6

75747AMOULDING, REAR DOOR OUTSIDE, LOWER REAR RH

main75747-60010iUZJ120200211

75748AMOULDING, REAR DOOR OUTSIDE, LOWER REAR LH

main75748-60010iUZJ120200211

75793CPAD, FRONT DOOR OUTSIDE MOULDING, UPPER

main75793-60020iUZJ120200211

75794CPAD, FRONT DOOR OUTSIDE MOULDING, REAR

main75794-60010iUZJ120200211-200302

sub75794-60011

main75794-60011iUZJ120200302

75798DPAD, FRONT DOOR OUTSIDE MOULDING, REAR

main75798-60020iUZJ120200211

75798EPAD, REAR DOOR OUTSIDE MOULDING, RR

main75793-60020iUZJ120200211

75869DRETAINER, QUARTER OPENING, LH

main75869-60030iUZJ120200211

75873BMOULDING, QUARTER WHEEL OPENING, RH

main75873-60010iUZJ120200211

75874AMOULDING, QUARTER WHEEL OPENING, LH

main75874-60010iUZJ120200211

75879CRETAINER, QUARTER OPENING, RH

main75879-60030iUZJ120200211

75885ATAPE, MOULDING, NO.6

main75885-60020iUZJ120200211-200302

sub75885-60021

main75885-60021iUZJ120200302

75896DTAPE, MOULDING, NO.2

main75896-60030iUZJ120200211-200302

sub75896-60031

main75896-60031iUZJ120200302

75898CTAPE, MOULDING, NO.4

main75898-60030iUZJ120200211-200302

sub75898-60031

main75898-60031iUZJ120200302

75899ATAPE, MOULDING, NO.5

main75899-60050iUZJ120200211-200302

sub75899-60051

main75899-60051iUZJ120200302

76311AMOULDING, FRONT DOOR, UPPER CENTER RH

main76311-60010iUZJ120200211

76312MOULDING, FRONT DOOR, UPPER CENTER LH

main76312-60010iUZJ120200211

76625GMUDGUARD, QUARTER PANEL, REAR RH

main76607-60230-A0iUZJ120200306-200908

WHITE PEARL CS.,070

main76607-60230-B0iUZJ120200211-200908

GRAY M.M.,1E8

main76607-60230-B1iUZJ120200211-200908

SILVER ME.,1F0

main76607-60230-B2iUZJ120200508-200908

SILVER ME.,1D4

main76607-60230-C0iUZJ120200211-200908

BLACK,202

main76607-60230-D0iUZJ120200707-200908

DK. RED M.M.,3Q3

main76607-60230-E0iUZJ120200211-200306

BEIGE PEARL CS.,4R2

main76607-60230-E1iUZJ120200508-200908

BEIGE ME.,4R4

main76607-60230-F0iUZJ120200211-200908

CHAMPAGNE M.M.,587

main76607-60230-G0iUZJ120200508-200707

OLIVE M.M.,6T7

main76607-60230-G1iUZJ120200707-200812

MD.GREEN M.M.,6U3

main76607-60230-J0iUZJ120200211-200908

DARK BLUE M.M.,8R4

main76607-60230-J1iUZJ120200508-200908

DK.BLUE MC.,8S6

76626EMUDGUARD, QUARTER PANEL, REAR LH

main76608-60230-A0iUZJ120200306-200908

WHITE PEARL CS.,070

main76608-60230-B0iUZJ120200211-200908

GRAY M.M.,1E8

main76608-60230-B1iUZJ120200211-200908

SILVER ME.,1F0

main76608-60230-B2iUZJ120200508-200908

SILVER ME.,1D4

main76608-60230-C0iUZJ120200211-200908

BLACK,202

main76608-60230-D0iUZJ120200707-200908

DK. RED M.M.,3Q3

main76608-60230-E0iUZJ120200211-200306

BEIGE PEARL CS.,4R2

main76608-60230-E1iUZJ120200508-200908

BEIGE ME.,4R4

main76608-60230-F0iUZJ120200211-200908

CHAMPAGNE M.M.,587

main76608-60230-G0iUZJ120200508-200707

OLIVE M.M.,6T7

main76608-60230-G1iUZJ120200707-200812

MD.GREEN M.M.,6U3

main76608-60230-J0iUZJ120200211-200908

DARK BLUE M.M.,8R4

main76608-60230-J1iUZJ120200508-200908

DK.BLUE MC.,8S6

7539260031RETAINER, OUTSIDE MOULDING

main75392-60031

7539360030RETAINER, OUTSIDE MOULDING, NO.2

main75393-60030

7539460060RETAINER, OUTSIDE MOULDING, NO.3

main75394-60060

7539535070CLIP, BACK DOOR MOULDING, NO.1

main75395-35070

7539635020CLIP, OUTSIDE MOULDING, NO.2

main75396-35020

7549260030RETAINER, OUTSIDE MOULDING, NO.5

main75492-60030

7549360020RETAINER, OUTSIDE MOULDING, NO.4

main75493-60020

7587560020MOULDING, BACK DOOR OUTSIDE, UPPER

main75875-60020

7588160020SPACER, REAR COMBINATION RIM, INSIDE RH

main75881-60020

7588260030SPACER, REAR COMBINATION RIM, INSIDE LH

main75882-60030

7588360020

main75883-60020

7588460020

main75884-60020

9015960036

main90159-60036

9015960080

main90159-60080

9016660003

main90166-60003

9016840116

main90168-40116

9018906006

main90189-06006

9018906018

main90189-06018

9018906036

main90189-06036

9018906212

main90189-06212

9026904047

main90269-04047

9046706182

main90467-06182

9046708195

main90467-08195

9046708196

main90467-08196

9046709189

main90467-09189

9046710187

main90467-10187

81 parts on this diagram · 1 diagram in section
