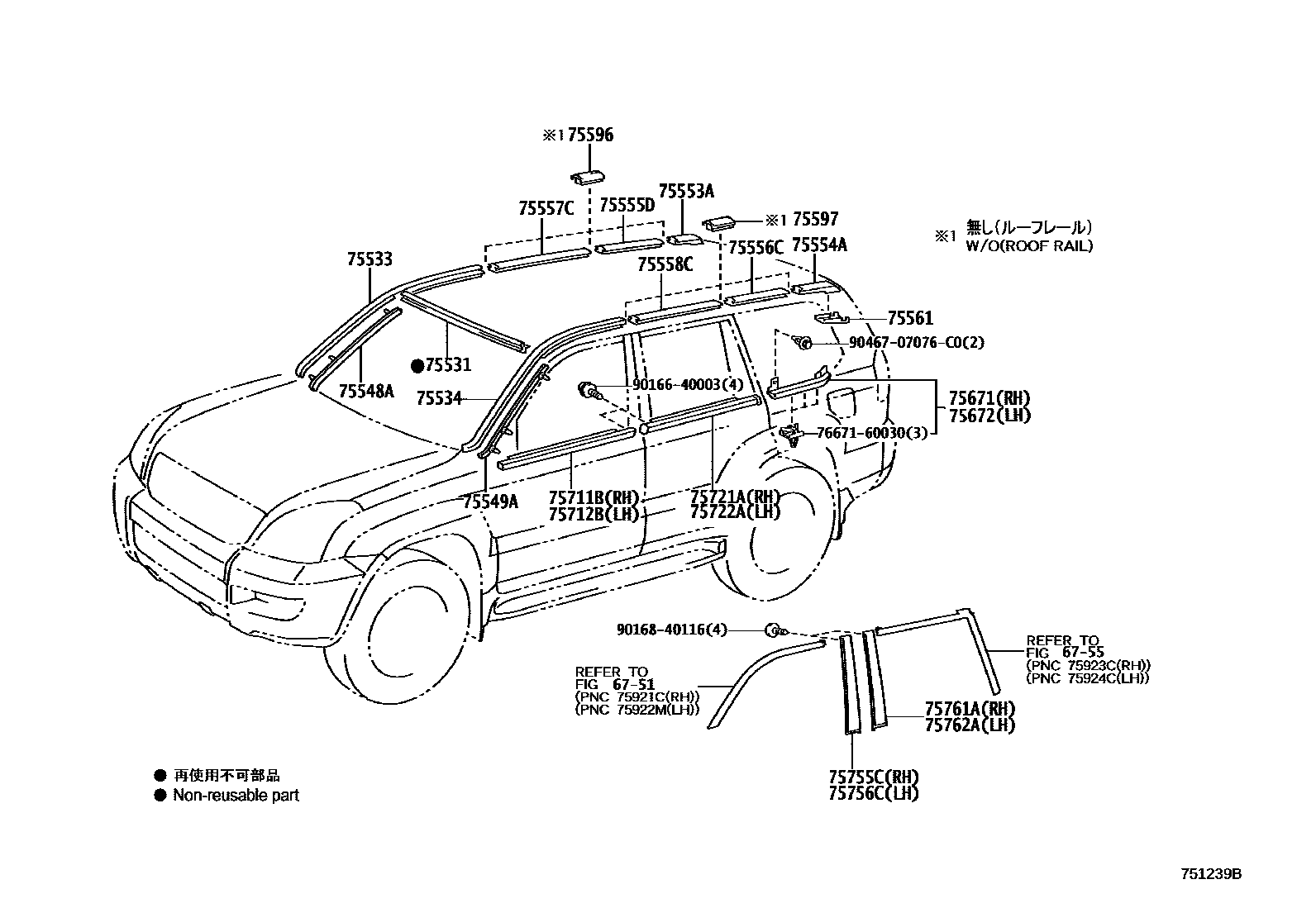

MOULDING

6751

6755

75531MOULDING, WINDSHIELD, OUTER UPPER

main75531-60040iUZJ120200211

NO PAINT REQ.

75533MOULDING, WINDSHIELD, OUTSIDE RH

main75533-60040iUZJ120200211-200503

sub75533-60041

main75533-60041iUZJ120200504

75534MOULDING, WINDSHIELD, OUTSIDE LH

main75534-60030iUZJ120200211-200503

sub75534-60031

main75534-60031iUZJ120200504

75548AFASTENER, WINDSHIELD OUTSIDE MOULDING, NO.1

main75548-60010iUZJ120200211

75549AMOULDING, WINDSHIELD OUTSIDE SUB

main75549-60020iUZJ120200211

75553AMOULDING, ROOF DRIP SIDE FINISH, REAR RH

main75553-60030iUZJ120200211

75554AMOULDING, ROOF DRIP SIDE FINISH, REAR LH

main75554-60030iUZJ120200211

75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH

main75555-60010iUZJ120200211

75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH

main75555-60010iUZJ120200211

75557CMOULDING, ROOF DRIP SIDE FINISH, CENTER NO.2 RH

main75557-60030iUZJ120200211-200612

sub75557-60031

main75557-60031iUZJ120200701

75558CMOULDING, ROOF DRIP SIDE FINISH, CENTER NO.2 LH

main75557-60030iUZJ120200211-200612

sub75557-60031

main75557-60031iUZJ120200701

75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1

main75561-42030iUZJ120200211-200807

sub75561-60010

main75561-60010iUZJ120200807

sub75561-60030

75596COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, RH

main75596-35030iUZJ120200704

main75596-42010iUZJ120200211-200703

sub75596-35030

75597COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, LH

main75596-35030iUZJ120200704

main75596-42010iUZJ120200211-200703

sub75596-35030

75671MOULDING, QUARTER BELT, RH

main75660-60070iUZJ120200211-200908

75672MOULDING, QUARTER BELT, LH

main75670-60070iUZJ120200211-200908

75711BMOULDING, FRONT DOOR BELT, RH

main75711-60080iUZJ120200211-200908

75712BMOULDING, FRONT DOOR BELT, LH

main75712-60080iUZJ120200211-200908

75721AMOULDING, REAR DOOR BELT, RH

main75721-60080iUZJ120200211-200908

75722AMOULDING, REAR DOOR BELT, LH

main75722-60080iUZJ120200211-200908

75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH

main75755-60010iUZJ120200211-200304

sub75755-60030

main75755-60030iUZJ120200304

75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH

main75756-60010iUZJ120200211-200304

sub75756-60030

main75756-60030iUZJ120200304

75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH

main75761-60010iUZJ120200211-200304

NO PAINT REQ.

sub75761-60030

main75761-60030iUZJ120200304

NO PAINT REQ.

75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH

main75762-60010iUZJ120200211-200304

NO PAINT REQ.

sub75762-60030

main75762-60030iUZJ120200304

NO PAINT REQ.

7667160030CLIP, QUARTER BELT MOULDING, NO.1

main76671-60030

9016640003

main90166-40003

9016840116

main90168-40116

9046707076C0

main90467-07076C0

30 parts on this diagram · 1 diagram in section
