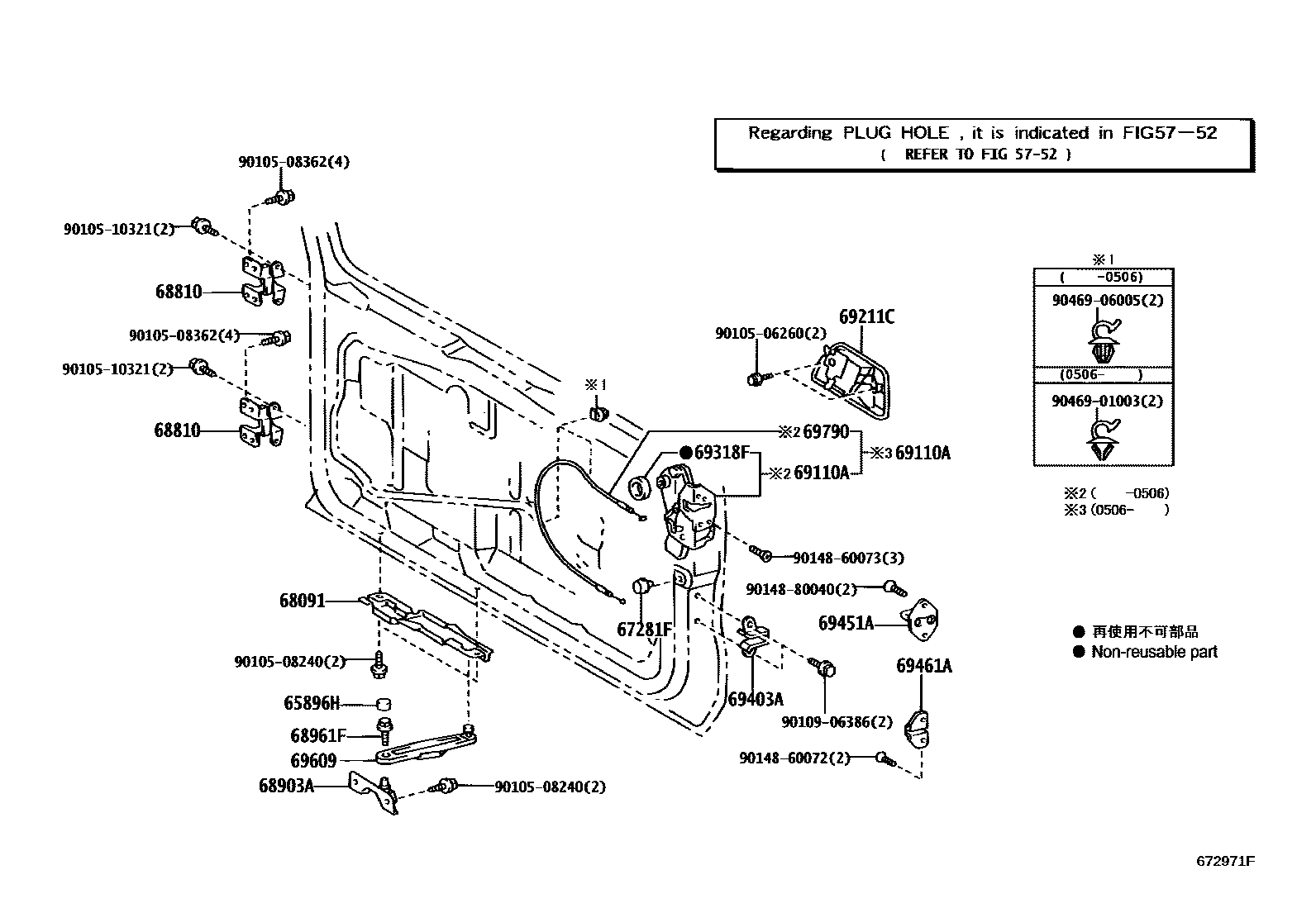

BACK DOOR LOCK & HINGE
5752
65896HCAP, COVER TOP SET BOLT, B
68091RAIL SUB-ASSY, BACK DOOR STAY, RH
68810HINGE ASSY, BACK DOOR, UPPER
sub68801-60051
68903ABRACKET SUB-ASSY, BACK DOOR STAY, RH
68961FBOLT, BACK DOOR STAY
69211CHANDLE, BACK DOOR OUTSIDE
WHITE PEARL CS.,070
SILVER ME.,1D4
GRAY M.M.,1E8
SILVER ME.,1F0
BLACK,202
DK. RED M.M.,3Q3
BEIGE ME.,4R4
CHAMPAGNE M.M.,587
OLIVE M.M.,6T7
MD.GREEN M.M.,6U3
DARK BLUE M.M.,8R4
DK.BLUE MC.,8S6
69318FSEAL, DOOR LOCK WIRING HARNESS
69403ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, RH
69451APLATE, DOOR LOCK STRIKER
69461ASTOPPER, BACK DOOR SIDE MALE
69609LINK SUB-ASSY, BACK DOOR, LOWER
CANADA PACKAGE
69790CONTROL ASSY, BACK DOOR LOCK
9010506260
main90105-06260
9010508240
main90105-08240
9010508362
main90105-08362
9010510321
main90105-10321
9010906386
main90109-06386
9014860072
main90148-60072
9014860073
main90148-60073
9014880040
main90148-80040
9046901003
main90469-01003
9046906005
main90469-06005
25 parts on this diagram · 1 diagram in section
