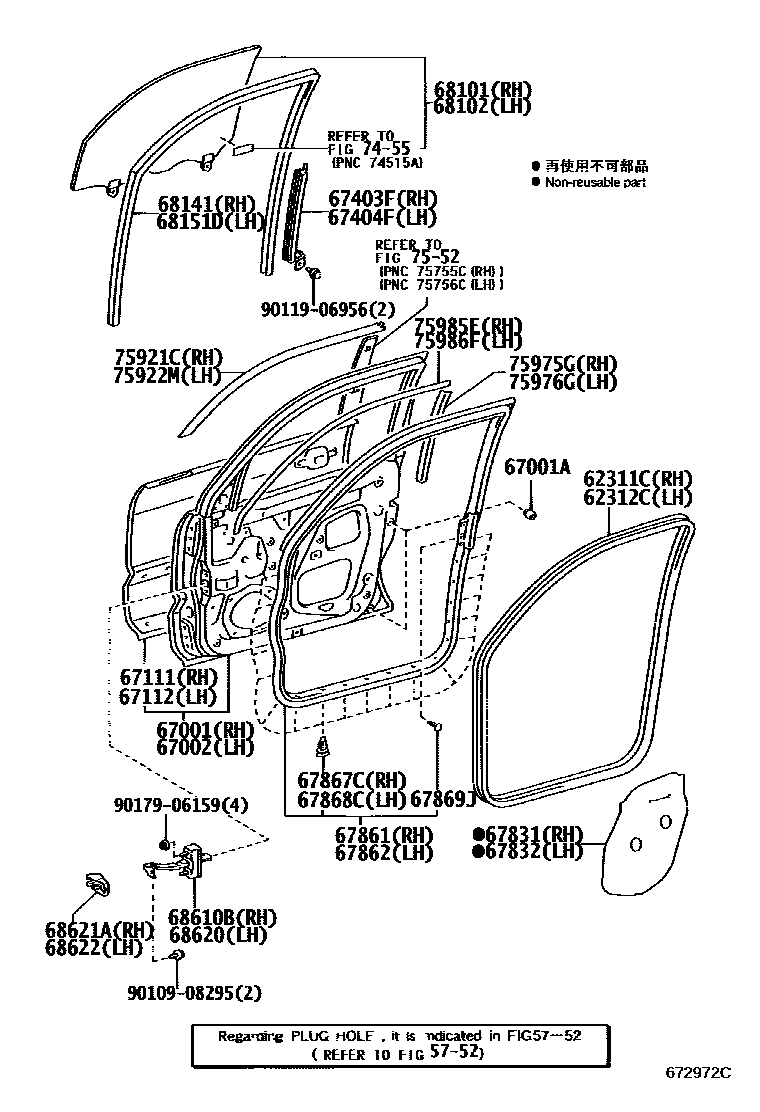

FRONT DOOR PANEL & GLASS
5752
62311CWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
IVORY,TRIM0#
MD.GRAY,TRIM1#
62312CWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
IVORY,TRIM0#
MD.GRAY,TRIM1#
67001PANEL SUB-ASSY, FRONT DOOR, RH
CANADA GX
67002PANEL SUB-ASSY, FRONT DOOR, LH
CANADA GX
67111PANEL, FRONT DOOR, OUTER RH
67112PANEL, FRONT DOOR, OUTER LH
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67831COVER, FRONT DOOR SERVICE HOLE, RH
67832COVER, FRONT DOOR SERVICE HOLE, LH
67861WEATHERSTRIP, FRONT DOOR, RH
67862WEATHERSTRIP, FRONT DOOR, LH
67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH
67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH
67869JCLIP, FRONT DOOR WEATHERSTRIP
68101GLASS SUB-ASSY, FRONT DOOR, RH
*UVCTT,T=5.0,GREEN
68102GLASS SUB-ASSY, FRONT DOOR, LH
*UVCTT,T=5.0,GREEN
68141RUN, FRONT DOOR GLASS
68151DRUN, FRONT DOOR GLASS, LH
68621ACOVER, FRONT DOOR CHECK, RH
68622COVER, FRONT DOOR CHECK, LH
7455
7552
75921CTAPE, BLACK OUT, NO.1 RH
75922MTAPE, BLACK OUT, NO.1 LH
75975GSTRIPE, FRONT DOOR, NO.2 RH
75976GSTRIPE, FRONT DOOR, NO.2 LH
75985ESTRIPE, FRONT DOOR OUTSIDE, RH
75986FSTRIPE, FRONT DOOR OUTSIDE, LH
9010908295
main90109-08295
9011906956
main90119-06956
9017906159
main90179-06159
36 parts on this diagram · 2 diagrams in section
