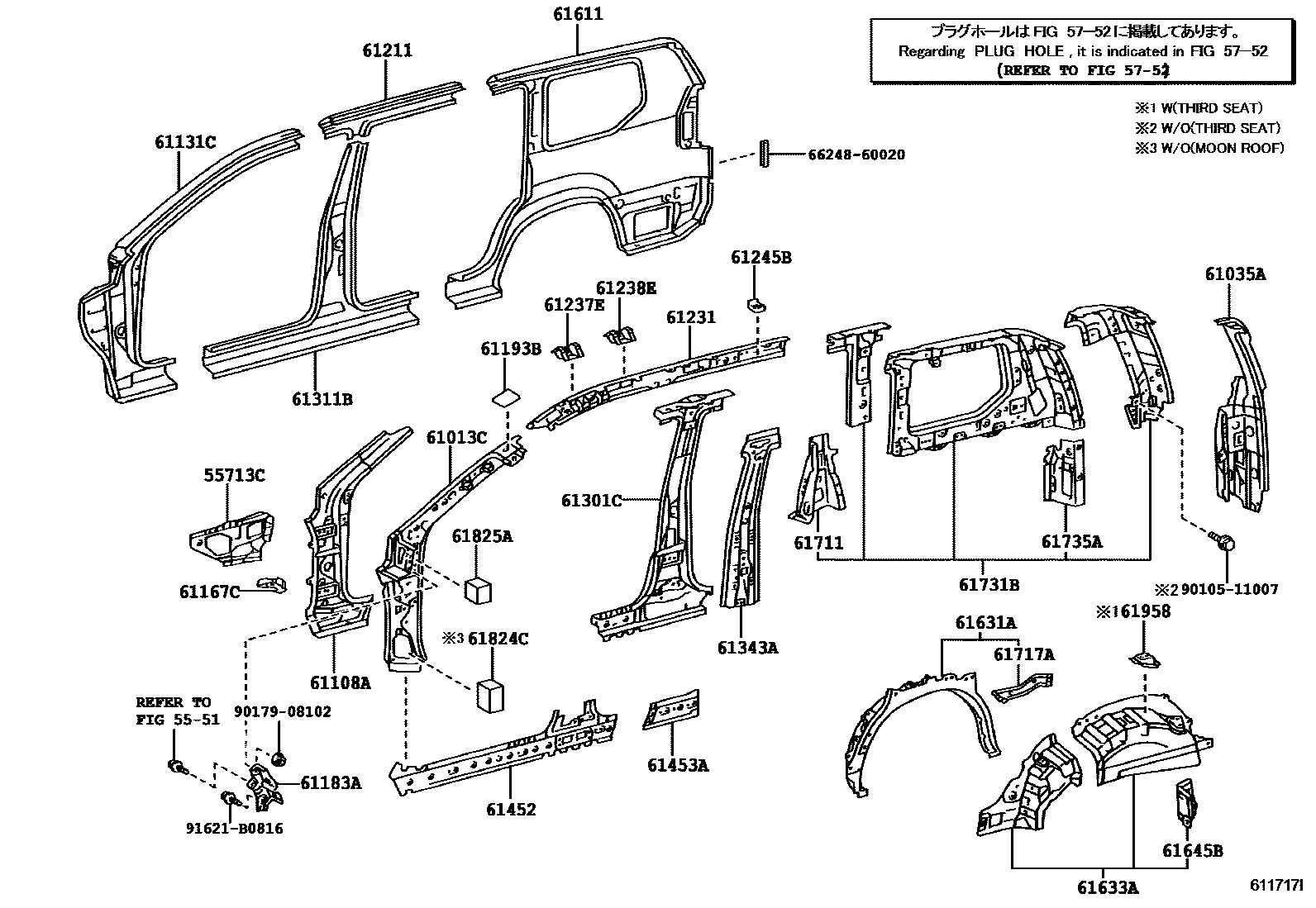

SIDE MEMBER
5551
55713CPANEL, COWL TOP SIDE, RH
5752
61013CPANEL SUB-ASSY, SIDE, INNER RH
61035AREINFORCEMENT SUB-ASSY, BACK DOOR OPENING, RH
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
sub61108-60902
61167CBRACKET, FRONT BODY PILLAR TO COWL TOP, RH
61183ABRACKET, INSTRUMENT PANEL SIDE, NO.2 RH
61193BCOVER, FRONT PILLAR SERVICE HOLE
61211RAIL, ROOF SIDE, OUTER RH
61231RAIL, ROOF SIDE, INNER RH
61237EBRACKET, ASSIST GRIP, NO.1
61238EBRACKET, ASSIST GRIP, NO.2
61245BBRACKET, ASSIST GRIP, NO.3 RH
61301CPILLAR SUB-ASSY, CENTER BODY, OUTER RH
sub61301-60903
61311BPILLAR, CENTER BODY, OUTER RH
61343APILLAR, CENTER BODY, INNER RH
61452PANEL, ROCKER INNER, FRONT RH
61453APANEL, ROCKER INNER, REAR RH
61611PANEL, QUARTER, RH
CANADA GX
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
REAR SEAT-REMOVABLE
61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH
61711PANEL, ROOF SIDE, OUTER RH
61717AREINFORCEMENT, QUARTER PANEL EXTENSION, RH
61735APANEL, ROOF SIDE, INNER REAR RH
61824CPAD, NOISE SHUTTER, NO.1
61825APLATE, NOISE CONTROL, NO.2
61958BRACKET, REAR SEAT LEG, NO.1 RH
REAR SEAT-REMOVABLE
6624860020PROTECTOR, REAR BODY SIDE PANEL, RH
main66248-60020
9010511007
main90105-11007
9017908102
main90179-08102
91621B0816
main91621-B0816
35 parts on this diagram · 2 diagrams in section
