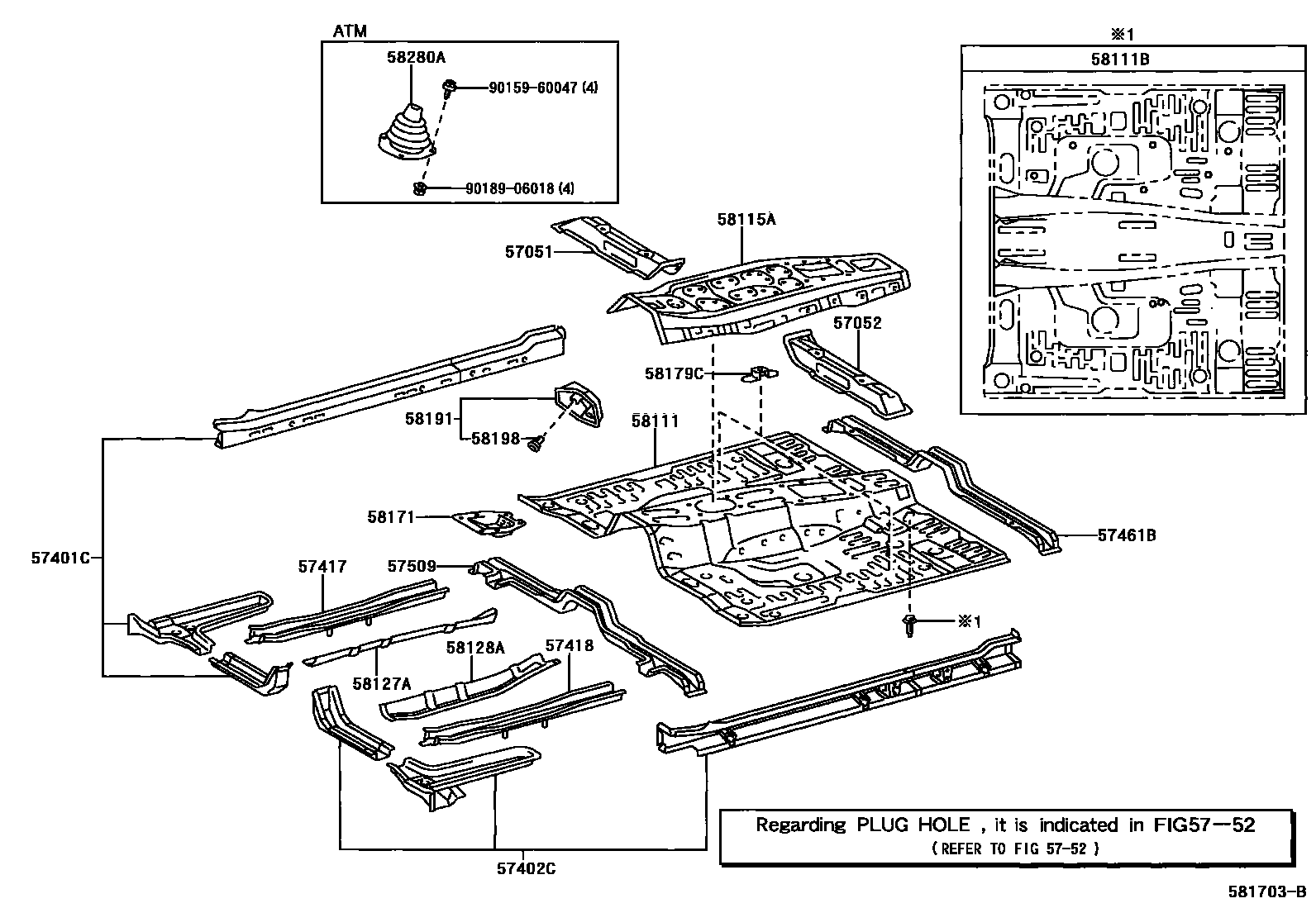

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1 0002 1SIDE STEP

57051MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-35050iUZJ120200211-200807

sub57051-35051

main57051-35051iUZJ120200808

57052MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-35050iUZJ120200211-200807

sub57052-35051

main57052-35051iUZJ120200808

57401CMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-35907iUZJ120200211

57402CMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-35908iUZJ120200211

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-35050iUZJ120200211-200603

sub57417-35051

main57417-35051iUZJ120200604

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57417-35060iUZJ120200211-200603

sub57417-35061

main57417-35061iUZJ120200604

57461BMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1

main57461-35020iUZJ120200211

57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER

main57509-35010iUZJ120200211

5752

58111PAN, FRONT FLOOR

main58111-6A440iUZJ120200211-200503

sub58111-6A441

main58111-6A441iUZJ120200504-200807

sub58111-6A442

main58111-6A442iUZJ120200808

58111BBOLT, WELD(FOR FRONT FLOOR PAN)

main90115-06166iUZJ120200211-200908

58115AREINFORCEMENT, FRONT FLOOR PANEL

main58115-60020iUZJ120200211

58127AREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, RH

main58127-35010iUZJ120200211

58128AREINFORCEMENT, FRONT CROSS TO FRONT PANEL MEMBER, LH

main58128-35010iUZJ120200211-200603

sub58128-35011

main58128-35011iUZJ120200604

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-60020iUZJ120200211

58179CBRACKET, CLAMP FLOOR

main58179-60010iUZJ120200211

58191FOOTREST, FRONT FLOOR

main58190-60080iUZJ120200211

58198CLIP, FOOTREST

main58198-20210iUZJ120200211

58280ABOOT ASSY, SHIFT LEVER

main58280-60230iUZJ120200211

9015960047

main90159-60047

9018906018

main90189-06018

21 parts on this diagram · 2 diagrams in section
