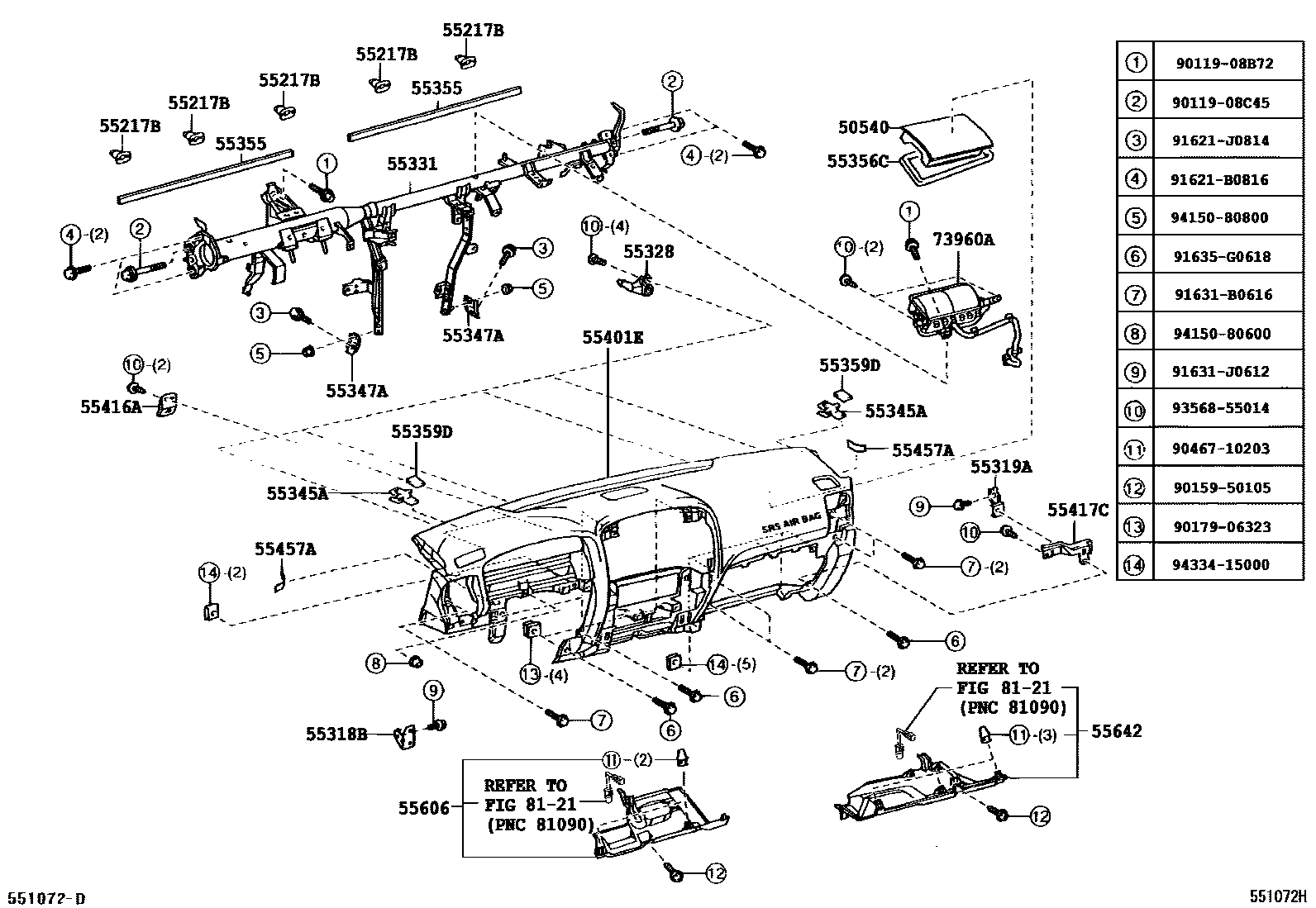

INSTRUMENT PANEL & GLOVE COMPARTMENT
50540DO0R ASSY, AIRBAG PASSENGER
55217BRETAINER, DASH PANEL SILENCER
55318BEXTENSION, INSTRUMENT PANEL
55319AEXTENSION, INSTRUMENT PANEL, NO.2
55328PIN, INSTRUMENT PANEL, NO.1
55345ACLIP, INSTRUMENT PANEL, NO.1
55347ABRACKET, INSTRUMENT PANEL BRACE MOUNTING, NO.1
55355CUSHION, INSTRUMENT PANEL, NO.1
L=620
L=780
55356CCUSHION, INSTRUMENT PANEL, NO.2
55359DCUSHION, INSTRUMENT PANEL, NO.5
55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY
55416ARETAINER, METER HOOD, NO.1
55417CBRACKET, INSTRUMENT PAD, NO.3
55457ASPACER, INSTRUMENT PANEL SAFETY PAD
55606COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1
73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
8121
9011908B72
main90119-08B72
9011908C45
main90119-08C45
9015950105
main90159-50105
9017906323
main90179-06323
9046710203
main90467-10203
91621B0816
main91621-B0816
91621J0814
main91621-J0814
91631B0616
main91631-B0616
91631J0612
main91631-J0612
91635G0618
main91635-G0618
9356855014
main93568-55014
9415080600
main94150-80600
9415080800
main94150-80800
9433415000
main94334-15000
33 parts on this diagram · 4 diagrams in section
