FRONT FENDER APRON & DASH PANEL

53201SUPPORT SUB-ASSY, RADIATOR

main53201-60100iUZJ120200211-200406

sub53201-60101

main53201-60101iUZJ120200407-200502

sub53201-60102

main53201-60102iUZJ120200503-200506

main53201-60103iUZJ120200506-200512

sub53201-60104

main53201-60104iUZJ120200601-200908

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-60030iUZJ120200211-200512

53211CSUPPORT, RADIATOR, RH

main53211-60190iUZJ120200211-200406

sub53211-60191

main53211-60191iUZJ120200407-200501

sub53211-60192

main53211-60192iUZJ120200503-200512

sub53211-60193

main53211-60193iUZJ120200601

53212CSUPPORT, RADIATOR, LH

main53212-60150iUZJ120200211-200404

sub53212-60151

main53212-60151iUZJ120200405-200502

sub53212-60152

main53212-60152iUZJ120200503-200512

sub53212-60153

main53212-60153iUZJ120200601

53217ABRACE, HOOD LOCK SUPPORT

main53209-60080iUZJ120200211-200908

53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER

main53257-35050iUZJ120200211

53268AREINFORCEMENT, RADIATOR MOUNTING, RH

main53268-35040iUZJ120200211-200512

53269AREINFORCEMENT, RADIATOR MOUNTING, LH

main53269-35040iUZJ120200211-200512

53283BREINFORCEMENT, FRONT BODY MOUNTING, NO.2 RH

main53283-35030iUZJ120200211-200512

53284BREINFORCEMENT, FRONT BODY MOUNTING, NO.2 LH

main53284-35020iUZJ120200211-200512

53285BSEAL, RADIATOR SIDE AIR, NO.1

main53285-60080iUZJ120200601

53286BSEAL, RADIATOR SIDE AIR, NO.2

main53286-60080iUZJ120200601

53292ASEAL, RADIATOR SUPPORT, UPPER

main53292-60050iUZJ120200211

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-60830iUZJ120200211-200511

sub53701-60831

main53701-60831iUZJ120200512-200812

sub53701-60832

main53701-60832iUZJ120200901-200908

sub53701-60833

sub90333-01007

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-6A130iUZJ120200211-200408

sub53702-6A131

main53702-6A131iUZJ120200408-200511

sub53702-6A133

main53702-6A132iUZJ120200512-200812

sub53702-6A133

main53702-6A133iUZJ120200901-200908

53704BSUPPORT SUB-ASSY, BATTERY, LH

main53704-35080iUZJ120200211-200408

sub53704-35081

main53704-35081iUZJ120200408-200904

sub53704-35082

main53704-35082iUZJ120200904

sub53704-60050

53728DBRACKET, FENDER APRON, RH

main53728-35060iUZJ120200211

53729GBRACKET, FENDER APRON, LH

main53728-35060iUZJ120200211

53736GSEAL, FRONT FENDER APRON, FRONT RH

main53735-35150iUZJ120200211-200908

sub53735-35151

53737BSEAL, FRONT FENDER APRON, LH

main53736-35150iUZJ120200211-200908

sub53736-35151

53747PLATE, AIR SEALED, RH

main53747-60010iUZJ120200408-200601

53771BSUPPORT, BATTERY CARRIER, RH

main53771-35080iUZJ120200211

53787AGUSSET, FRONT FENDER APRON, LOWER RH

main53787-60010iUZJ120200211

53788AGUSSET, FRONT FENDER APRON, LOWER LH

main53788-60010iUZJ120200211

53795ACOVER, ENGINE ROOM, SIDE

main53795-60020iUZJ120200211-200405

sub53795-60021

main53795-60021iUZJ120200405

53796ACOVER, ENGINE ROOM SIDE, LH

main53796-60020iUZJ120200211

53882FSEAL, FRONT FENDER

main53886-35020iUZJ120200211

53886HSHIELD, FRONT FENDER SPLASH, REAR LH

main53886-35020iUZJ120200211

55101PANEL SUB-ASSY, DASH

main55101-6E050iUZJ120200211-200408

sub55101-6E051

main55101-6E051iUZJ120200409-200908

sub55101-6E062

55133PLATE, FRONT FENDER APRON SET, LOWER RH

main55133-35020iUZJ120200211-200503

sub55133-35021

main55133-35021iUZJ120200504-200808

sub55133-60060

main55133-60060iUZJ120200809

55134PLATE, FRONT FENDER APRON SET, LOWER LH

main55134-35020iUZJ120200211-200808

sub55134-60070

main55134-60070iUZJ120200809

55210INSULATOR ASSY, DASH PANEL

main55210-60130iUZJ120200211-200408

main55210-60131iUZJ120200408

sub55210-60132

55223AINSULATOR, DASH PANEL, OUTER

main55223-60330iUZJ120200211-200408

sub55223-60331

main55223-60331iUZJ120200408-200811

sub55223-60332

main55223-60332iUZJ120200812

55225INSULATOR, DASH PANEL HEAT

main55225-35170iUZJ120200211

sub55225-35171

57021ABRACKET SUB-ASSY, BODY MOUNTING, NO.1 RH

main57021-35060iUZJ120200211

57022ABRACKET SUB-ASSY, BODY MOUNTING, NO.1 LH

main57022-35050iUZJ120200211

57104DMEMBER SUB-ASSY, FRONT CROSS

main57104-35050iUZJ120200211-200506

main57104-35060iUZJ120200506-200808

sub57104-35061

main57104-35061iUZJ120200809

5752

9010506137

main90105-06137

9011906915

main90119-06915

9017806012

main90178-06012

9046706155

main90467-06155

9046706169

main90467-06169

9046707117

main90467-07117

9046708124

main90467-08124

9046708217

main90467-08217

9046710186

main90467-10186

9046710188

main90467-10188

91621J0814

main91621-J0814

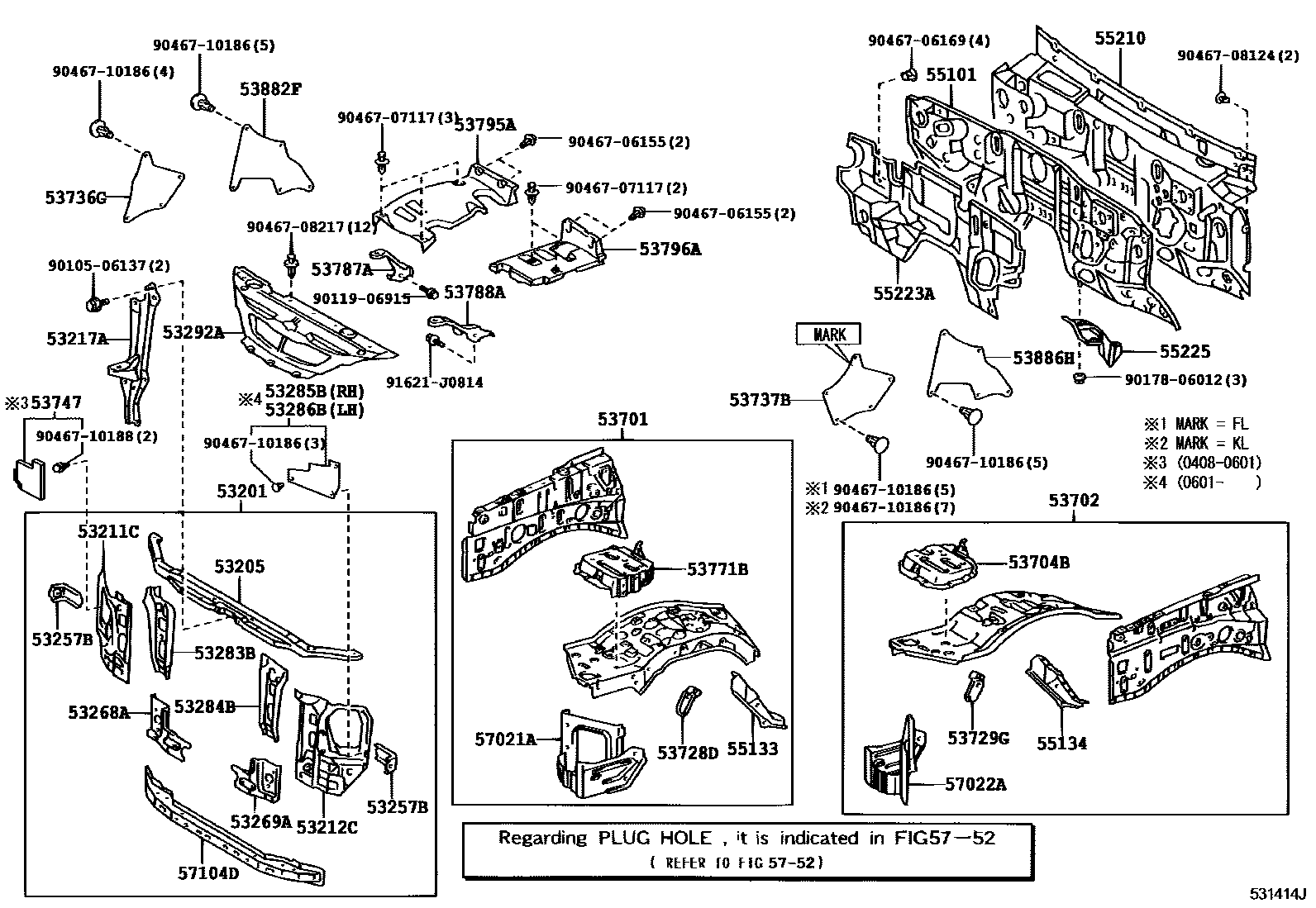

49 parts on this diagram · 1 diagram in section
