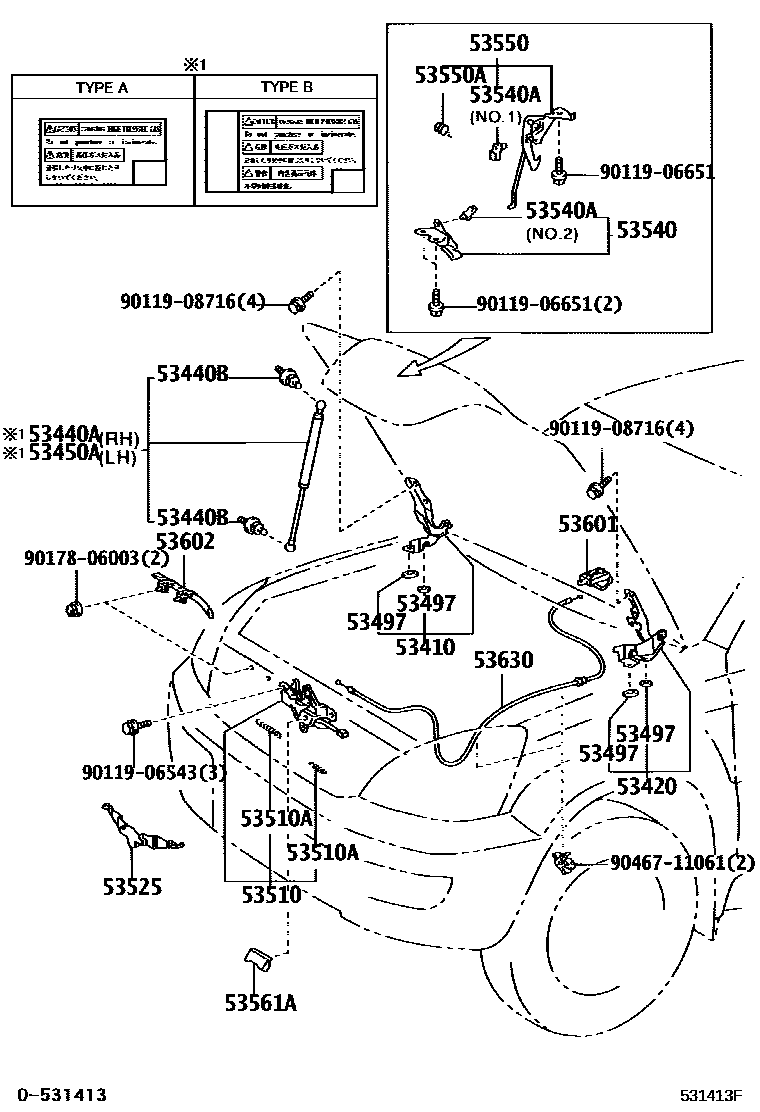

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-35060iUZJ120200211-200212

main53410-48020iUZJ120200212-200908

PAD T=1.0

53420HINGE ASSY, HOOD, LH

main53420-35060iUZJ120200211-200212

main53420-48020iUZJ120200212-200908

PAD T=1.0

53440ASUPPORT ASSY, HOOD, RH

main53440-69055iUZJ120200211-200506

main53440-69065iUZJ120200506-200612

TYPE A:REFER ILLUST.

main53440-69075iUZJ120200612-200801

TYPE B:REFER ILLUST.

53440BBOLT, HOOD SUPPORT, NO.1

main68961-30020×4iUZJ120200211

53450ASUPPORT ASSY, HOOD, LH

main53450-69055iUZJ120200211-200506

main53450-69065iUZJ120200506-200612

TYPE A:REFER ILLUST.

main53450-69075iUZJ120200612-200801

TYPE B:REFER ILLUST.

53497PAD, HOOD HINGE, NO.1

main53497-12070×4iUZJ120200211

T=0.5

main53497-35010×4iUZJ120200211-200309

T=1.0

main53497-50020×4iUZJ120200309

T=1.0

53510LOCK ASSY, HOOD

main53510-60170iUZJ120200211-200508

main53510-60171iUZJ120200508

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iUZJ120200508

WD=0.9,CW=21

main90506-20065iUZJ120200211-200507

WD=2.0,CW=16.0

53525PROTECTOR, HOOD LOCK RELEASE LEVER

main53525-33040iUZJ120200211

53540LEVER ASSY, AUXILIARY CATCH RELEASE

main53540-60010iUZJ120200211

53540ASNAP, AUXILIARY CATCH RELEASE LEVER CONTROL LINK

main69759-20100iUZJ120200211

NO.1

main69759-20110iUZJ120200211

NO.2

53550HOOK ASSY, HOOD AUXILIARY CATCH

main53550-60050iUZJ120200211

53550ASPRING, TORSION(FOR HOOD LOCK HOOK)

main90508-18102iUZJ120200211

53561AGUIDE, HOOD AUXILIARY CATCH HOOK

main53561-30010iUZJ120200211

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-52010-A0iUZJ120200211-200908

IVORY,TRIM0#

main53601-52010-C0iUZJ120200211-200908

BLACK,TRIM1#

53602PROTECTOR SUB-ASSY, HOOD LOCK CONTROL CABLE

main53602-60020iUZJ120200211

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-60100iUZJ120200211

9011906543

main90119-06543

9011906651

main90119-06651

9011908716

main90119-08716

9017806003

main90178-06003

9046711061

main90467-11061

22 parts on this diagram · 1 diagram in section
