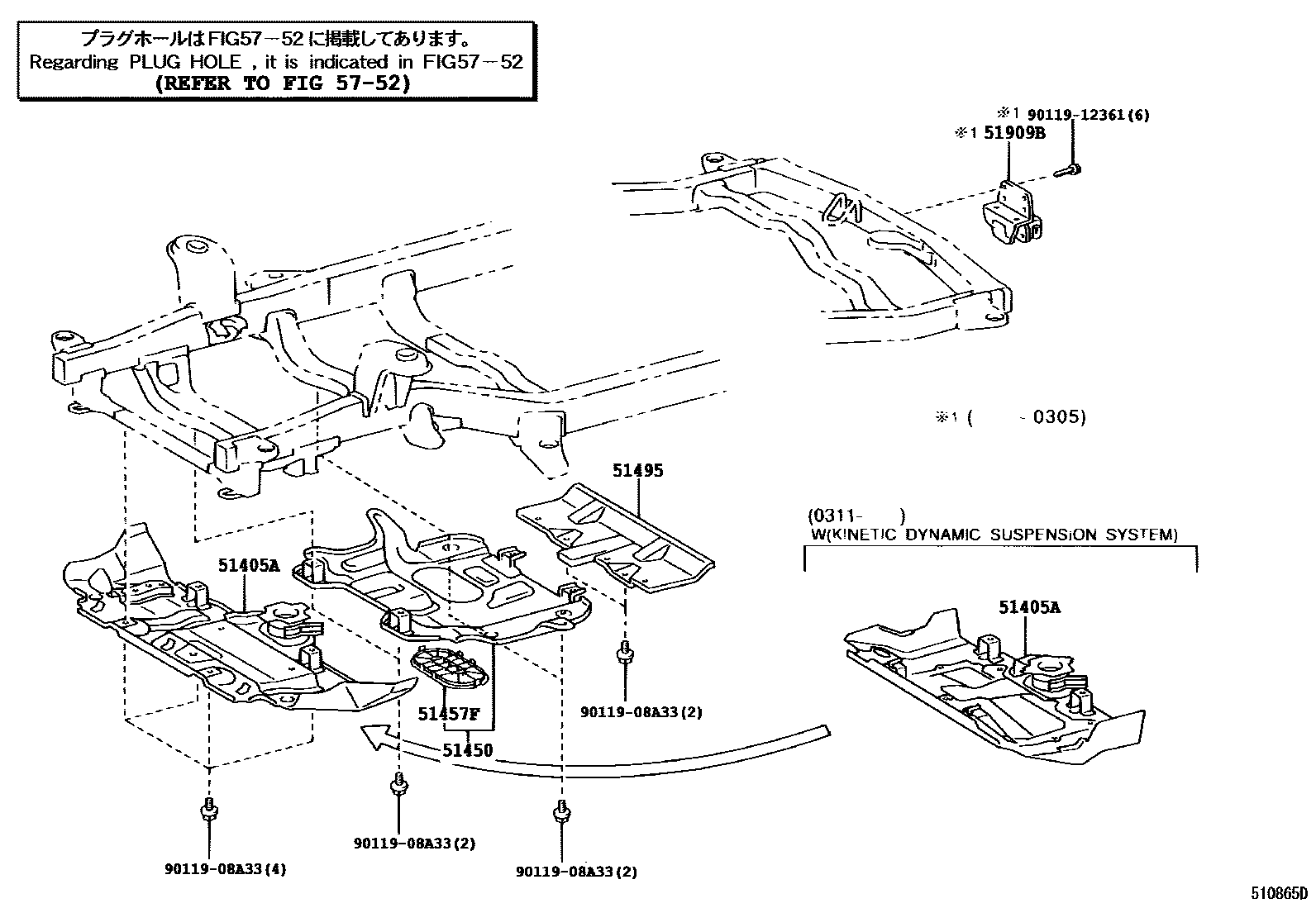

SUSPENSION CROSSMEMBER & UNDER COVER

51405ACOVER SUB-ASSY, ENGINE UNDER, NO.1

main51405-35100iUZJ120200211-200310

sub51405-35101

main51405-35101iUZJ120200310

51450COVER ASSY, ENGINE UNDER, REAR

main51450-35010iUZJ120200211

51457FSEAL, ENGINE UNDER COVER

main51457-35030iUZJ120200211

51495COVER, TRANSMISSION UNDER

main51495-35050iUZJ120200211

51909BTUBE SUB-ASSY, PINTLE HOOK SUPPORT

9011908A33

main90119-08A33

9011912361

main90119-12361

7 parts on this diagram · 1 diagram in section
