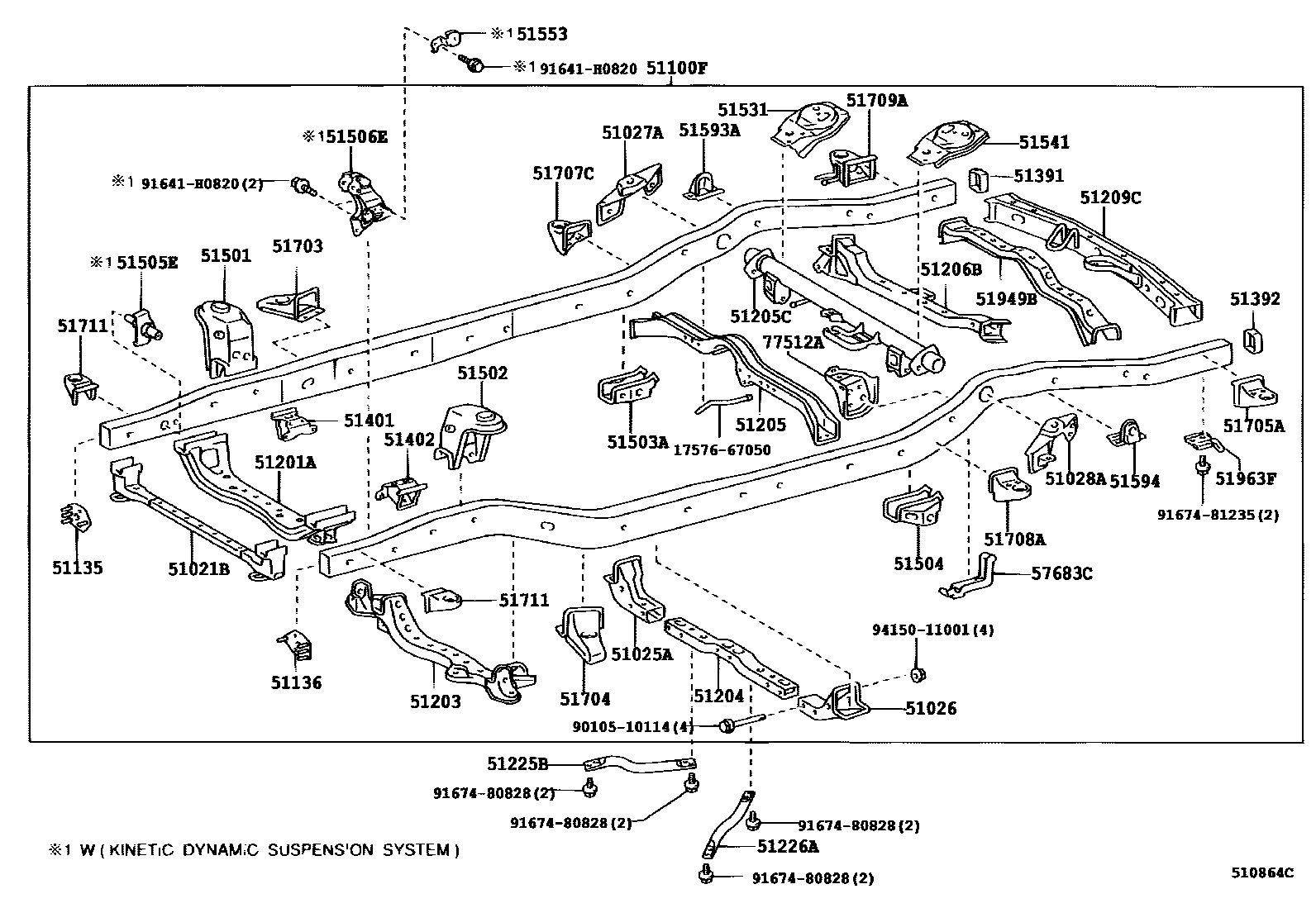

FRAME
51025ABRACKET SUB-ASSY, FRAME NO.3 CROSSMEMBER, RH
sub51025-60030
51026BRACKET SUB-ASSY, FRAME NO.3 CROSSMEMBER, LH
sub51026-60030
51027ABRACKET SUB-ASSY, FRAME NO.4 CROSSMEMBER, RH
51028ABRACKET SUB-ASSY, FRAME NO.4 CROSSMEMBER, LH
51100FFRAME SUB-ASSY
51135PLATE, FRAME SIDE RAIL, RH
51136PLATE, FRAME SIDE RAIL, LH
51201ACROSSMEMBER SUB-ASSY, FRAME, FRONT
51203CROSSMEMBER SUB-ASSY, FRAME, NO.2
51204CROSSMEMBER SUB-ASSY, FRAME, NO.3
sub51203-60270
51205CROSSMEMBER SUB-ASSY, FRAME, NO.4
51205CCROSSMEMBER SUB-ASSY, FRAME, NO.5
sub51205-35281
51206BCROSSMEMBER SUB-ASSY, FRAME, NO.6
51225BBRACKET, FRONT SUSPENSION MEMBER, RH
51226ABRACKET, FRONT SUSPENSION MEMBER, LH
51391GUSSET, FRAME REAR CROSSMEMBER, RH
51392GUSSET, FRAME REAR CROSSMEMBER, LH
51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51501SUPPORT SUB-ASSY, SUSPENSION ARM, RH
51502SUPPORT SUB-ASSY, SUSPENSION ARM, LH
51505EBRACKET SUB-ASSY, FRONT SPRING SUPPORT, RH
51506EBRACKET SUB-ASSY, FRONT SPRING SUPPORT, LH
51553BRACKET, TUBE CLAMP, NO.3
main51553-60030
51593ABRACKET, REAR SPRING BUMPER, RH
51594BRACKET, REAR SPRING BUMPER, LH
51703BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH
51704BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH
51705ABRACKET SUB-ASSY, CAB MOUNTING, NO.3
51707CBRACKET SUB-ASSY, CAB MOUNTING, NO.4 RH
51708ABRACKET SUB-ASSY, CAB MOUNTING, NO.4 LH
51709ABRACKET SUB-ASSY, BODY REAR END MOUNTING
51711BRACKET, FRONT BODY SUPPORT OR MOUNTING, RH
51949BCROSSMEMBER, SPARE WHEEL CARRIER
51963FHOOK, TRANSPORT
sub51095-60030
57683CBRACKET, FUEL TANK MOUNTING
sub57683-35031
77512ABRACKET, FUEL TANK, REAR
sub77512-35121
1757667050BRACKET, MUFFLER CLAMP
main17576-67050
9010510114
main90105-10114
91641H0820
main91641-H0820
9167480828
main91674-80828
9167481235
main91674-81235
9415011001
main94150-11001
49 parts on this diagram · 1 diagram in section
