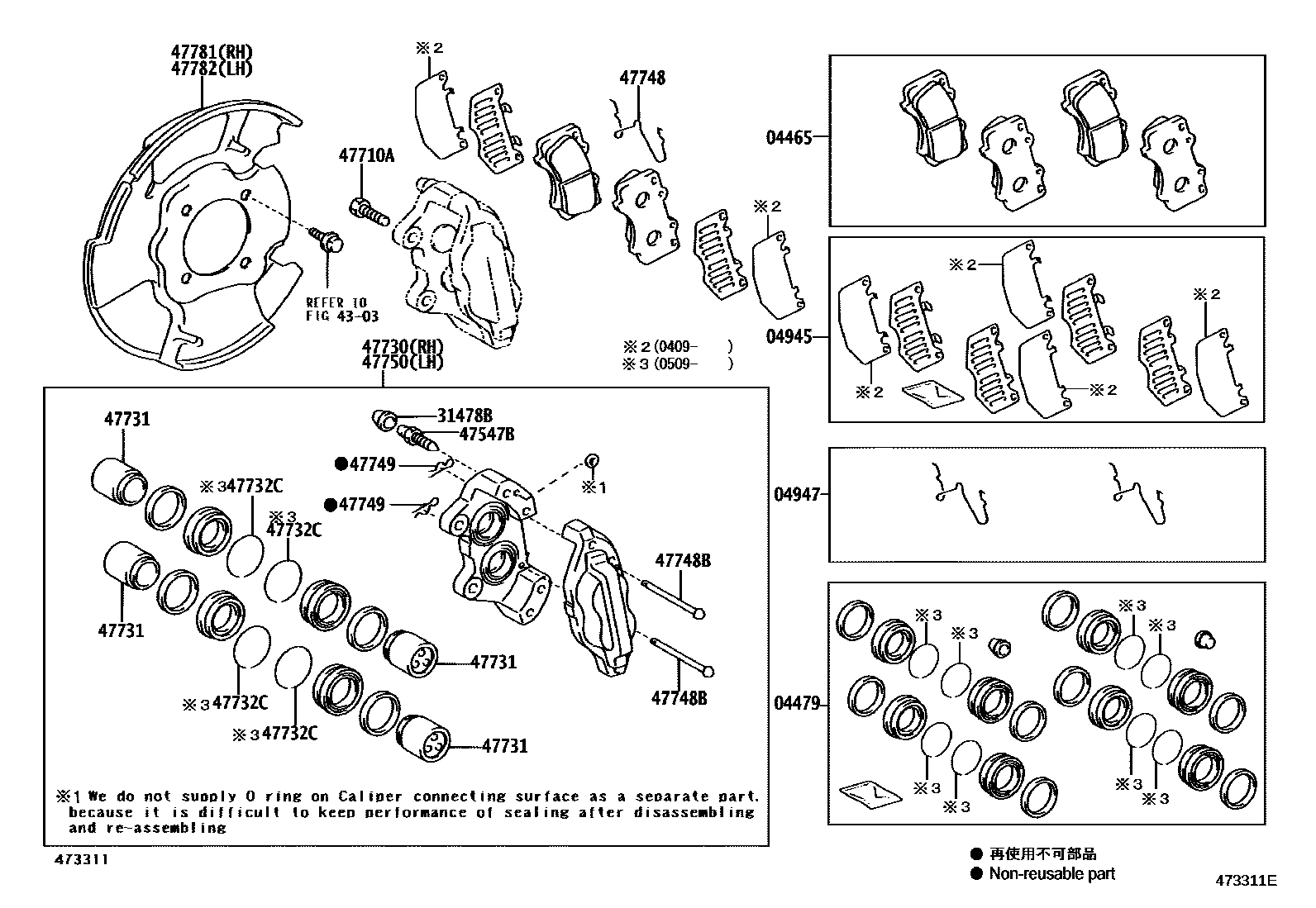

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-35290iUZJ120200211

MARK SUMITOMO PS558H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-60050iUZJ120200510

main04479-60080iUZJ120200211-200509

sub04479-60081

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-35080iUZJ120200211-200409

sub04945-35120

main04945-35120iUZJ120200409

04947FITTING KIT, DISC BRAKE, FRONT

main04947-35050iUZJ120200211

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iUZJ120200211

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-35020iUZJ120200211

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12175iUZJ120200211-200908

*12-1.25PX35-27

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-60130iUZJ120200211-200509

sub47730-60261

main47730-60261iUZJ120200509

47731PISTON, FRONT DISC BRAKE

main47731-35040iUZJ120200211

47732CRING, SET, NO.2(FOR FRONT DISC BRAKE)

main90522-50003iUZJ120200509

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-35010iUZJ120200211

47748BPIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)

main90240-06158iUZJ120200211

L=97.2

47749CLIP, PIN HOLD

main47749-35040iUZJ120200211

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-60130iUZJ120200211-200509

sub47750-60261

main47750-60261iUZJ120200509

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-60120iUZJ120200211-200908

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-60120iUZJ120200211-200908

17 parts on this diagram · 1 diagram in section
