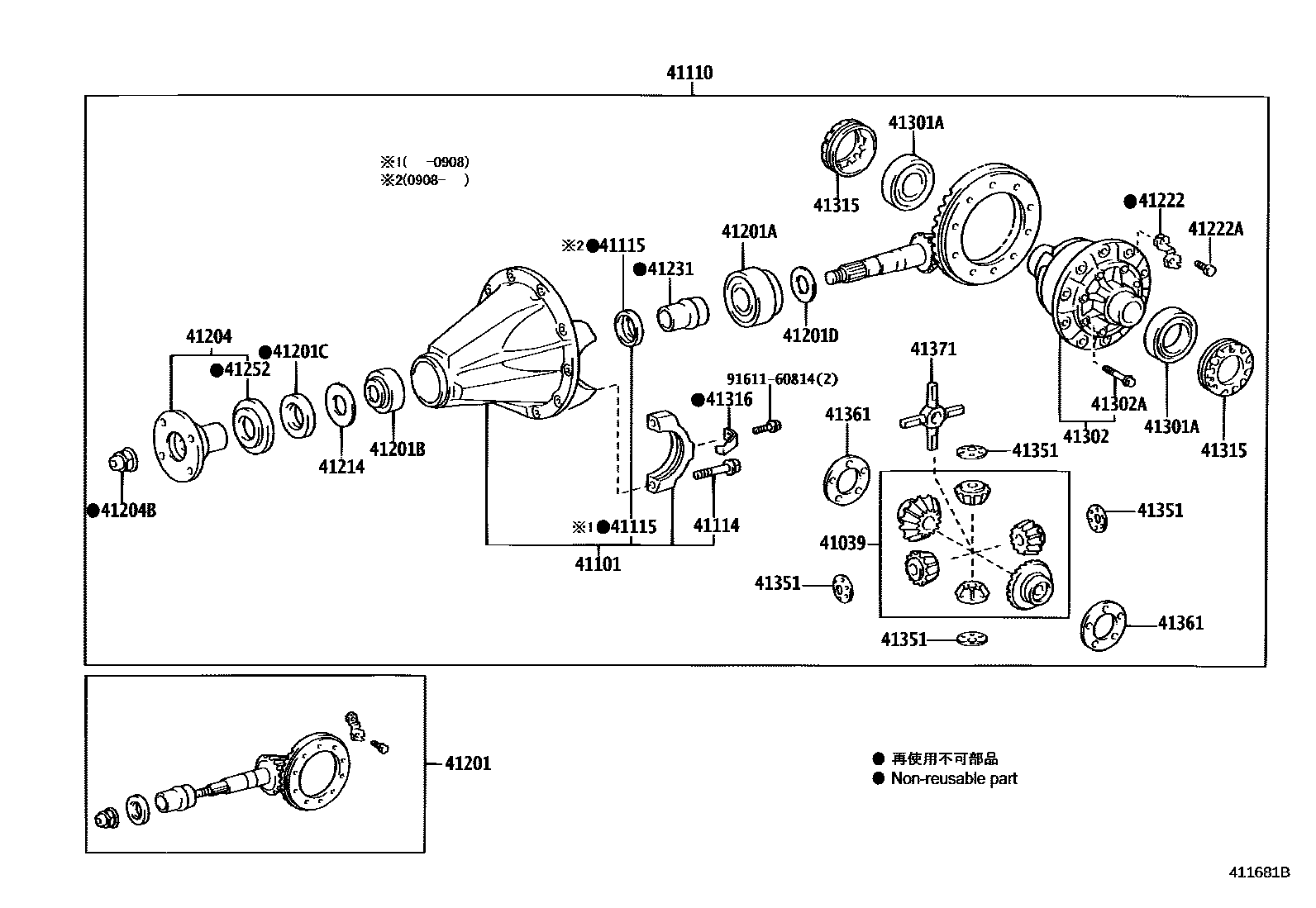

REAR AXLE HOUSING & DIFFERENTIAL
41039GEAR KIT, DIFFERENTIAL, REAR
41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR
41110CARRIER ASSY, DIFFERENTIAL, REAR
41114BOLT, REAR DIFFERENTIAL BEARING CAP
41115RING, DIFFERENTIAL OIL STORAGE
41201FINAL GEAR KIT, DIFFERENTIAL, REAR
*FGR=41:11=3.727
41201ABEARING (FOR REAR DRIVE PINION REAR)
41201BBEARING (FOR REAR DRIVE PINION FRONT)
41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
OD=47,T=1.70
OD=47,T=1.73
OD=47,T=1.76
OD=47,T=1.79
OD=47,T=1.82
OD=47,T=1.85
OD=47,T=1.88
OD=47,T=1.91
OD=47,T=1.94
OD=47,T=1.97
OD=47,T=2.00
OD=47,T=2.03
OD=47,T=2.06
OD=47,T=2.09
OD=47,T=2.12
OD=47,T=2.15
OD=47,T=2.18
OD=47,T=2.21
OD=47,T=2.24,MARK 01
OD=47,T=2.27,MARK 02
OD=47,T=2.30,MARK 03
OD=47,T=2.33,MARK 04
41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
41204BNUT (FOR REAR DRIVE PINION)
OD=39.5
41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK
41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
41302CASE SUB-ASSY, REAR DIFFERENTIAL
sub41302-26010
41302ABOLT(FOR REAR DIFFERENTIAL CASE)
sub90105-10570
41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING
RH
41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT
41351WASHER, REAR DIFFERENTIAL PINION THRUST
41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=0.9,RH
T=1.0,RH
T=1.1,RH
T=1.2,RH
T=1.3,RH
41371SPIDER, REAR DIFFERENTIAL
9161160814
main91611-60814
26 parts on this diagram · 2 diagrams in section
