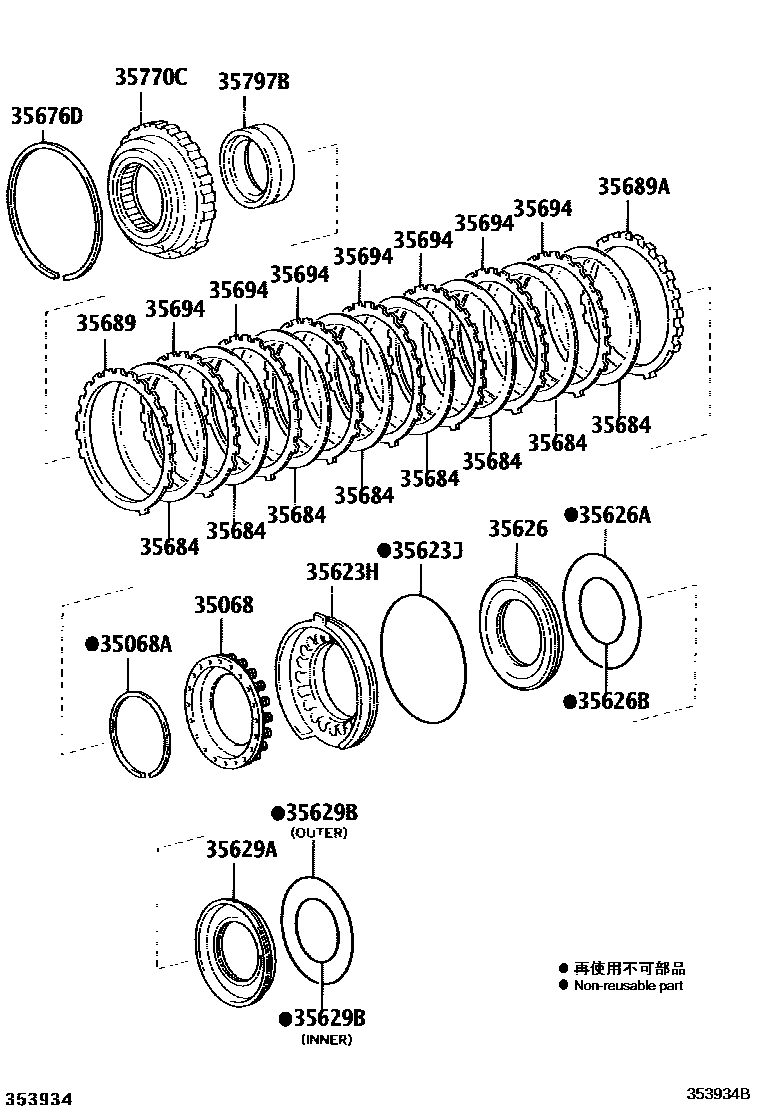

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-60010iUZJ120200211-200908

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-61001iUZJ120200211-200908

35623HPISTON, 1ST & REVERSE BRAKE

main35623-60050iUZJ120200211-200608

main35623-60060iUZJ120200608-200908

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-99087iUZJ120200211-200908

35626SLEEVE, BRAKE REACTION

main35626-60010iUZJ120200211-200908

35626ARING (FOR BRAKE REACTION SLEEVE OUTER)

main90301-99143iUZJ120200211-200908

35626BRING (FOR BRAKE REACTION SLEEVE INNER)

main90301-79003iUZJ120200211-200908

35629APISTON, BRAKE, NO.4

main35629-60010iUZJ120200211-200908

35629BRING, O (FOR BRAKE PISTON NO.4)

main90301-67006iUZJ120200211-200908

INNER

main90301-99151iUZJ120200211-200908

OUTER

35676DRING, HOLE SNAP (FOR 1ST & REVERSE BRAKE FLANGE)

main90521-99131iUZJ120200211-200908

35684DISC, BRAKE, NO.4

main35684-60010×8iUZJ120200211-200908

sub35684-50010

35689FLANGE, BRAKE, NO.4

main35689-60100iUZJ120200211-200908

T=1.8,MARK 0

main35689-60110iUZJ120200211-200908

T=2.0,MARK 2

main35689-60120iUZJ120200211-200908

T=2.2,MARK 4

main35689-60130iUZJ120200211-200908

T=2.4,MARK 6

main35689-60140iUZJ120200211-200908

T=2.6,MARK 8

main35689-60150iUZJ120200211-200908

T=2.8,MARK 10

main35689-60160iUZJ120200211-200908

T=3.0,MARK 12

main35689-60170iUZJ120200211-200908

T=3.2,MARK 14

35689AFLANGE, BRAKE, NO.4

main35689-60090iUZJ120200211-200908

35694PLATE, BRAKE, NO.4

main35694-60010×7iUZJ120200211-200409

main35694-60011×7iUZJ120200409-200908

35770CCLUTCH ASSY, 1WAY NO.3

main35770-50010iUZJ120200311-200908

sub35770-60030

main35770-60010iUZJ120200211-200311

sub35770-60040

35797BRACE, 1 WAY CLUTCH, INNER

main35797-50030iUZJ120200305-200601

main35797-50031iUZJ120200601-200908

main35797-60020iUZJ120200211-200305

16 parts on this diagram · 1 diagram in section
