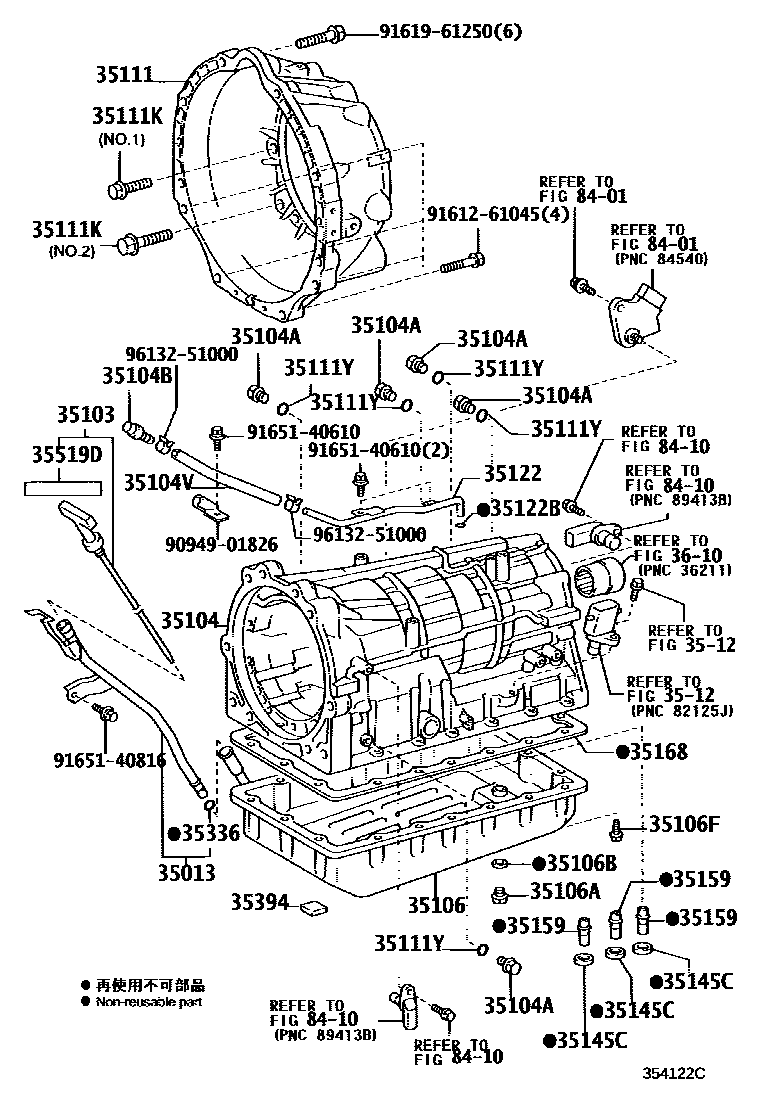

TRANSMISSION CASE & OIL PAN (ATM)

0001 1A750F 0002 1A750F

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-60271iUZJ120200211-200308

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-60211iUZJ120200211-200308

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-60210iUZJ120200211-200308

main35104-60220iUZJ120200308-200409

sub35104-60221

main35104-60221iUZJ120200409-200908

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001iUZJ120200211-200908

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03168iUZJ120200211-200908

NO.2

35104VHOSE (FOR BREATHER PLUG)

main90445-10020iUZJ120200211-200908

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-60150iUZJ120200211-200308

main35106-60180iUZJ120200308-200908

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10011iUZJ120200211-200908

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iUZJ120200308-200908

main35178-50010iUZJ120200211-200308

sub35178-30010

35106FBOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90119-06117iUZJ120200211-200610

sub90119-06173

main90119-06173iUZJ120200610-200908

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-60130iUZJ120200211-200908

35111KBOLT (FOR TRANSMISSION HOUSING & CASE SETTING)

main90119-10232iUZJ120200211-200908

*10-1.5PX35-30,NO.1

main90119-10947iUZJ120200408-200908

*10-1.50PX35-29.3,NO.1

main90119-12255iUZJ120200211-200302

*12-1.75PX45-30,NO.2

main90119-12378iUZJ120200302-200908

*12-1.75PX38-30,NO.2

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196iUZJ120200211-200908

3512

35122TUBE, BREATHER (FOR AUTOMATIC TRANSAXLE)

main35122-60020iUZJ120200211-200908

35122BRING, O (FOR AUTOMATIC TRANSAXLE BREATHER TUBE UNION)

main90301-04014iUZJ120200211-200908

35145CGASKET, TRANSAXLE CASE

main35145-60010iUZJ120200211-200305

sub35145-60020

main35145-60020iUZJ120200305-200908

35159GASKET, BRAKE DRUM

main35159-60010iUZJ120200211-200908

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-60010iUZJ120200211-200908

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09011iUZJ120200211-200308

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011iUZJ120200211-200908

35519DLABEL, AUTOMATIC TRANSMISSION INFORMATION

main35519-20030iUZJ120200211-200308

3610

8401

8410

9094901826

main90949-01826

9161261045

main91612-61045

9161961250

main91619-61250

9165140610

main91651-40610

9165140816

main91651-40816

9613251000

main96132-51000

31 parts on this diagram · 2 diagrams in section
