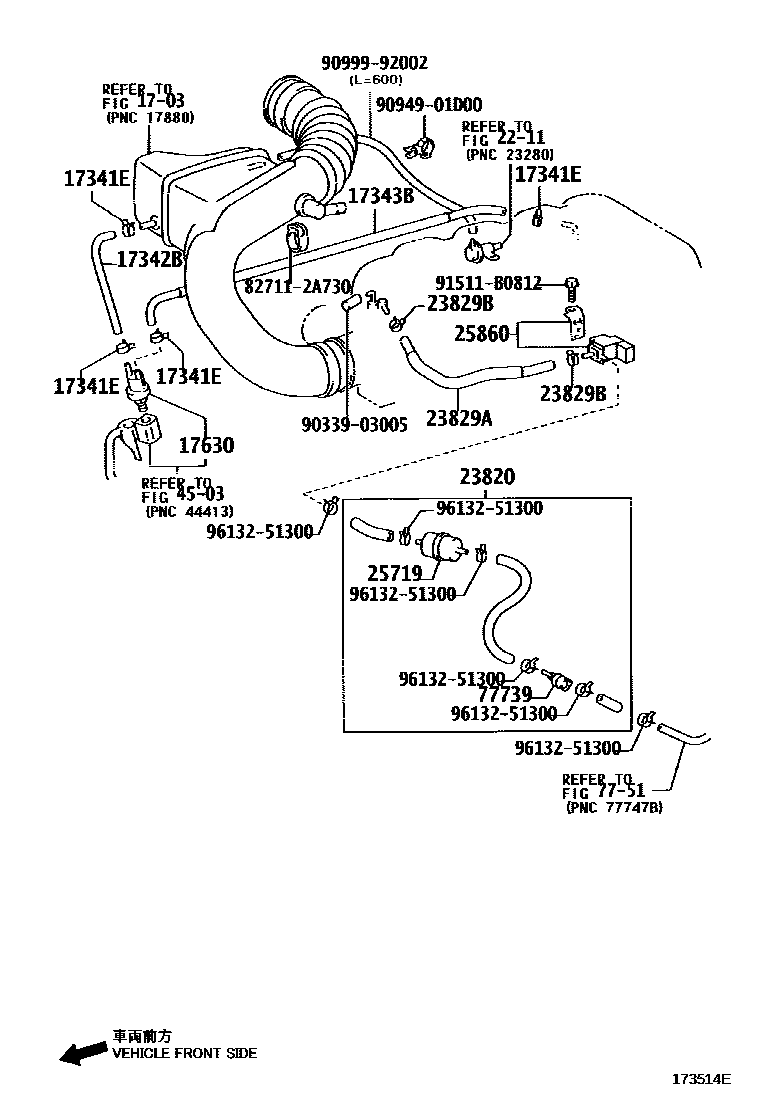

VACUUM PIPING

0001 1 0002 1 0003 1

1703

17341ECLIP, NO.1(FOR IDLE-UP HOSE)

main96132-51000i2UZFE..UZJ120200211-200411

main96132-51000i2UZFE..UZJ120200411

NO.1

main96132-51100i2UZFE..UZJ120200411

NO.2

17342BHOSE, NO.2(FOR IDLE-UP)

main17342-50170i2UZFE..UZJ120200211

17343BHOSE, NO.3(FOR IDLE-UP)

main17343-50150i2UZFE..UZJ120200211-200411

main17343-50170i2UZFE..UZJ120200411

17630VALVE ASSY, AIR CONTROL

main17630-16040i2UZFE..UZJ120200211-200908

2211

23820HOSE ASSY, FUEL VAPOR FEED

main23820-50140i2UZFE..UZJ120200211-200508

sub23820-50141

main23820-50141i2UZFE..UZJ120200508

23829AHOSE, FUEL VAPOR FEED

main23829-50070i2UZFE..UZJ120200211-200411

main23829-50160i2UZFE..UZJ120200411-200505

sub23829-50161

main23829-50161i2UZFE..UZJ120200505

23829BCLIP(FOR FUEL VAPOR FEED HOSE)

main96132-51300i2UZFE..UZJ120200211

25719TANK, VACUUM SURGE

main25719-50040i2UZFE..UZJ120200211

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-46010i2UZFE..UZJ120200411

NO.2

main25860-50160i2UZFE..UZJ120200211-200411

main25860-50160i2UZFE..UZJ120200411

NO.1

4503

7751

77739VALVE, EVAP SERVICE PORT

main77739-06010iUZJ120200211-200508

sub77739-33010

827112A730WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2A730

9033903005

main90339-03005

9094901D00

main90949-01D00

9099992002

main90999-92002

91511B0812

main91511-B0812

9613251300

main96132-51300

20 parts on this diagram · 3 diagrams in section
