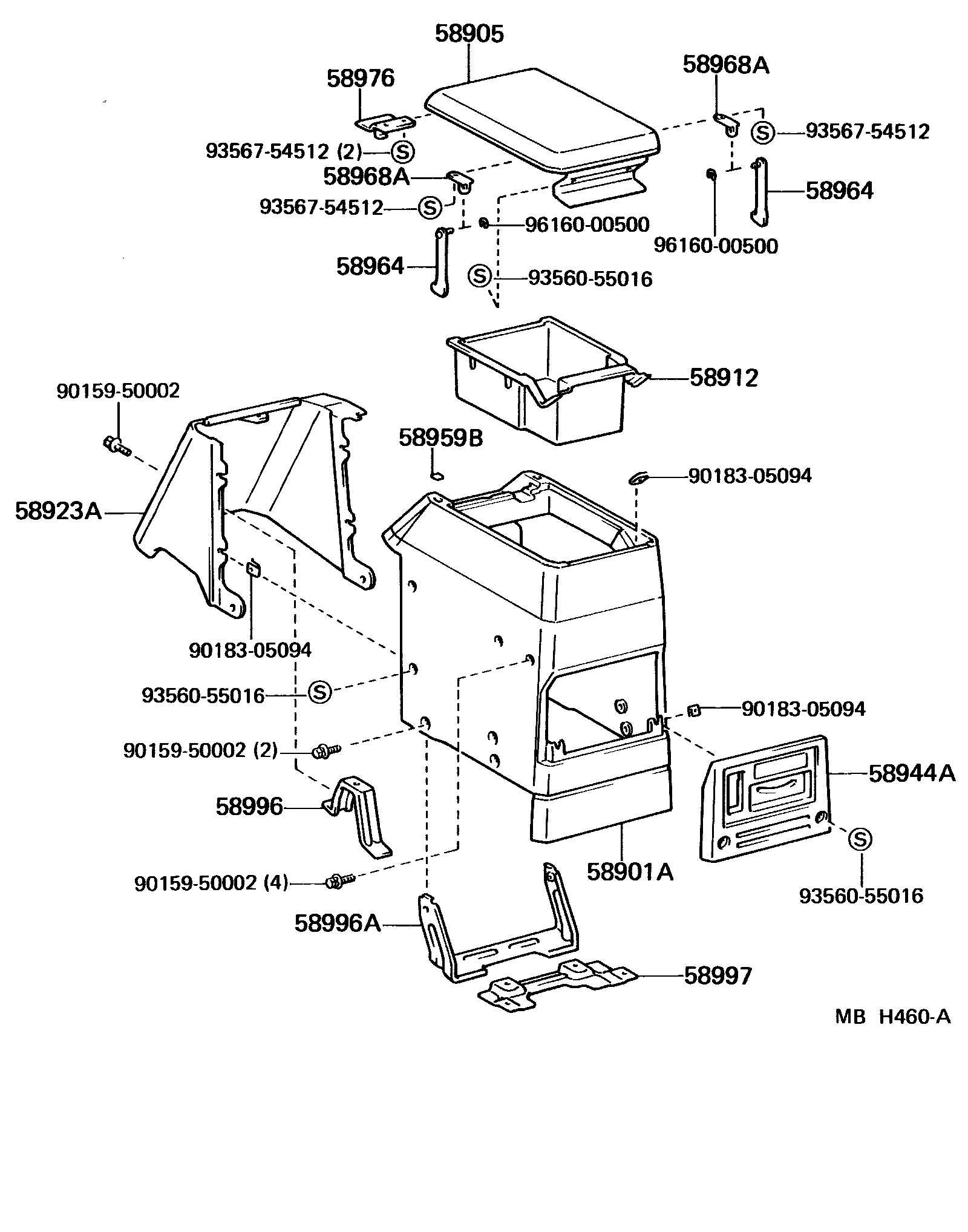

CONSOLE BOX & BRACKET
58901ABOX SUB-ASSY, CONSOLE, REAR
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
58912BOX, REAR CONSOLE, NO.2
58923APANEL, CONSOLE REAR END
58944ACOVER, CONSOLE, REAR
58959BCUSHION, CONSOLE COMPARTMENT DOOR
58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
RH
LH
58968ABRACKET, CONSOLE DOOR STOPPER
58976STRIKER, CONSOLE COMPARTMENT DOOR LOCK
sub58908-12080
58996BRACKET, CONSOLE BOX MOUNTING, NO.1
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
58997BRACKET, CONSOLE BOX MOUNTING, NO.3
9015950002
main90159-50002
9018305094
main90183-05094
9356055016
main93560-55016
9356754512
main93567-54512
9616000500
main96160-00500
17 parts on this diagram · 1 diagram in section
