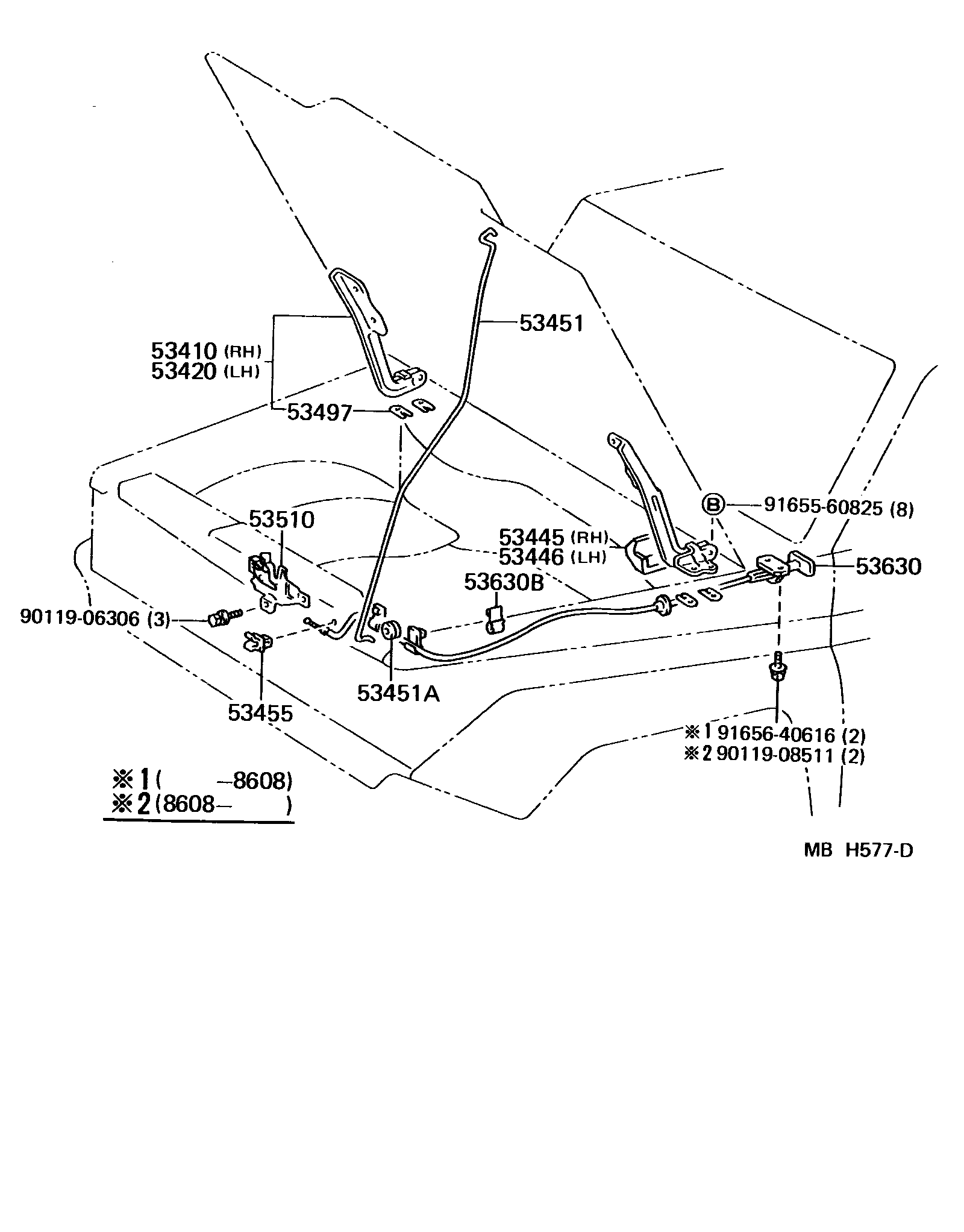

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-90K00iBJ70198411-198707

sub53410-90K01

53420HINGE ASSY, HOOD, LH

main53420-90K00iBJ70198411-198707

sub53420-90K01

53445COVER, HOOD HINGE, RH

main53445-90K00iBJ70198411-198510

53446COVER, HOOD HINGE, LH

main53446-90K00iBJ70198411-198510

53451ROD, HOOD SUPPORT

main53451-90K01iBJ70198411-198707

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-15296iBJ70198411-198707

53455CLAMP, HOOD SUPPORT ROD

main53455-14020iBJ70198411-198707

53497PAD, HOOD HINGE, NO.1

main53497-90K00iBJ70198411-198707

T=0.5

sub53497-90K02

53510LOCK ASSY, HOOD

main53510-90K01iBJ70198411-198707

sub53510-60070

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-90K01iBJ70198411-198608

main53630-90K02iBJ70198608-198707

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main69749-12010iBJ70198411-198707

9011906306

main90119-06306

9011908511

main90119-08511

9165560825

main91655-60825

9165640616

main91656-40616

15 parts on this diagram · 1 diagram in section
