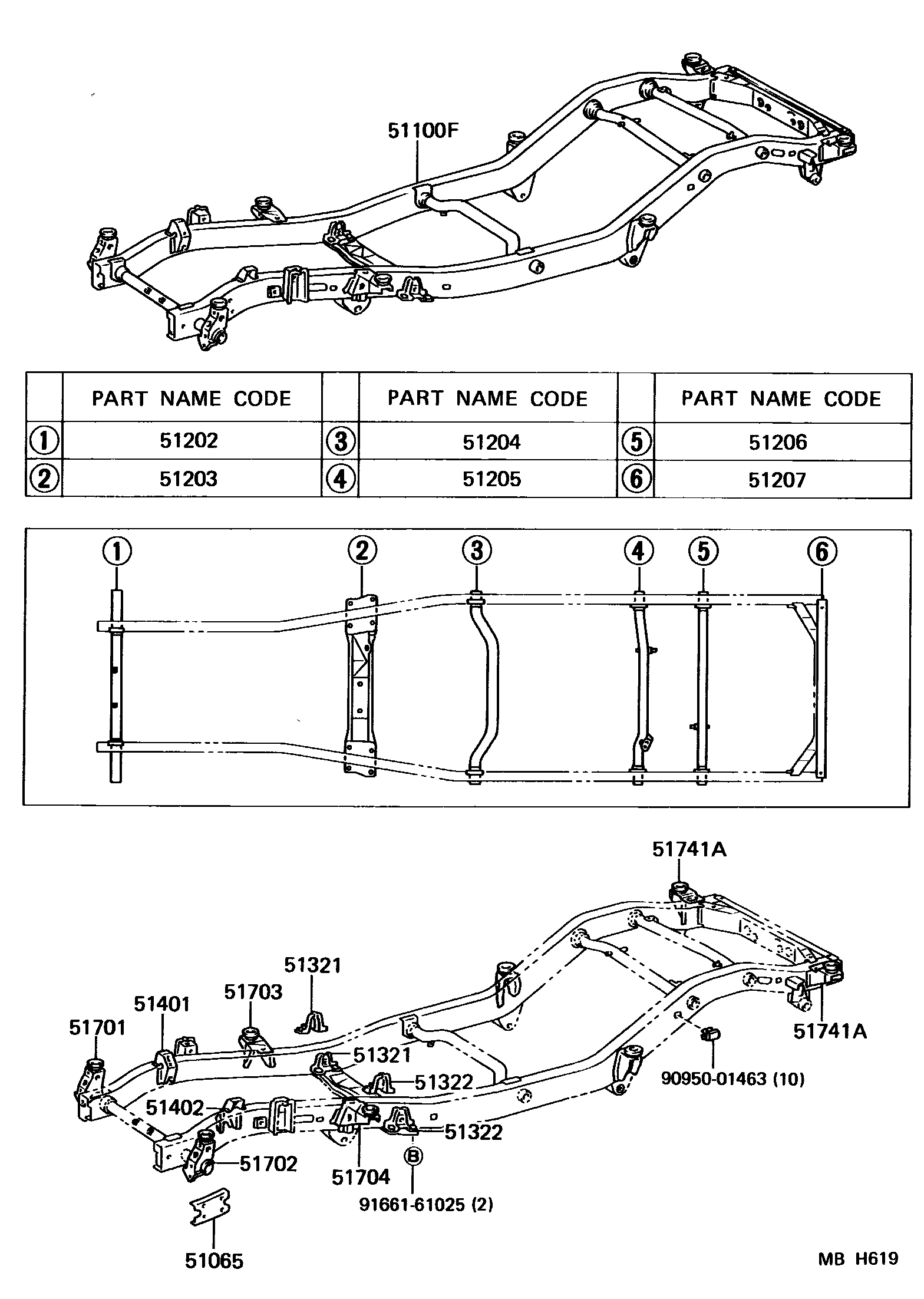

FRAME
51065SUPPORT SUB-ASSY, STEERING GEAR BOX
51100FFRAME SUB-ASSY
51203CROSSMEMBER SUB-ASSY, FRAME, NO.2
51204CROSSMEMBER SUB-ASSY, FRAME, NO.3
51205CROSSMEMBER SUB-ASSY, FRAME, NO.4
51206CROSSMEMBER SUB-ASSY, FRAME, NO.5
51207CROSSMEMBER SUB-ASSY, FRAME, NO.6
51321GUSSET, CROSSMEMBER, NO.2 RH
51322GUSSET, CROSSMEMBER, NO.2 LH
51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51701BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH
51702BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH
51703BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH
51704BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH
51741ABRACKET, BODY MOUNTING
9095001463
9166161025
19 parts on this diagram · 1 diagram in section
