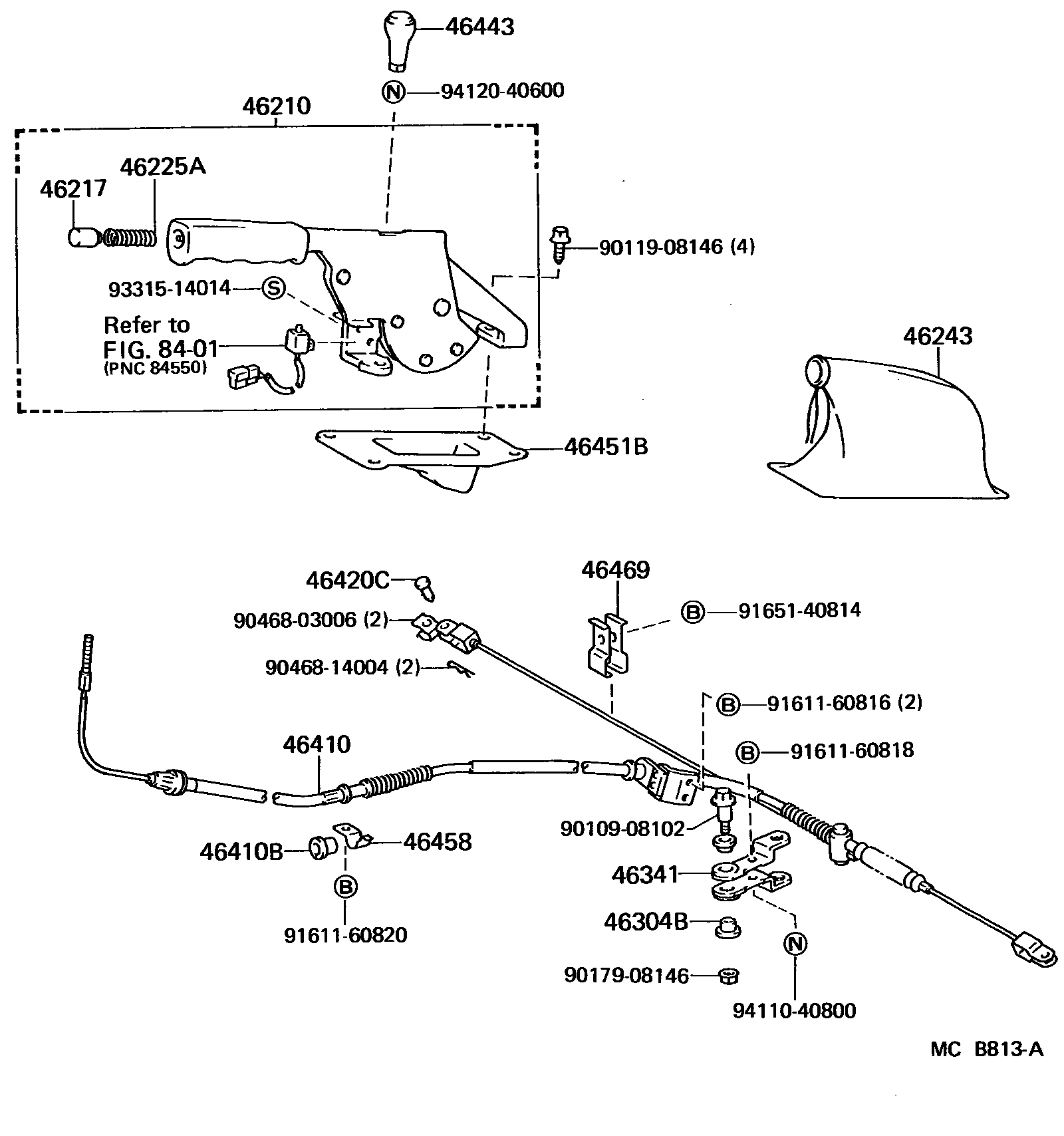

PARKING BRAKE & CABLE

46210LEVER ASSY, PARKING BRAKE

main46210-60060-03iBJ70198411-198707

GRAY,SHADOW GRAY

sub46210-60061

main46210-60060-06iBJ70198411-198707

BROWN,SEPIA BROWN

sub46210-60061

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-10020-33iBJ70198411-198707

GRAY,GRAY

sub46217-10020

sub46217-20020

main46217-10020-56iBJ70198411-198707

BROWN,BROWN

sub46217-10020

sub46217-20020

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10745iBJ70198411-198707

46243COVER, PARKING BRAKE LEVER

main46243-60060-01iBJ70198411-198707

BLACK,BLACK

sub46243-60060

main46243-60060-06iBJ70198411-198707

BROWN,SEPIA BROWN

sub46243-60060

46304BBUSH(FOR PARKING BRAKE EQUALIZER)

main90385-12029iBJ70198411-198707

46341EQUALIZER, PARKING BRAKE

main46341-35030iBJ70198411-198707

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-60230iBJ70198411-198707

sub46410-60240

46410BGROMMET(FOR PARKING BRAKE FRONT CABLE)

main90480-17158iBJ70198411-198707

46420CPIN, W/HOLE(FOR PARKING BRAKE CABLE)

main90240-08042iBJ70198411-198707

46443CAP, CABLE ADJUSTING

main46443-12020iBJ70198411-198707

46451BBRACKET, PARKING BRAKE CABLE SUPPORT

main46451-60060iBJ70198510-198608

main46451-60070iBJ70198411-198707

46458RETAINER, CABLE

main46458-30020iBJ70198411-198707

46469LEVER, CABLE GUIDE SUPPORT

main46469-60020iBJ70198411-198707

8401

9010908102

main90109-08102

9011908146

main90119-08146

9017908146

main90179-08146

9046803006

main90468-03006

9046814004

main90468-14004

9161160816

main91611-60816

9161160818

main91611-60818

9161160820

main91611-60820

9165140814

main91651-40814

9331514014

main93315-14014

9411040800

main94110-40800

9412040600

main94120-40600

26 parts on this diagram · 1 diagram in section
