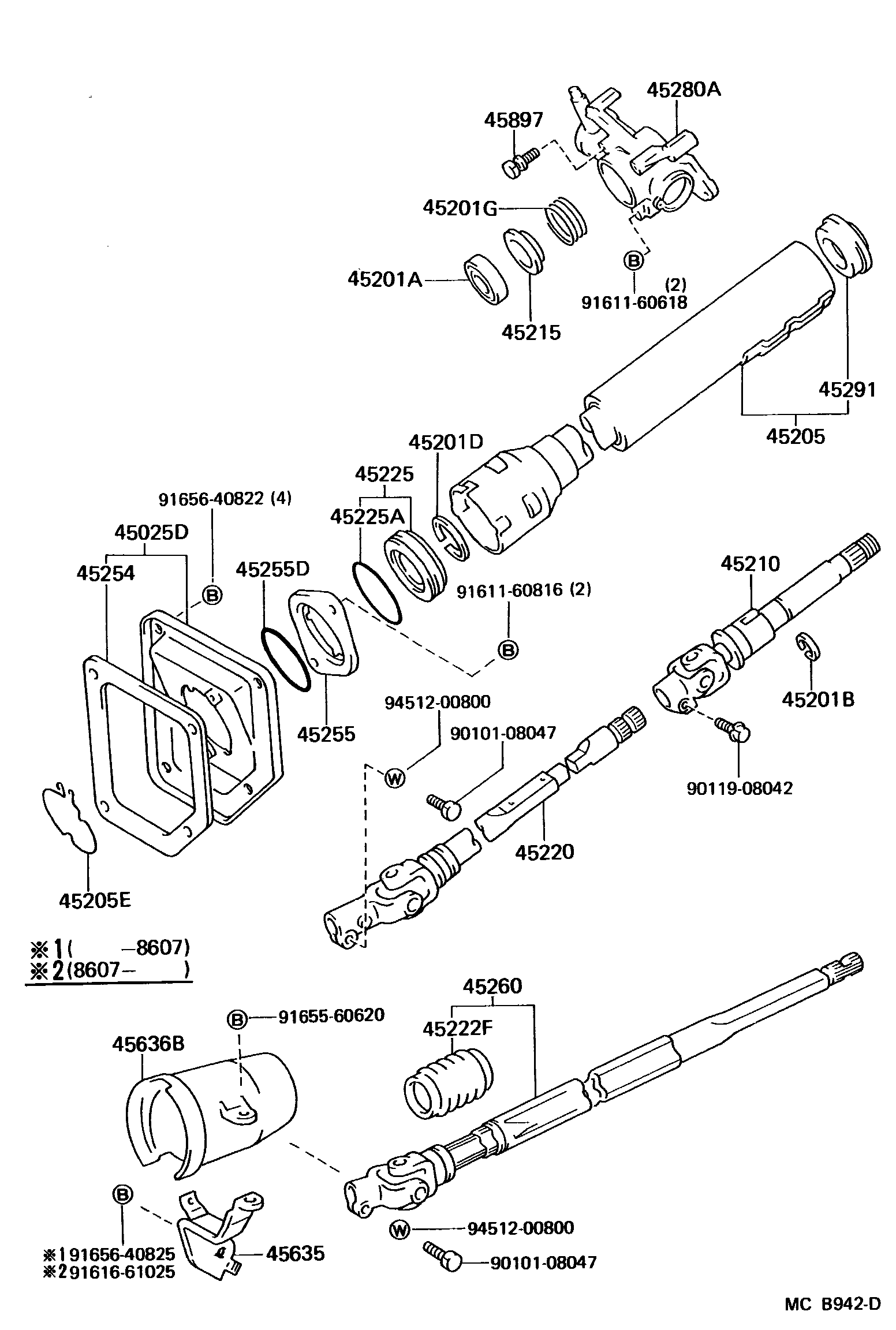

STEERING COLUMN & SHAFT

0001 1 0002 1

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-60060iBJ70198411-198707

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-28001iBJ70198411-198707

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iBJ70198411-198707

T=1.20

45201DRING(FOR STEERING MAIN SHAFT)

main96152-00300iBJ70198411-198707

45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)

main90501-45011iBJ70198411-198707

45205TUBE SUB-ASSY, STEERING COLUMN

main45870-60050iBJ70198411-198707

45205ERING, SNAP(FOR STEERING COLUMN TUBE)

main90521-01002iBJ70198411-198707

45210SHAFT ASSY, STEERING MAIN

main45210-60060iBJ70198411-198707

sub45210-60061

45215COLLAR, MAIN SHAFT BEARING THRUST

main45215-22011iBJ70198411-198707

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-60100iBJ70198411-198707

sub45220-60101

45222FCOVER, DUST

main45222-60030iBJ70198411-198511

main45222-60031iBJ70198511-198707

45225BLOCK, BEARING

main45225-60010iBJ70198411-198707

45225ARING, O(FOR BEARING BLOCK)

main96711-24053iBJ70198411-198707

45254SHIELD, STEERING COLUMN HOLE

main45254-60050iBJ70198411-198707

45255PLATE, STEERING COLUMN HOLE COVER

main45255-60010iBJ70198411-198707

45255DRING, O(FOR STEERING COLUMN HOLE COVER PLATE)

main90301-60122iBJ70198411-198707

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-60050iBJ70198411-198707

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-60180iBJ70198411-198608

main45280-60181iBJ70198608-198707

45291SEAL, MAIN SHAFT UPPER DUST

main45282-22010iBJ70198510-198707

main45282-60010iBJ70198411-198510

45635SUPPORT, INTERMEDIATE LINK JOINT PROTECTOR

main45635-60020iBJ70198411-198707

45636BPROTECTOR, INTERMEDIATE LINK JOINT

main45636-60061iBJ70198411-198707

45897BOLT, STEERING LOCK SET

main45897-14010iBJ70198411-198707

sub45897-12030

9010108047

main90101-08047

9011908042

main90119-08042

9161160618

main91611-60618

9161160816

main91611-60816

9161661025

main91616-61025

9165560620

main91655-60620

9165640822

main91656-40822

9165640825

main91656-40825

9451200800

main94512-00800

31 parts on this diagram · 2 diagrams in section
