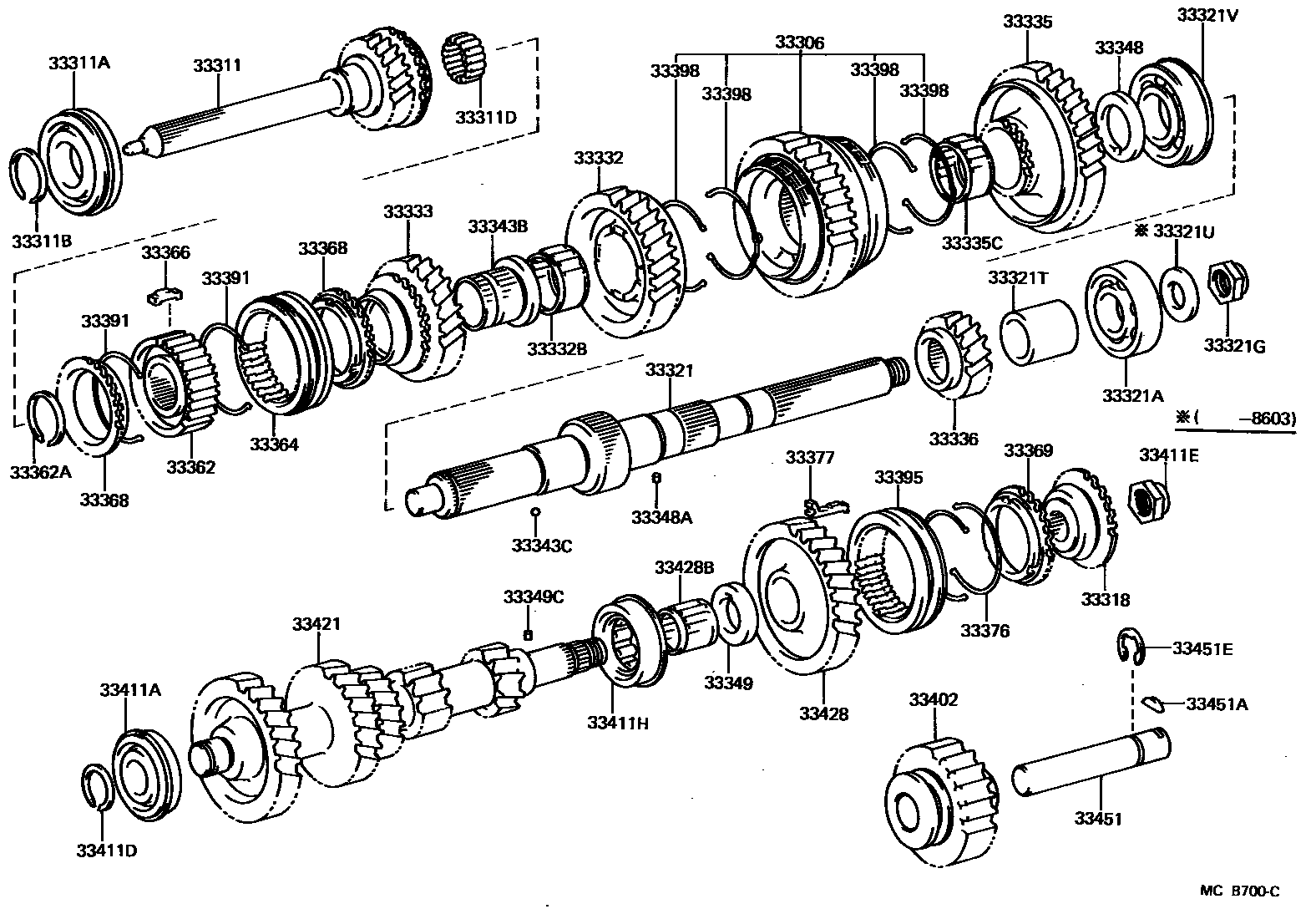

TRANSMISSION GEAR (MTM)
33311SHAFT, INPUT
33311ABEARING (FOR INPUT SHAFT FRONT)
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
T=3.31-3.42,T=3.31-3.42
T=3.20-3.31,T=3.20-3.31
33311DBEARING, INPUT SHAFT
33321SHAFT, OUTPUT
33321GNUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)
33321TSPACER (FOR OUTPUT SHAFT)
33321UWASHER (FOR MANUAL TRANSMISSION OUTPUT SHAFT SET)
33321VBEARING (FOR OUTPUT SHAFT CENTER)
33332GEAR, 2ND
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
33333GEAR, 3RD
33335GEAR, 1ST
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
33336GEAR, 5TH
33343BBUSH, 3RD GEAR
33343CBALL (FOR 3RD GEAR BUSH)
33348WASHER, 1ST GEAR THRUST
33348APIN OR BALL (FOR 1ST GEAR THRUST WASHER)
33349WASHER, 5TH GEAR THRUST
33349CPIN (FOR 5TH GEAR THRUST WASHER)
33362HUB, TRANSMISSION CLUTCH, NO.2
33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)
T=2.40-2.45,T=2.40
T=2.45-2.50,T=2.45
T=2.50-2.55,T=2.50
T=2.55-2.60,T=2.55
T=2.60-2.65,T=2.60
T=2.65-2.70,T=2.65
33366KEY, SYNCHROMESH SHIFTING, NO.2
33368RING, SYNCHRONIZER, NO.2
33369RING, SYNCHRONIZER, NO.3
33376SPRING, SYNCHROMESH SHIFTING KEY (FOR NO.3 CLUTCH HUB)
33377KEY, SYNCHROMESH SHIFTING (FOR NO.3 CLUTCH HUB)
33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33398HOLDER, SYNCHRONIZER RING
33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)
33411DRING, COUNTER GEAR FRONT BEARING SNAP, NO.1
T=2.05,MARK 0,T=2.05
T=2.15,MARK 2,T=2.15
T=2.25,MARK 4,T=2.25
33411ENUT(FOR COUNTER GEAR SHAFT)
33411HBEARING OR ROLLER(FOR COUNTER GEAR REAR)
33428GEAR, COUNTERSHAFT 5TH
33428BBEARING (FOR COUNTER 5TH GEAR)
33451SHAFT, REVERSE IDLER GEAR
33451AKEY, WOODRUFF (FOR REVERSE IDLER GEAR SHAFT)
33451ERING, E (FOR REVERSE IDLER GEAR SHAFT)
46 parts on this diagram · 1 diagram in section
