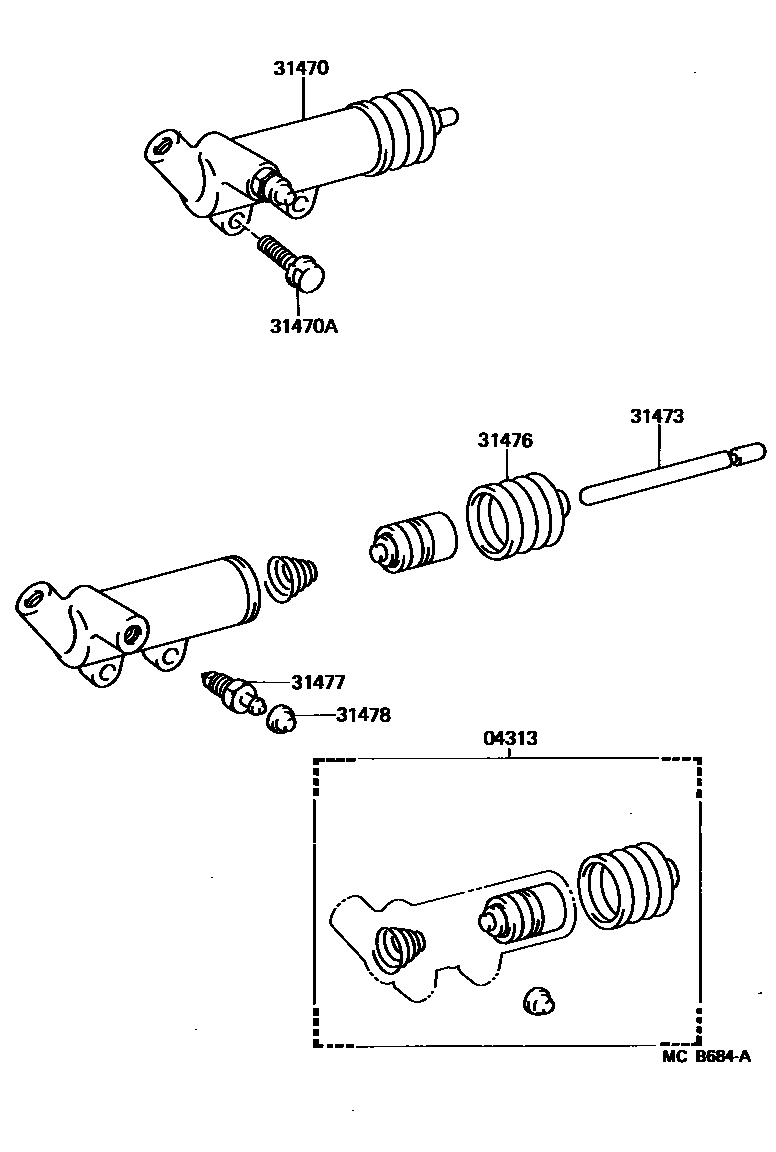

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-60060iBJ70198411-198707

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-60120iBJ70198411-198510

main31470-60130iBJ70198510-198707

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60828iBJ70198411-198707

*8-1.25PX28-28

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-60100iBJ70198411-198510

main31473-60110iBJ70198510-198707

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-60050iBJ70198411-198707

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iBJ70198411-198707

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iBJ70198411-198707

7 parts on this diagram · 1 diagram in section
