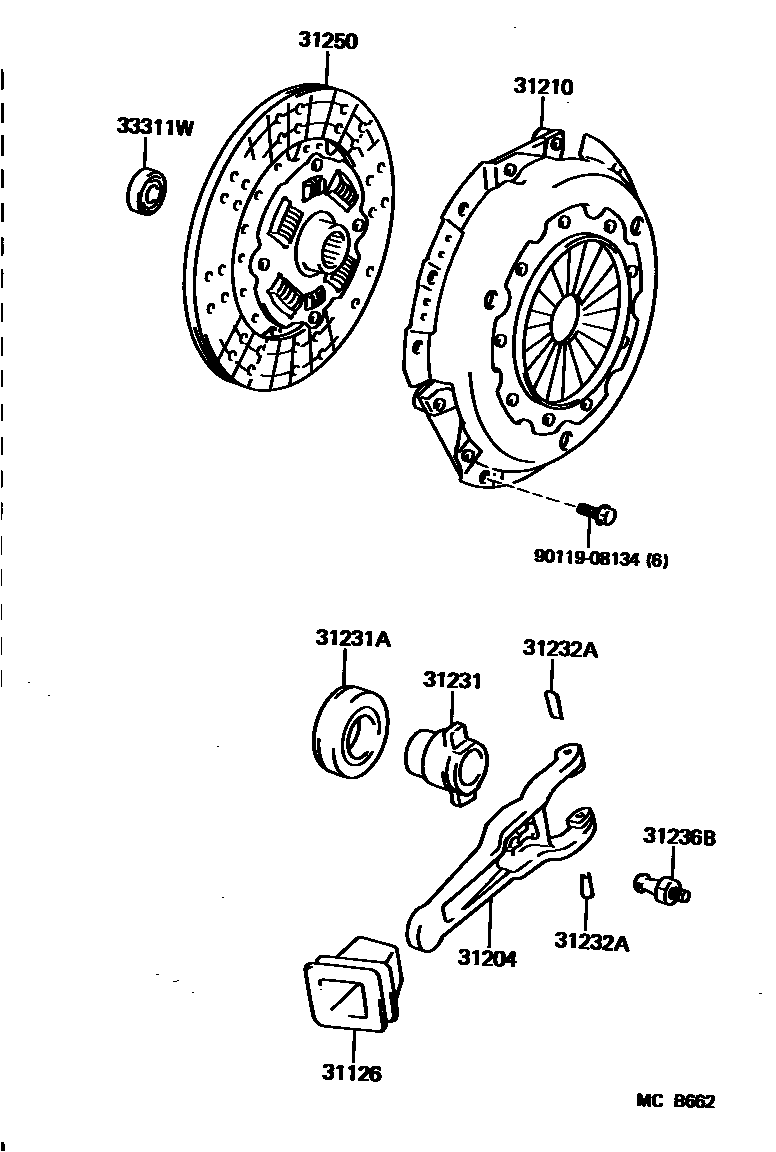

CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-60030iBJ70198411-198707

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-60080iBJ70198411-198707

31210COVER ASSY, CLUTCH

main31210-36100iBJ70198411-198707

sub31210-36101

31231HUB, CLUTCH RELEASE BEARING

main31231-60080iBJ70198411-198707

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-45002iBJ70198411-198707

31232ACLIP, RELEASE BEARING HUB

main31232-60020iBJ70198411-198707

31236BSUPPORT, RELEASE FORK

main31236-60030iBJ70198411-198707

31250DISC ASSY, CLUTCH

main31250-36280iBJ70198512-198610

sub31250-36281

main31250-36281iBJ70198610-198705

sub31250-36301

main31250-36301iBJ70198705-198707

sub31250-36302

main31250-60090iBJ70198411-198512

sub31250-36280

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iBJ70198411-198707

sub90363-12024

9011908134

main90119-08134

10 parts on this diagram · 1 diagram in section
