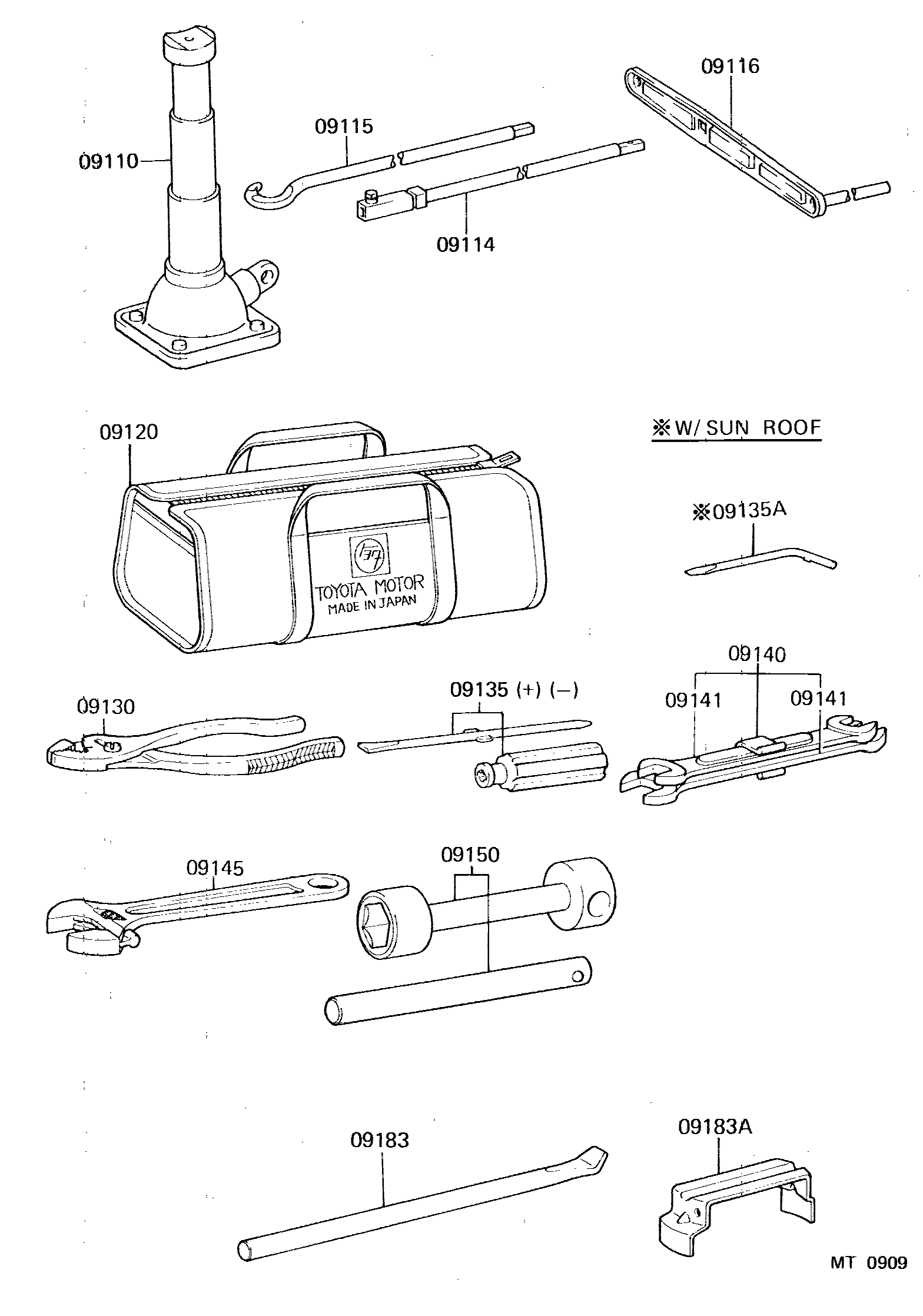

STANDARD TOOL

09110JACK ASSY

main09111-60050iBJ70198411-198707

sub09110-60060

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-60040iBJ70198411-198510

sub09114-60050

main09114-60050iBJ70198510-198707

sub09114-28010

09115ROD SUB-ASSY, JACK HANDLE

main09115-60030iBJ70198411-198707

09116LEVER, JACK HANDLE

main09116-35041iBJ70198411-198707

09120BAG, TOOL

main09120-60050iBJ70198411-198703

sub09120-60100

main09120-60100iBJ70198703-198707

sub09120-60102

09130PLIERS

main99913-11500iBJ70198703-198707

main99913-12000iBJ70198411-198703

09135DRIVER, SCREW

main99915-10700iBJ70198411-198707

09135ABIT, SCREW DRIVER

main09135-00012iBJ70198411-198707

W/SUN ROOF

09140SPANNER SET

main09140-27010iBJ70198411-198608

09141SPANNER

main99914-10810iBJ70198703-198707

8 X 10,8X10

main99914-11012iBJ70198411-198703

10 X 12,10X12

main99914-11214iBJ70198703-198707

12 X 14,12X14

main99914-11417iBJ70198411-198703

14 X 17,14X17

09145WRENCH, MONKEY

main99911-10250iBJ70198411-198608

sub99911-20250

main99911-11200iBJ70198703-198707

main99911-20250iBJ70198608-198703

sub09029-10250

09150WRENCH, HUB NUT BOX

main09150-60010iBJ70198411-198707

09183WRENCH, WHEEL CAP

main09183-00030iBJ70198411-198707

W/FREE WHEEL HUB

09183AREPLACER, WHEEL CAP

main09183-60010iBJ70198411-198707

W/FREE WHEEL HUB

14 parts on this diagram · 1 diagram in section
