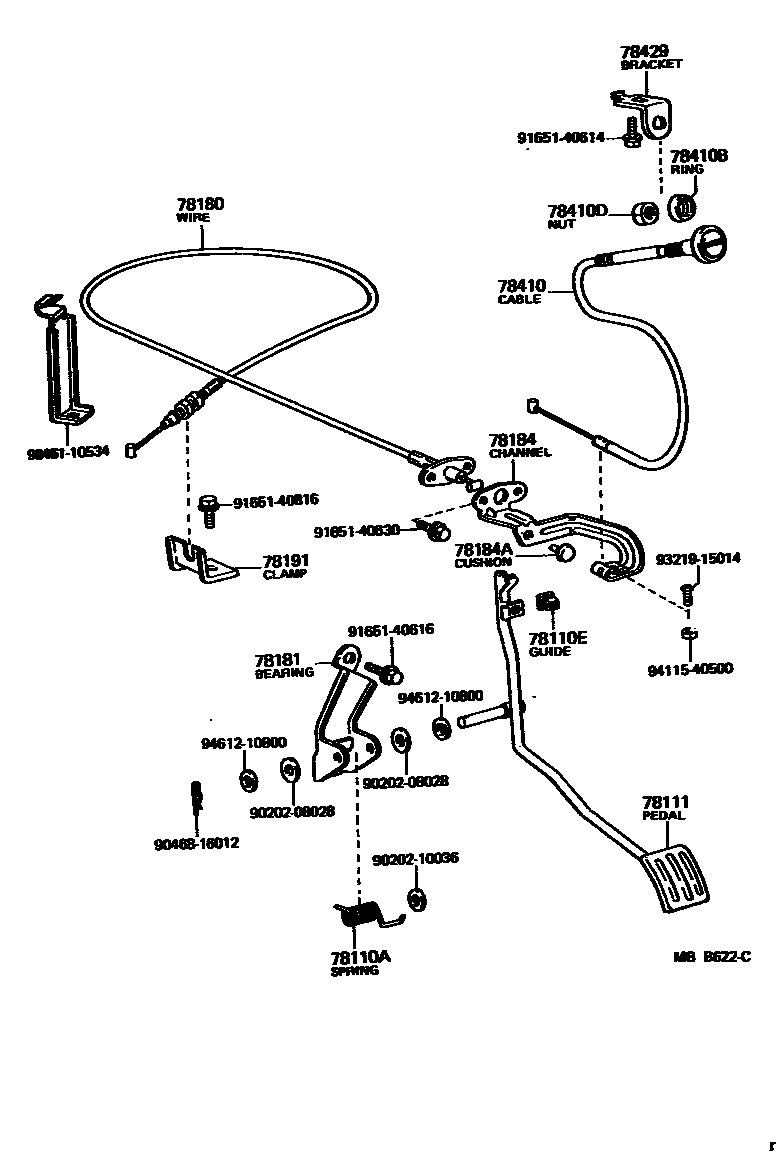

ACCELERATOR LINK
78110ASPRING (FOR ACCELERATOR PEDAL ROD)
78110EGUIDE, THROTTLE WIRE
W/THROTTLE ROD
78111PEDAL, ACCELERATOR
W/THROTTLE ROD
78181BEARING, ACCELERATOR PEDAL ROD SUPPORT
78184CHANNEL, ACCELERATOR IDLE ADJUSTING STOPPER
78184ACUSHION (FOR ACCELERATOR ADJUST STOPPER CHANNEL)
78191BRACKET, ACCELERATOR WIRE SUPPORT
78410CABLE ASSY, THROTTLE CONTROL
sub78410-90800
78410BRING, THROTTLE
78410DNUT, THROTTLE
78429BRACKET, THROTTLE ROD
9020208028
main90202-08028
9020210036
main90202-10036
9046110534
main90461-10534
9046816012
main90468-16012
9165140614
main91651-40614
9165140616
main91651-40616
9165140630
main91651-40630
9165140816
main91651-40816
9321915014
main93219-15014
9411540500
main94115-40500
9461210800
main94612-10800
23 parts on this diagram · 2 diagrams in section
