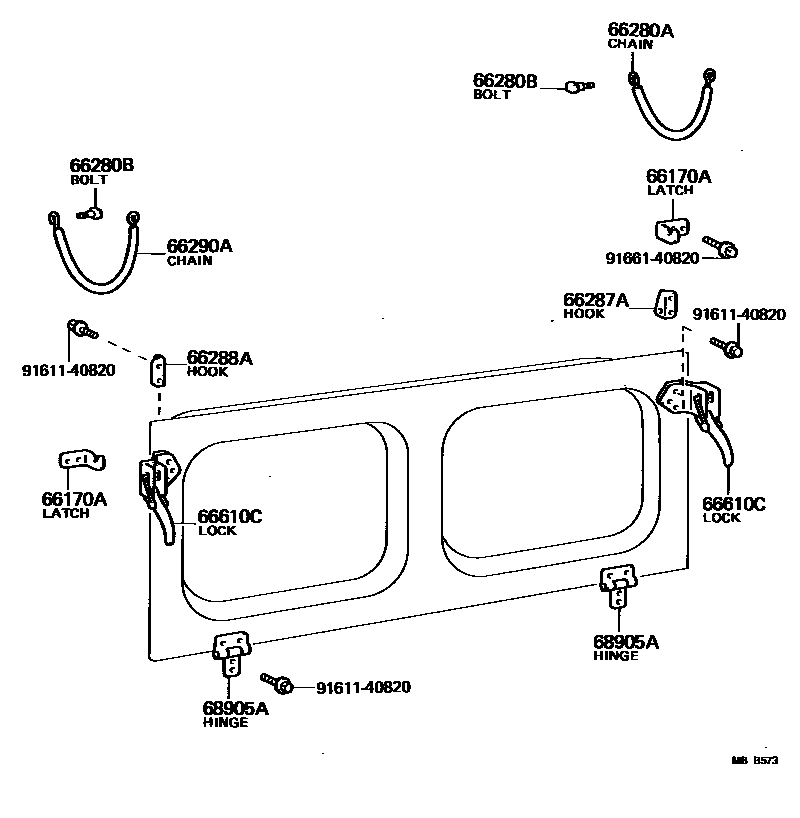

BACK DOOR LOCK & HINGE

0001 1 0002 1

66170ALATCH ASSY, REAR DROP GATE

main69362-90301iFJ40..TPS198008-198110

RH

main69363-90301iFJ40..TPS198008-198110

LH

66280ACHAIN ASSY, REAR DROP GATE, RH

main68909-90301iFJ40..TPS198008-198110

66280BBOLT, REAR GATE CHAIN SET

main71382-60010iFJ40..TPS198008-198110

66287AHOOK, REAR DROP GATE CHAIN, RH

main64917-60010iFJ40..TPS198008-198110

66288AHOOK, REAR DROP GATE CHAIN, LH

main64918-60010iFJ40..TPS198008-198110

66290ACHAIN ASSY, REAR DROP GATE, LH

main68909-90311iFJ40..TPS198008-198110

66610CLOCK ASSY, REAR DROP GATE

main69350-60010iFJ40..TPS198008-198110

RH

main69360-60010iFJ40..TPS198008-198110

LH

68905AHINGE, REAR DROP GATE

main68905-90305iFJ40..TPS198008-198110

9161140820

main91611-40820

9166140820

main91661-40820

10 parts on this diagram · 2 diagrams in section
