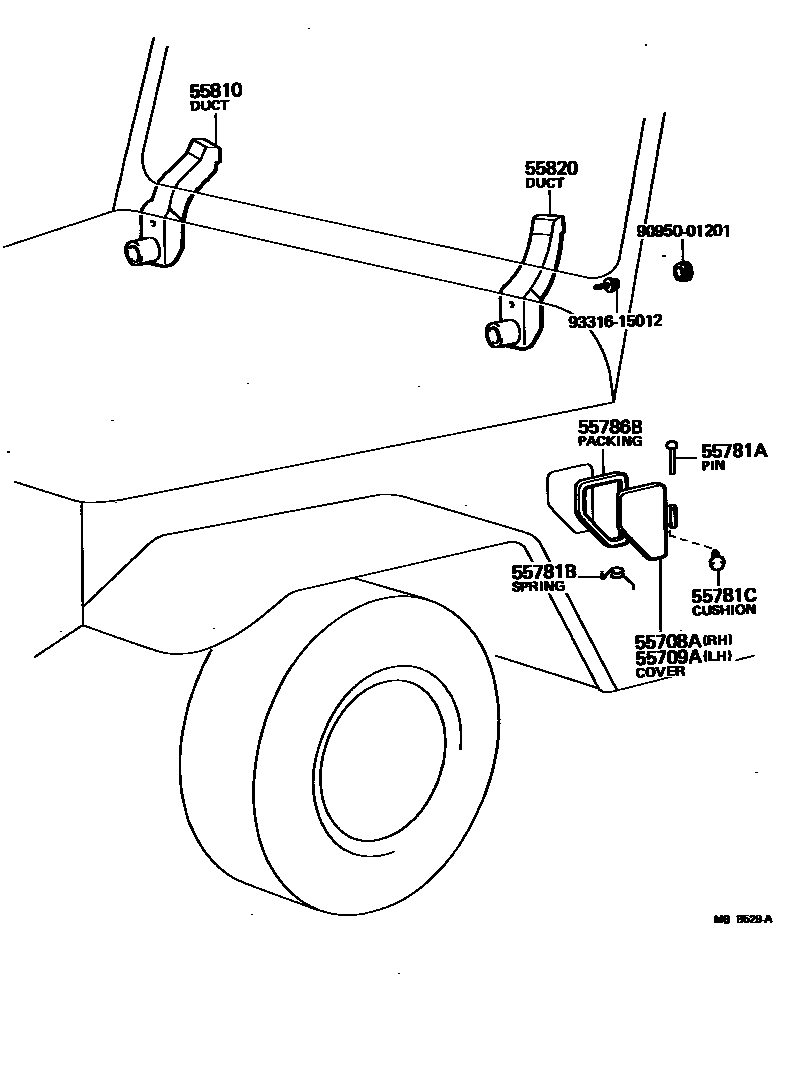

FRONT VENTILATOR

55708ACOVER SUB-ASSY, COWL SIDE VENTILATOR, RH

main55708-60011iBJ42,FJ40¥4,600198008-198410

55709ACOVER SUB-ASSY, COWL SIDE VENTILATOR, LH

main55709-60011iBJ42,FJ40¥4,650198008-198410

55781APIN(FOR COWL SIDE VENTILATOR COVER)

main90241-05002iBJ42,FJ40¥640198008-198410

55781BSPRING(FOR COWL SIDE VENTILATOR COVER)

main90508-16028iBJ42,FJ40¥260198008-198410

RH

main90508-16029iBJ42,FJ40¥260198008-198410

LH

55781CCUSHION(FOR COWL SIDE VENTILATOR COVER)

main90541-06008iBJ42,FJ40¥230198008-198410

55786BPACKING, COWL SIDE VENTILATOR COVER

main55786-90301iBJ42,FJ40¥950198008-198410

55810DUCT ASSY, SIDE VENTILATOR, RH

main87211-60110iBJ42,FJ40..VKC198008-198410

55820DUCT ASSY, SIDE VENTILATOR, LH

main87211-60120iBJ42,FJ40..VKC198008-198410

9095001201

main90950-01201

9331615012

main93316-15012¥80

10 parts on this diagram · 1 diagram in section
