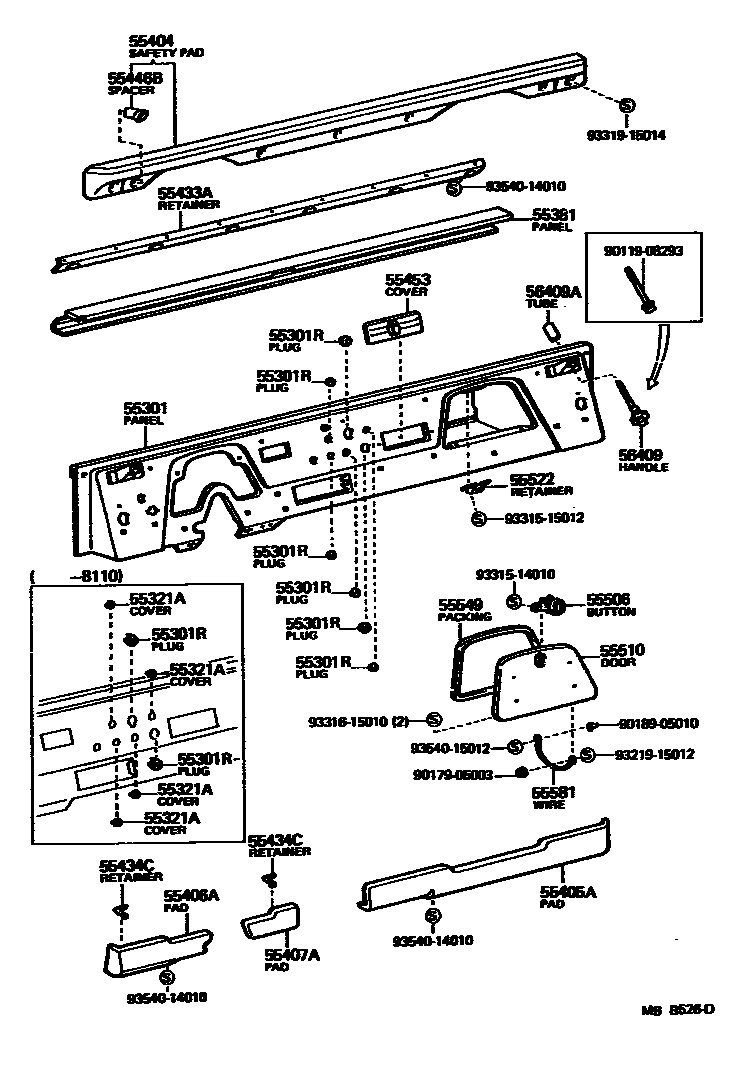

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

55301PANEL SUB-ASSY, INSTRUMENT

main55031-90818iBJ42198305-198410

main55301-90810iBJ42198008-198110

main55301-90817iFJ40..USA198008-198210

W/PAD,W/O RADIO

sub55301-90822

main55301-90819iFJ40..VKC198008-198210

W/PAD,SIDE DEFROSTER

main55301-90850iBJ42198110-198210

main55301-90863iFJ40198210-198309

W/O SIDE DEFROSTER

sub55031-90817

main55301-90866iFJ40198210-198309

W/SIDE DEFROSTER

sub55031-90820

main55301-90868iBJ42198210-198305

55301RPLUG, HOLE(FOR INSTRUMENT PANEL)

main90950-01155iBJ42198008-198210

ID=17.5

sub90950-01725

main90950-01156iBJ42198210-198410

ID=25.0

main90950-01225iBJ42198008-198210

ID=23.0

main90950-01329×2iBJ42,FJ40198110-198210

ID=13.5

main90950-01330×3iBJ42,FJ40198110-198210

ID=11.5

55321ACOVER,INSTRUMENT PANEL HOLE

main55321-90300×6iFJ40198008-198110

55381PANEL, INSTRUMENT IMPACT

main55381-60010iBJ42,FJ40198008-198410

55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER

main55404-90300iBJ42,FJ40198008-198410

sub55404-90301

55405APAD SUB-ASSY, INSTRUMENT PANEL, LOWER RH

main55402-90800iBJ42,FJ40198210-198410

main55405-90300iBJ42,FJ40198008-198210

55406APAD SUB-ASSY, INSTRUMENT PANEL, LOWER LH

main55403-90800iBJ42,FJ40198305-198410

main55406-90300iBJ42,FJ40198008-198305

55407APAD SUB-ASSY, INSTRUMENT PANEL, LOWER CENTER

main55407-90300iBJ42,FJ40198008-198210

55433ARETAINER, SAFETY PAD SET PLATE

main55449-60010iBJ42,FJ40198008-198410

55434CRETAINER,INSTRUMENT PANEL LOWER PAD SET

main55434-30020×11iBJ42,FJ40198008-198410

55446BSPACER, INSTRUMENT PANEL SAFETY PAD, SET

main55446-60010×5iBJ42,FJ40198008-198110

main55457-90800×5iBJ42,FJ40198110-198410

55453COVER, RADIO TUNER OPENING

main55461-90351iBJ42,FJ40198008-198210

main55522-90800iBJ42,FJ40198210-198410

55506BUTTON SUB-ASSY, GLOVE COMPARTMENT DOOR LOCK

main55560-12020iBJ42,FJ40198008-198410

55510DOOR ASSY, GLOVE COMPARTMENT

main55501-90800iBJ42,FJ40198008-198210

main55501-90802iBJ42,FJ40198210-198410

55522RETAINER, GLOVE COMPARTMENT MALE

main55561-90800iBJ42,FJ40198008-198410

55549PACKING, GLOVE COMPARTMENT DOOR

main55549-90300iBJ42,FJ40198008-198410

55581WIRE, GLOVE COMPARTMENT DOOR OPEN

main55508-30020iBJ42,FJ40198008-198410

56409HANDLE SUB-ASSY, WINDSHIELD CATCH

main56409-60010×2iFJ40..USA198008-198309

56409ATUBE, WINDSHIELD CATCH HANDLE

main90440-17057×2iBJ42,FJ40198008-198410

9011908293

main90119-08293

9017905003

main90179-05003

9018905010

main90189-05010

9321915012

main93219-15012

9331514010

main93315-14010

9331515012

main93315-15012

9331615010

main93316-15010

9331915014

main93319-15014

9354014010

main93540-14010

9354015012

main93540-15012

29 parts on this diagram · 2 diagrams in section
