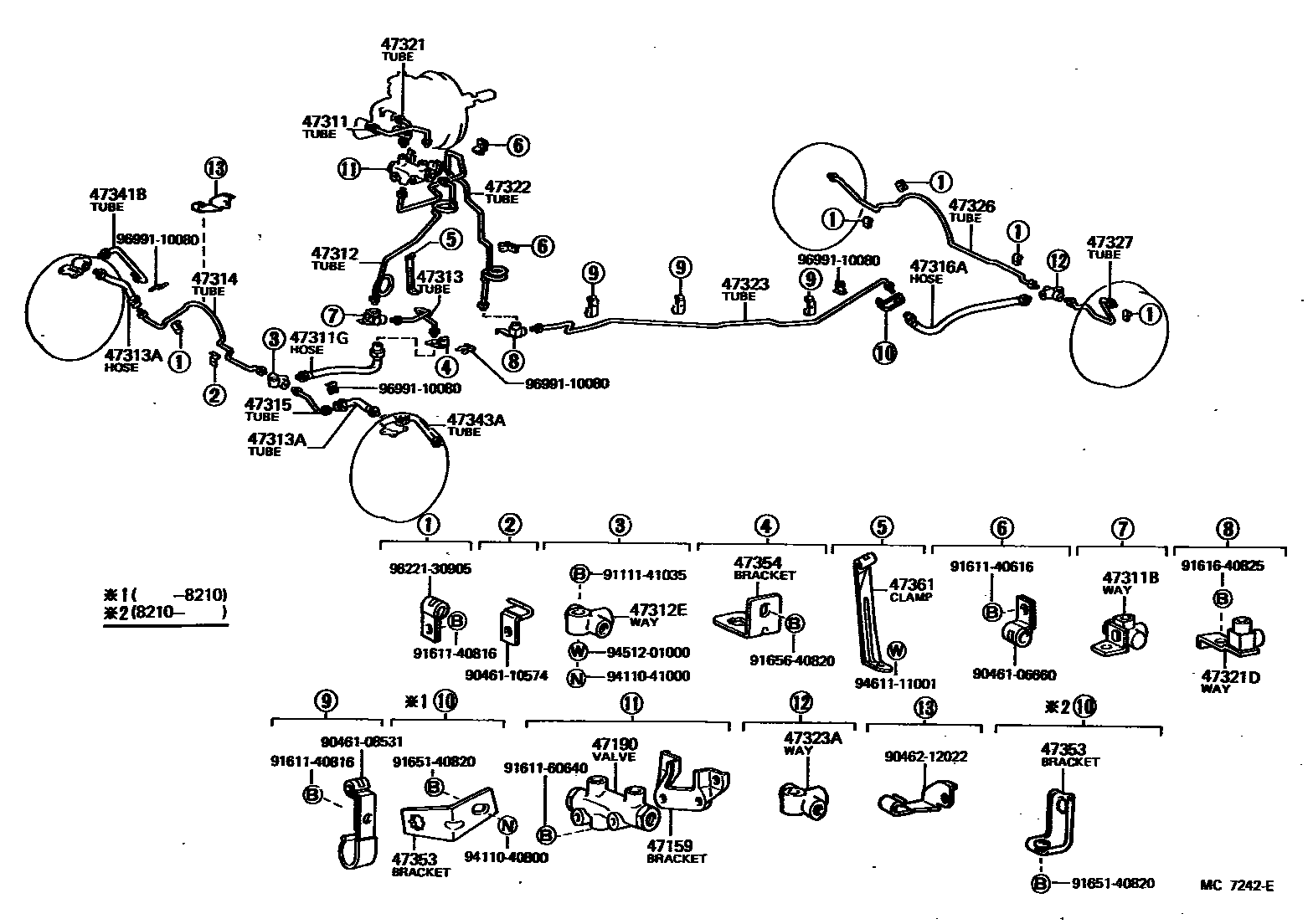

BRAKE TUBE & CLAMP

0001 1 0002 1

47159BRACKET, PROPORTIONING VALVE

main47159-30110iBJ42,FJ40198008-198410

47190VALVE ASSY, PROPORTIONING & BY-PASS

main47190-12030iBJ42198310-198410

main47190-14020iBJ42,FJ40198008-198310

47311TUBE, FRONT BRAKE, NO.1

main47311-30320iBJ42,FJ40198008-198410

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10015iBJ42198008-198410

main90414-10009iFJ40198008-198309

47311GHOSE, FLEXIBLE(FOR BRAKE TUBE)

main96940-32605iFJ40198008-198309

main96940-34305iBJ42198008-198410

47312TUBE, FRONT BRAKE, NO.2

main47312-60350iFJ40198008-198309

main47312-60410iBJ42198008-198410

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90413-10031iBJ42198008-198410

main90413-10042iFJ40198008-198309

47313TUBE, FRONT BRAKE, NO.3

main47329-60051iBJ42198008-198410

main47329-60070iFJ40198008-198309

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main96910-32305iBJ42,FJ40198008-198410

47314TUBE, FRONT BRAKE, NO.4

main47315-60280iFJ40198008-198309

main47315-60290iBJ42198008-198410

47315TUBE, FRONT BRAKE, NO.5

main47316-60160iFJ40198008-198309

main47316-60170iBJ42198008-198410

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main96940-33405iBJ42198210-198410

main96940-34305iBJ42,FJ40198008-198410

47321TUBE, REAR BRAKE, NO.1

main47321-60100iBJ42,FJ40198008-198410

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90412-10089iBJ42198008-198410

47322TUBE, REAR BRAKE, NO.2

main47322-60250iFJ40198008-198309

main47322-60310iBJ42198008-198410

47323TUBE, REAR BRAKE, NO.3

main47323-60050iFJ40198008-198309

main47323-60090iBJ42198008-198210

main47323-60091iBJ42198210-198410

47323AWAY, NO.3(FOR REAR BRAKE TUBE)

main90413-10031iBJ42198008-198410

main90413-10086iFJ40198008-198309

47326TUBE, REAR BRAKE, NO.6

main47325-60020iFJ40198008-198309

main47325-60040iBJ42198008-198410

47327TUBE, REAR BRAKE, NO.7

main47326-60020iFJ40198008-198309

main47326-60040iBJ42198008-198410

47341BTUBE, WHEEL CYLINDER, FRONT RH NO.1

main47341-60030iBJ42,FJ40198008-198408

sub47341-60031

main47341-60031iBJ42198408-198410

47343ATUBE, WHEEL CYLINDER, FRONT LH NO.1

main47343-60020iBJ42,FJ40198008-198408

sub47343-60021

main47343-60021iBJ42198408-198410

47353BRACKET, FLEXIBLE HOSE(FOR REAR)

main47351-60080iFJ40198008-198309

main47351-60091iBJ42198008-198210

main47355-60040iBJ42198210-198410

47354BRACKET, FRONT FLEXIBLE HOSE

main47354-60010iBJ42198008-198410

main47354-60020iFJ40198008-198309

47361CLAMP, TUBE

main47361-60071iBJ42198008-198410

9046106660

main90461-06660

9046108531

main90461-08531

9046110574

main90461-10574

9046212022

main90462-12022

9111141035

main91111-41035

9161140616

main91611-40616

9161140816

main91611-40816

9161160640

main91611-60640

9161640825

main91616-40825

9165140820

main91651-40820

9165640820

main91656-40820

9411040800

main94110-40800

9411041000

main94110-41000

9451201000

main94512-01000

9461111001

main94611-11001

9622130905

main96221-30905

9699110080

main96991-10080

41 parts on this diagram · 2 diagrams in section
