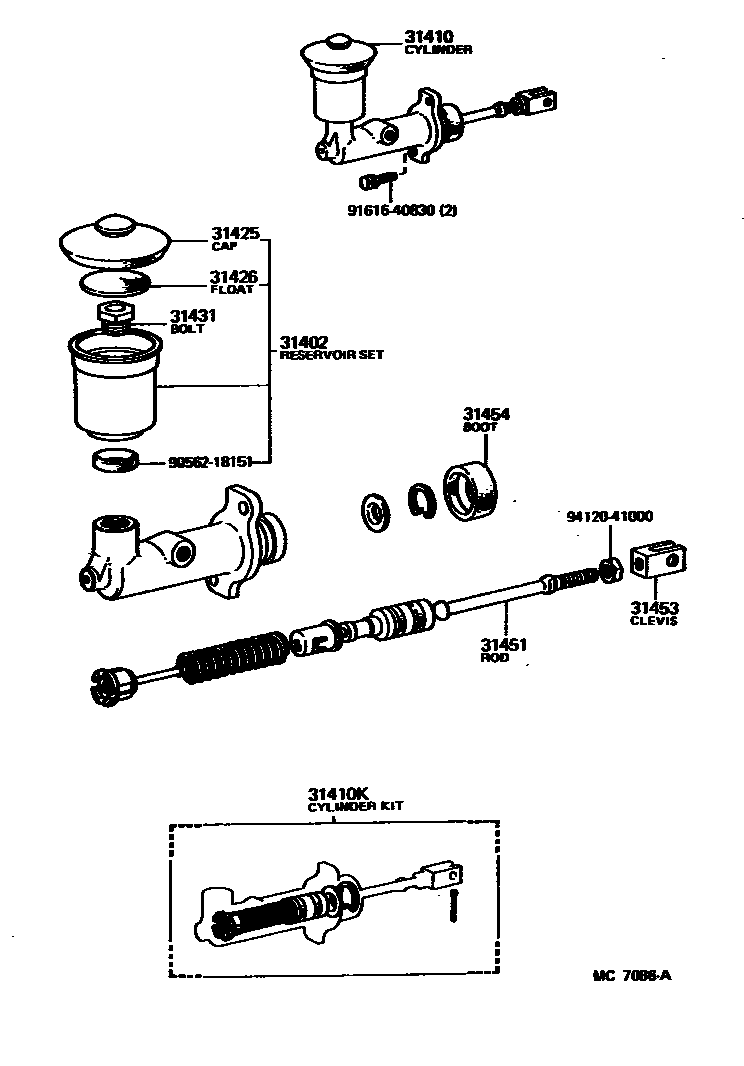

CLUTCH MASTER CYLINDER

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-35010iBJ42,FJ40198008-198410

sub31402-20010

31410CYLINDER ASSY, CLUTCH MASTER

main31410-60060iBJ42,FJ40198008-198410

sub31410-60061

31410KCYLINDER KIT, CLUTCH MASTER

main04311-60030iBJ42,FJ40198008-198410

sub04311-60031

31425CAP, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main31440-35010iBJ42,FJ40198008-198410

sub47230-20040

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-20010iBJ42,FJ40198008-198410

31431BOLT, CLUTCH MASTER CYLINDER RESERVOIR SET

main47231-20010iBJ42,FJ40198008-198410

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-30030iBJ42,FJ40198008-198410

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31453-30011iBJ42,FJ40198008-198410

31454BOOT, CLUTCH MASTER CYLINDER

main31454-30030iBJ42,FJ40198008-198410

9056218151

main90562-18151

9161640830

main91616-40830

9412041000

main94120-41000

12 parts on this diagram · 1 diagram in section
