CAMSHAFT & VALVE

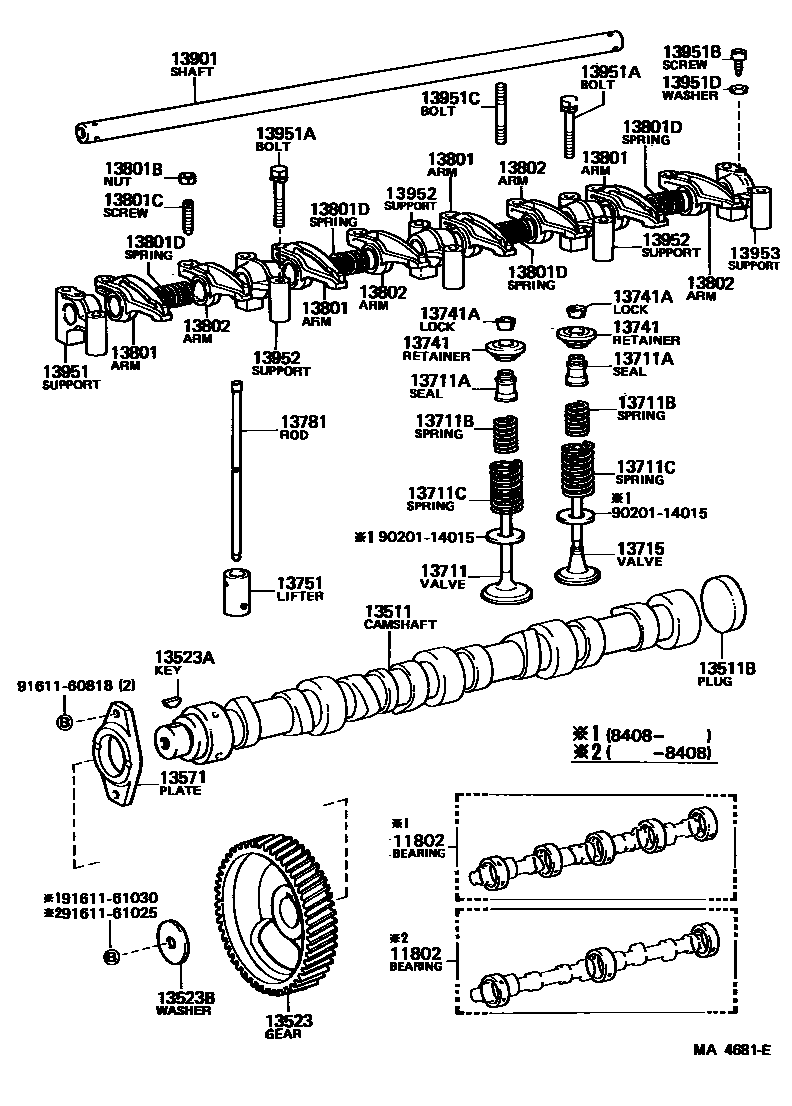

Parts diagram
11802BEARING SET, CAMSHAFT
main11802-56011i198008-198408
STD
main11802-56020i198408-198410
STD,STD
main11802-60011i198008-198309
STD
sub11802-61010
main11804-60021i198008-198309
U/S 0.25
sub11804-61010
main11805-60021i198008-198309
U/S 0.50
sub11805-61010
13511CAMSHAFT
main13511-56010i198008-198408
main13511-56030i198408-198410
main13511-60060i198008-198309
13511BPLUG, EXPANSION(FOR CAMSHAFT)
main90331-48010i198008-198309
main90331-51032i198008-198408
OD=51
main90331-56001i198408-198410
OD=56
13523GEAR OR SPROCKET, CAMSHAFT TIMING
main13523-56030i198008-198408
N=44
main13523-56040i198408-198410
sub13523-58010
main13523-60030i198008-198309
13523AKEY, WOODRUFF(FOR TIMING GEAR)
main90280-05010i198008-198309
main95161-10519i198008-198410
13523BWASHER, PLATE(FOR TIMING GEAR)
main90201-10227i198008-198410
13571PLATE, CAMSHAFT THRUST
main13571-56010i198008-198408
main13571-56020i198408-198410
sub13571-56030
main13571-60010i198008-198010
sub13571-61010
main13571-61010i198010-198309
13711VALVE, INTAKE
main13711-58010i198008-198410
main13711-60021i198008-198309
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
main90913-02048i198008-198309
main90913-02051i198008-198410
13711BSPRING, COMPRESSION(FOR INNER)
main90501-23018i198008-198410
main90501-45342i198008-198309
13711CSPRING, COMPRESSION(FOR OUTER)
main90501-47003i198008-198410
13715VALVE, EXHAUST
main13715-58010i198008-198410
sub13715-58011
main13715-60032i198008-198309
sub13715-61030
main13715-61010i198008-198110
13741RETAINER, VALVE SPRING
main13741-56020i198008-198408
main13741-56021i198408-198410
main13741-60030i198008-198309
13741ALOCK, VALVE SPRING RETAINER
main90913-03012i198008-198309
main90913-03019i198008-198410
13751LIFTER, VALVE
main13751-56011i198008-198305
sub13751-56012
main13751-56012i198305-198408
main13751-56020i198408-198410
main13751-61010i198008-198309
STD
main13755-61010i198008-198309
O/S 0.05
13781ROD, VALVE PUSH
main13781-31011i198008-198408
main13781-56010i198408-198410
main13781-61010i198008-198309
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
main13811-56020i198008-198408
main13811-56030i198408-198410
main13811-61021i198008-198309
sub13811-61H00
13801BNUT, HEXAGON(FOR VALVE ADJUSTING)
main90041-70001i198408-198410
main90170-10014i198008-198309
main90170-10074i198008-198408
13801CSCREW, VALVE ADJUSTING
main90913-05007i198008-198408
main90913-05021i198408-198410
13801DSPRING, COMPRESSION(FOR ROCKER ARM)
main90501-16163i198008-198410
13802ARM SUB-ASSY, VALVE ROCKER, NO.2
main13812-56020i198008-198408
main13812-56030i198408-198410
main13812-61021i198008-198309
sub13812-61H00
13901SHAFT SUB-ASSY, VALVE ROCKER, NO.1
main13901-56020i198008-198410
sub13901-56030
main13901-61011i198008-198309
sub13901-61020
13951SUPPORT, VALVE ROCKER, NO.1
main13951-56010i198008-198410
sub13951-56011
main13951-61012i198008-198309
sub13952-61012
13951ABOLT(FOR ROCKER SUPPORT SET)
main90910-01006i198008-198309
main91611-60855i198008-198410
*8-1.25PX55-30
main91611-60865i198008-198410
*8-1.25PX65-30
13951BSCREW OR BOLT(FOR VALVE ROCKER SHAFT LOCK)
main13958-56010i198408-198410
main90149-60001i198008-198408
sub90109-06014
13951CBOLT, STUD(FOR ROCKER SUPPORT)
main13994-61010i198008-198309
main90116-08123i198008-198410
L=84,S=9&29
13951DWASHER, SEAL(FOR HEAD COVER SET)
main90201-06177i198008-198410
13952SUPPORT, VALVE ROCKER, NO.2
main13952-56010i198008-198410
sub13952-56011
main13952-61012i198008-198309
13953SUPPORT, VALVE ROCKER, NO.3
main13953-56010i198008-198410
sub13953-56011
9020114015
main90201-14015
9161160818
main91611-60818
9161161025
main91611-61025
9161161030
main91611-61030

33 parts on this diagram · 2 diagrams in section
