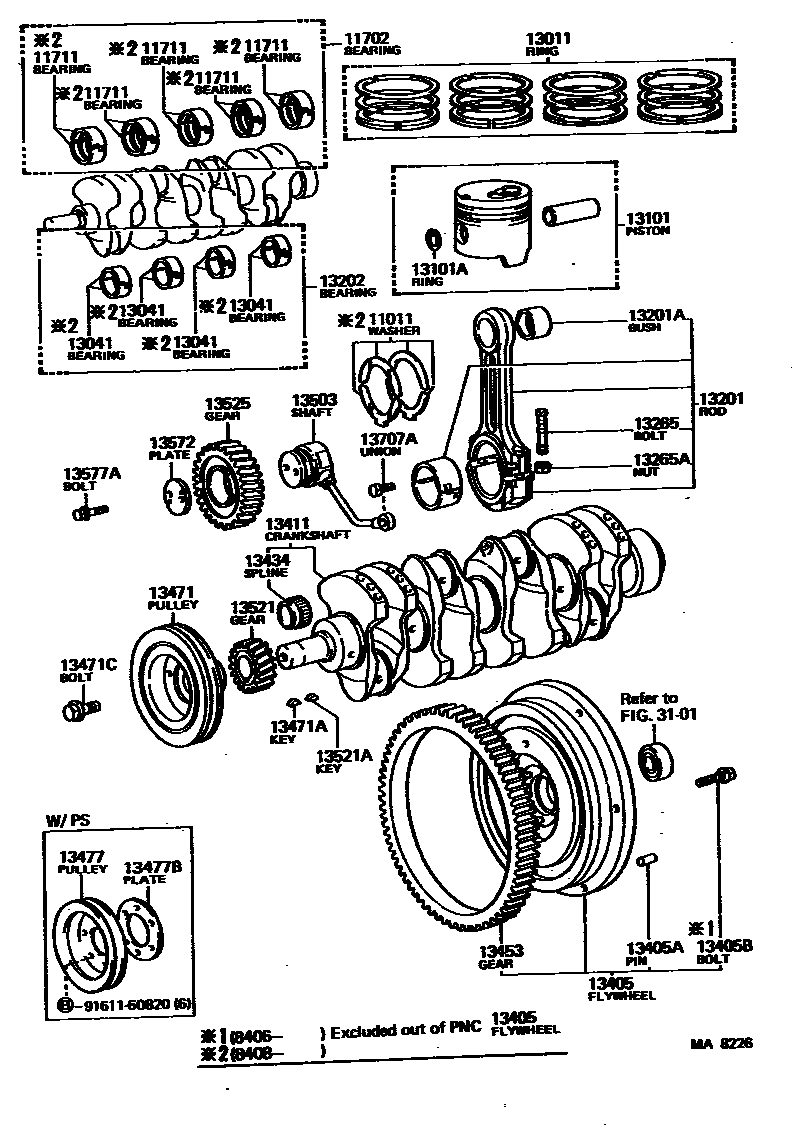

CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
11702BEARING SET, CRANKSHAFT
STD,STD
STD
U/S 0.05
U/S 0.25,U/S 0.25
U/S 0.25,U/S 0.25
U/S 0.25
U/S 0.50,U/S 0.50
U/S 0.50,U/S 0.50
U/S 0.50
U/S 1.00,U/S 1.00
U/S 1.00,U/S 1.00
11711BEARING, CRANKSHAFT
MARK"1",MARK 1
MARK"2",MARK 2
13011RING SET, PISTON
STD,STD
STD,STD
STD,STD
O/S 0.50,O/S 0.50
O/S 1.00,O/S 1.00
O/S 1.50,O/S 1.50
13041BEARING, CONNECTING ROD
MARK"1",MARK 1
MARK"2",MARK 2
13101PISTON SUB-ASSY, W/PIN
STD,STD
STD,STD
STD,STD
O/S 0.50,O/S 0.50
O/S 1.00,O/S 1.00
O/S 1.50,O/S 1.50
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ABUSH(FOR CONNECTING ROD SMALL END)
sub90999-73132
13202BEARING SET, CONNECTING ROD
STD,STD
STD,STD
U/S 0.05,U/S 0.05
U/S 0.25,U/S 0.25
U/S 0.25,U/S 0.25
U/S 0.25,U/S 0.25
U/S 0.50,U/S 0.50
U/S 0.50,U/S 0.50
U/S 0.50,U/S 0.50
U/S 1.00,U/S 1.00
U/S 1.00,U/S 1.00
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=22,OD=10
13411CRANKSHAFT
sub13401-58020
sub13401-61010
13434SPLINE, OIL PUMP DRIVE
13453GEAR, FLYWHEEL RING
13471PULLEY, CRANKSHAFT
sub13470-56101
sub13470-56170
OD=155
DOUBLE PULLEY,OD=155
TRIPLE PULLEY,OD=155&227
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13477PULLEY, CRANKSHAFT, NO.2
W/POWER STEERING
13477BPLATE, CRANKSHAFT PULLEY, NO.2
W/POWER STEERING
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
N=22
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
13577ABOLT, HEXAGON(FOR IDLE GEAR BOLT LOCK)
13707AUNION(FOR OIL PIPE, NO.1)
3101
9161160820
main91611-60820
32 parts on this diagram · 2 diagrams in section
