REAR COMBINATION LAMP

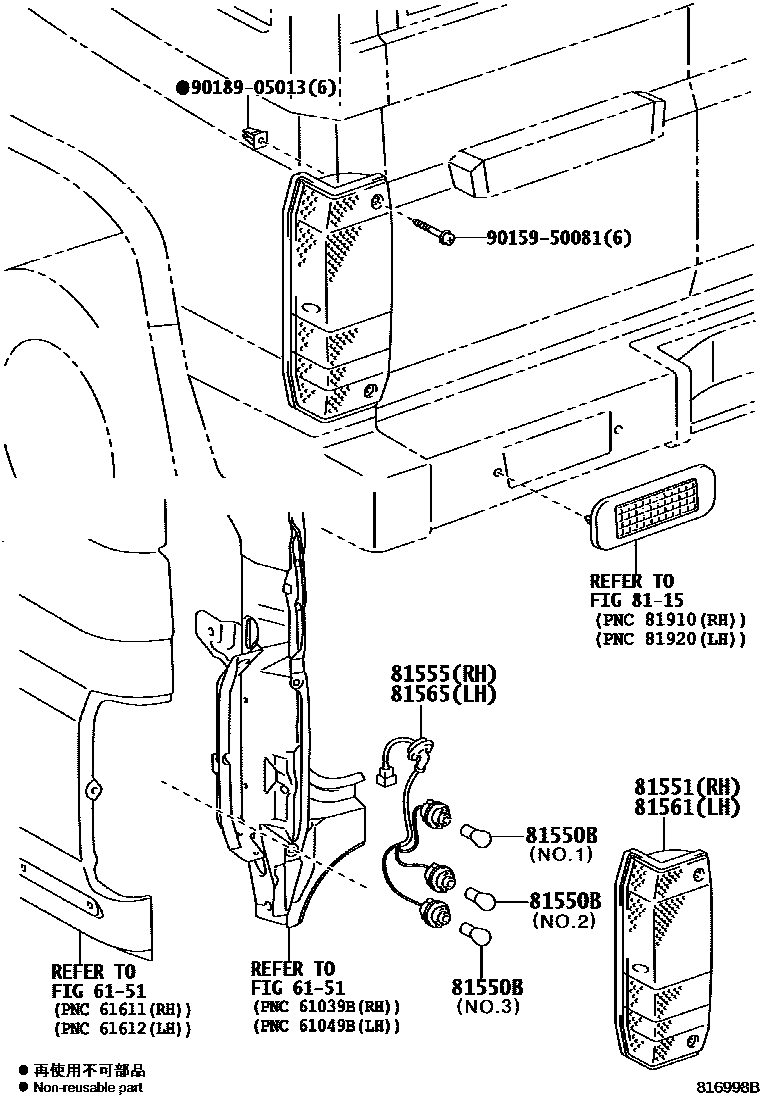

Parts diagram
6151
8115
81550LAMP ASSY, REAR COMBINATION, RH
main81550-60422i200701-202508
main81550-60452i200701-201408
ALGERIA SPEC
main81550-60452i200701-201408
SOUTH AFRICA SPEC
main81550-60B60i201408-202508
SOUTH AFRICA SPEC
main81550-60B60i201408-202309
ALGERIA SPEC
main81550-60B60i202309-202409
main81550-60B60i202309
GHANA SPEC
main81550-60B60i202309
EGYPT SPEC
81550BBULB(FOR REAR COMBINATION LAMP)
main99132-11210i201608-202309
12V 21W,ALGERIA SPEC,NO.2 & N0.3
main99132-11210i200701-202309
12V 21W,ALGERIA SPEC,NO.3
main99132-11210i200701-202508
12V 21W,NO.1 & NO.3
main99132-11210i200701-202309
12V 21W,NO.2 & NO.3
main99132-11210i201608-202409
12V 21W,NO.2 & N0.3
main99132-11210i200701-202409
12V 21W,SOUTH AFRICA SPEC,NO.3
main99132-11210i200701-202409
12V 21W,NO.3
main99132-11210i202309
12V 21W,UAE SPEC&UP GRADE PACKAGE,NO.3
main99132-11210i202309
12V 21W,OMAN SPEC&UP GRADE PACKAGE,NO.3
main99132-11210i202309
12V 21W,QATAR SPEC&UP GRADE PACKAGE,NO.3
main99132-11210i202309
12V 21W,BAHRAIN SPEC&UP GRADE PACKAGE,NO.3
main99132-11210i202309
12V 21W,KUWAIT SPEC&UP GRADE PACKAGE,NO.3
main99132-11210i202309
12V 21W,YEMEN SPEC&UP GRADE PACKAGE,NO.3
main99132-11210i202309
12V 21W,IRAQ SPEC&UP GRADE PACKAGE,NO.3
main99132-11210i202309
12V 21W,JORDAN SPEC&UP GRADE PACKAGE,NO.3
main99132-11210i201608-202309
12V 21W,SOUTH AFRICA SPEC,NO.2 & N0.3
main99132-11210i202309
12V 21W,UP GRADE PACKAGE(EXCEPT TRIM),NO.3
main99132-11210i202309
12V 21W,UP GRADE PACKAGE,NO.2 & N0.3
main99132-11210i202309
12V 21W,MOZAMBIQUE SPEC&UP GRADE PACKAGE(WITHOUT REAR FOG LAMP),NO.2 & N0.3
main99132-11210i202309
12V 21W,UP GRADE PACKAGE(WITHOUT REAR FOG LAMP),NO.2 & N0.3
main99132-11210i201608-201701
12V 21W,SAUDI ARABIA SPEC,NO.2 & N0.3
main99132-11210i201608-201701
12V 21W,GCC(EXCEPT SAUDI ARABIA),YEMEN,IRAQ SPEC,NO.2 & N0.3
main99132-11210i201608-201701
12V 21W,SAUDI ARABIA SPEC,NO.3
main99132-11210i201608-201701
12V 21W,GCC(EXCEPT SAUDI ARABIA),YEMEN,IRAQ SPEC,NO.3
main99132-21210i200701-202508
12V 21/5W,NO.2
main99132-21210i200701-202409
12V 21/5W,NO.1
81551LENS, REAR COMBINATION LAMP, RH
main81551-60380i202309
UAE SPEC&UP GRADE PACKAGE
main81551-60380i202309-202409
SOUTH AFRICA SPEC
main81551-60380i202309
ALGERIA SPEC
main81551-60380i202309
YEMEN SPEC&UP GRADE PACKAGE
main81551-60380i202309
KUWAIT SPEC&UP GRADE PACKAGE
main81551-60380i202309
IRAQ SPEC&UP GRADE PACKAGE
main81551-60380i202309
JORDAN SPEC&UP GRADE PACKAGE
main81551-60380i202309
OMAN SPEC&UP GRADE PACKAGE
main81551-60380i202309
QATAR SPEC&UP GRADE PACKAGE
main81551-60380i202309
BAHRAIN SPEC&UP GRADE PACKAGE
main81551-60380i201701-202309
main81551-60442i200701-201408
ALGERIA SPEC
main81551-60442i200701-201408
SOUTH AFRICA SPEC
main81551-60451i200701-202508
main81551-60540i202309
UP GRADE PACKAGE(WITHOUT REAR FOG LAMP)
main81551-60540i200701-202409
main81551-60540i202309
MOZAMBIQUE SPEC&UP GRADE PACKAGE(WITHOUT REAR FOG LAMP)
main81551-60550i200701-201608
sub81551-60A31
main81551-60790i200701-202409
main81551-60790i202309
UP GRADE PACKAGE(EXCEPT TRIM)
main81551-60A21i202309
UP GRADE PACKAGE
main81551-60A21i201701-202409
main81551-60A21i202309
ALGERIA SPEC
main81551-60A21i202309
SOUTH AFRICA SPEC
main81551-60A31i201608-202409
main81551-90K09i200701-202309
main81553-60B60i201408-202309
ALGERIA SPEC
main81553-60B60i201408-202508
SOUTH AFRICA SPEC
main81553-60B60i202309
GHANA SPEC
main81553-60B60i202309
EGYPT SPEC
main81553-60B60i202309-202409
81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
main81555-60391i200701-202409
main81555-60391i202309
MOZAMBIQUE SPEC&UP GRADE PACKAGE(WITHOUT REAR FOG LAMP)
main81555-60391i202309
UP GRADE PACKAGE(WITHOUT REAR FOG LAMP)
main81555-60410i200701-202309
main81555-60550i200701-200907
main81555-60790i200701-200907
main81555-60A20i202309
ALGERIA SPEC
main81555-60A20i202309
SOUTH AFRICA SPEC
main81555-60A20i202309
UP GRADE PACKAGE
main81555-60A20i201701-202409
main81555-60A30i200907-202409
main81555-60A40i200907-202409
main81555-60A40i202309
UP GRADE PACKAGE(EXCEPT TRIM)
main81555-60A50i202309
YEMEN SPEC&UP GRADE PACKAGE
main81555-60A50i202309
IRAQ SPEC&UP GRADE PACKAGE
main81555-60A50i202309
JORDAN SPEC&UP GRADE PACKAGE
main81555-60A50i202309
ALGERIA SPEC
main81555-60A50i202309-202409
SOUTH AFRICA SPEC
main81555-60A50i202309
UAE SPEC&UP GRADE PACKAGE
main81555-60A50i202309
OMAN SPEC&UP GRADE PACKAGE
main81555-60A50i202309
QATAR SPEC&UP GRADE PACKAGE
main81555-60A50i202309
BAHRAIN SPEC&UP GRADE PACKAGE
main81555-60A50i202309
KUWAIT SPEC&UP GRADE PACKAGE
main81555-60A50i201701-202309
81561LENS, REAR COMBINATION LAMP, LH
main81561-60300i202309
QATAR SPEC&UP GRADE PACKAGE
main81561-60300i202309
OMAN SPEC&UP GRADE PACKAGE
main81561-60300i202309
UAE SPEC&UP GRADE PACKAGE
main81561-60300i202309
ALGERIA SPEC
main81561-60300i201701-202409
main81561-60300i202309
IRAQ SPEC&UP GRADE PACKAGE
main81561-60300i202309
JORDAN SPEC&UP GRADE PACKAGE
main81561-60300i202309
BAHRAIN SPEC&UP GRADE PACKAGE
main81561-60300i202309
KUWAIT SPEC&UP GRADE PACKAGE
main81561-60300i202309
YEMEN SPEC&UP GRADE PACKAGE
main81561-60372i200701-201408
SOUTH AFRICA SPEC
main81561-60372i200701-201408
ALGERIA SPEC
main81561-60381i200701-202508
main81561-60460i202309
UP GRADE PACKAGE(WITHOUT REAR FOG LAMP)
main81561-60460i202309
MOZAMBIQUE SPEC&UP GRADE PACKAGE(WITHOUT REAR FOG LAMP)
main81561-60460i200701-202409
main81561-60470i200701-201608
sub81561-60871
main81561-60710i202309
UP GRADE PACKAGE(EXCEPT TRIM)
main81561-60710i200701-202409
main81561-60861i201701-202409
main81561-60861i202309
UP GRADE PACKAGE
main81561-60861i202309
ALGERIA SPEC
main81561-60871i201608-202409
main81561-90K09i200701-202309
main81563-60B40i202309
EGYPT SPEC
main81563-60B40i201408-202508
SOUTH AFRICA SPEC
main81563-60B40i201408-202309
ALGERIA SPEC
main81563-60B40i202309-202409
main81563-60B40i202309
GHANA SPEC
81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
main81555-60391i200701-202409
main81555-60391i202309
UP GRADE PACKAGE(WITHOUT REAR FOG LAMP)
main81555-60391i202309
MOZAMBIQUE SPEC&UP GRADE PACKAGE(WITHOUT REAR FOG LAMP)
main81555-60410i200701-202309
main81555-60790i200701-200907
main81555-60A40i202309
UP GRADE PACKAGE(EXCEPT TRIM)
main81555-60A40i200907-202409
main81565-60470i200701-200907
main81565-60860i201701-202409
main81565-60860i202309
UP GRADE PACKAGE
main81565-60860i202309
ALGERIA SPEC
main81565-60870i200907-202409
main81565-60890i202309
KUWAIT SPEC&UP GRADE PACKAGE
main81565-60890i202309
JORDAN SPEC&UP GRADE PACKAGE
main81565-60890i202309
IRAQ SPEC&UP GRADE PACKAGE
main81565-60890i202309
YEMEN SPEC&UP GRADE PACKAGE
main81565-60890i202309
BAHRAIN SPEC&UP GRADE PACKAGE
main81565-60890i202309
QATAR SPEC&UP GRADE PACKAGE
main81565-60890i202309
OMAN SPEC&UP GRADE PACKAGE
main81565-60890i202309
UAE SPEC&UP GRADE PACKAGE
main81565-60890i202309
ALGERIA SPEC
main81565-60890i201701-202409
9015950081
main90159-50081
9018905013
main90189-05013

10 parts on this diagram · 15 diagrams in section
