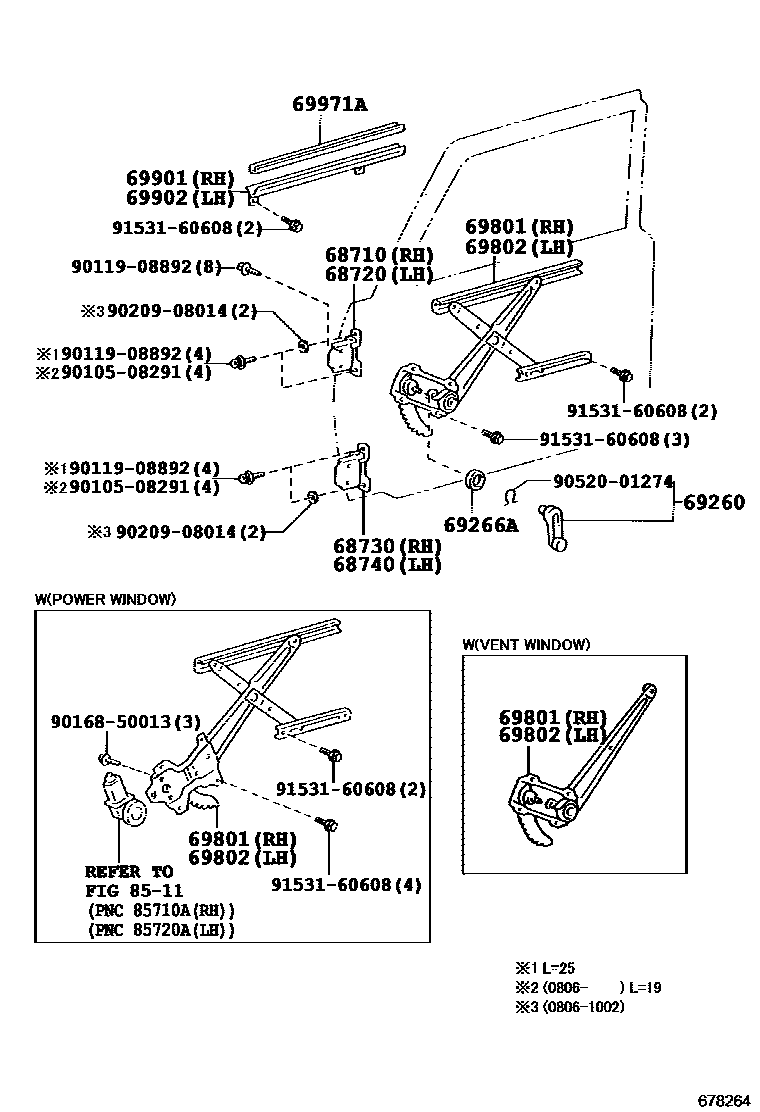

FRONT DOOR WINDOW REGULATOR & HINGE

0001 1 0002 1

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-60040iGRJ71,78..RHD200701-202508

main68710-60040iVDJ79..GCC;VDJ76,78,L76;VDJL78,79..STD202309-202409

POWER DOOR LOCK-WITH

main68710-60040iVDJ79..GCC;VDJ76,78,L76;VDJL78,79..STD202309-202409

POWER DOOR LOCK-WITH&OUTSIDE REAR VIEW MIRROR-*DRS(*DM)&*PAS(ROUND&REMORT&PAINTED)

main68710-60040iGDJL78,GRJ71..STD;GDJ76,78,79,L76,L79,GRJ76,78,79,HZJ7#202309

OUTSIDE REAR VIEW MIRROR-*DRS(*DM) & *PAS(ROUND & E MARK)

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-60040iFZJ7#200701-202508

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-60020iFZJ7#200701-202508

main68730-60020iVDJ79..GCC;VDJ76,78,L76;VDJL78,79..STD202309-202409

POWER DOOR LOCK-WITH

main68730-60020iVDJ79..GCC;VDJ76,78,L76;VDJL78,79..STD202309-202409

POWER DOOR LOCK-WITH&OUTSIDE REAR VIEW MIRROR-*DRS(*DM)&*PAS(ROUND&REMORT&PAINTED)

main68730-60020iGDJL78,GRJ71..STD;GDJ76,78,79,L76,L79,GRJ76,78,79,HZJ7#202309

OUTSIDE REAR VIEW MIRROR-*DRS(*DM) & *PAS(ROUND & E MARK)

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-60020iFZJ7#200701-202508

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-10040-B7iVDJ76200701-201608

H PACKAGE,BLUE GRAY,TRIM1#

sub69260-10040

sub69260-16010

main69260-10040-B7iFZJ7#200701-202508

BLUE GRAY,TRIM1#

sub69260-10040

sub69260-16010

main69260-10040-B7iFZJ7#200701-202309

POWER WINDOW-WITH,BLUE GRAY,TRIM1#

sub69260-10040

sub69260-16010

main69260-10040-B7iHZJ76;GRJ76,78..LHD;GRJ71..LHD..STD;GRJ79,HZJ71,78,79,VDJ78,79..STD200701-202309

POWER WINDOW-WITHOUT,BLUE GRAY,TRIM1#

sub69260-10040

sub69260-16010

main69260-10040-E4iGRJ79..LHD..PIC..GEN..CBU200701-202309

POWER WINDOW-WITH,LIGHT OAK,TRIM4#

sub69260-10040

sub69260-16010

main69260-10040-E4iGRJ79..LHD..PIC..GEN..CBU200701-202309

POWER WINDOW-WITHOUT,LIGHT OAK,TRIM4#

sub69260-10040

sub69260-16010

main69260-10040-E4iVDJ79..DCB;GRJ76,78..LHD;GRJ79..STD..CBU;GRJ71..LHD..HT..STD;HZJ7#..(DCB,HT,PIC)..CBU200701-202508

LIGHT OAK,TRIM4#

sub69260-10040

sub69260-16010

main69260-10040-E4iVDJ79..DCB;GRJ76,78..LHD;GRJ79..STD..CBU;GRJ71..LHD..HT..STD;HZJ7#..(DCB,HT,PIC)..CBU200701-201608

H PACKAGE,LIGHT OAK,TRIM4#

sub69260-10040

sub69260-16010

69266AESCUTCHEON, DOOR REGULATOR HANDLE(FOR FRONT DOOR)

main69266-22010iHZJ76;GRJ76,78..LHD;GRJ71..LHD..STD;GRJ79,HZJ71,78,79,VDJ78,79..STD200701-202309

POWER WINDOW-WITHOUT

main69266-22010iHZJ78,79..GEN;GRJ76,VDJ76..LHD;GRJ71,78,79,HZJ71,76,VDJ78,79,L78,L79..STD..(CBU,IV)200701-202309

POWER WINDOW-WITH

main69266-22010iVDJ79..STD..GCC;VDJ78,L78,L79..STD202309-202508

main69266-22010iFZJ7#200701-201608

H PACKAGE

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-60020iVDJ7#..LX200701-201410

POWER WINDOW-WITH

sub69801-60100

main69801-60100iVDJ79..RHD..STD201411-202508

POWER WINDOW-WITH

main69810-60090iGRJ71,79..LX;GRJ71,78..RHD;GRJ71,HZJ71..SOT200701-201208

sub69810-60330

main69810-60090iHZJ76;GRJ76,78..LHD;GRJ71..LHD..HT..STD;GRJ79,HZJ71,78,79,VDJ78,79..(DCB,HT,PIC)..STD200701-201410

POWER WINDOW-WITHOUT

sub69810-60330

main69810-60330iGRJ71,HZJ71..SOT201411-202309

POWER WINDOW-WITHOUT

main69810-60330iVDJ79..STD..GCC;VDJ78,L78,L79..STD201608-202508

main69810-60330iGRJ71,HZJ71..SOT201411-202309

FRONT DOOR-SASH DETACHABLE & WITHOUT(VENT WINDOW)

main69810-60340iGRJ71,78,79,HZJ71,78,79,VDJ78,79..(HT,PIC)..STD201411-202309

FRONT DOOR-SASH FIXED & WITH(VENT WINDOW)

main69810-60340iGRJ71,HZJ71..SOT201608-202309

FRONT DOOR-SASH FIXED & W(VENT WINDOW) & W(ANCAP)

main69810-90K01iGRJ71,HZJ71..SOT201208-201410

sub69810-60340

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-60020iVDJ7#..LX200701-201410

POWER WINDOW-WITH

sub69802-60100

main69802-60100iVDJ76..GCC;GRJ79..STD..CBU;HZJ79..GEN..CBU;GRJ71,VDJ79..(DCB,HT)..STD;GRJ76,78,HZJ71,VDJ78..HT..(GCC,GEN);HZJ76,78,VDJL79..(DCB,HT)..(ARL,GEN)201411-202508

POWER WINDOW-WITH

main69820-60090iHZJ76;GRJ76,78..LHD;GRJ71..LHD..HT..STD;GRJ79,HZJ71,78,79,VDJ78,79..(DCB,HT,PIC)..STD200701-201410

POWER WINDOW-WITHOUT

sub69820-60300

main69820-60090iFZJ7#200701-201208

sub69820-60300

main69820-60300iGDJ78,79,L7#,GRJ7#,HZJ7#..(DCB,HT,PIC)..STD201411-202309

FRONT DOOR-SASH DETACHABLE & WITHOUT(VENT WINDOW)

main69820-60300iVDJ76..GCC;HZJ78,79..GEN;GRJ76,78,HZJ71..HT;GRJ71,79,HZJ76,VDJ78,79,L78,L79..(DCB,HT,PIC)..STD..(CBU,IV)201411-202309

POWER WINDOW-WITHOUT

main69820-60300iHZJ76,78,79..GCC201608-202508

main69820-60310iGDJ79,L79..PIC..STD..IV201608-202309

FRONT DOOR-SASH FIXED & W(VENT WINDOW) & W(ANCAP)

main69820-60310iGRJ71,HZJ71..SOT201411-202309

FRONT DOOR-SASH FIXED & WITH(VENT WINDOW)

main69820-90K01iGRJ71,HZJ71..SOT201208-201410

sub69820-60310

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-60020iHZJ76,79..(DCB,HT)..GCC200701-202508

main69901-90K00iHZJ78,79..(HT,PIC)..GEN;GRJ71,78,79,HZJ71,VDJ78,79,L78,L79..(HT,PIC)..(CBU,IV)201608-202309

FRONT DOOR-SASH DETACHABLE & WITHOUT(VENT WINDOW)

main69901-90K00iVDJL79..PIC..STD;VDJ78,79,L78..(HT,PIC)..(ARL,GCC)..CBU200701-202508

main69901-90K01iVDJ79,L79..PIC..IV201608-202309

FRONT DOOR-SASH FIXED & W(VENT WINDOW) & W(ANCAP)

main69901-90K01iGDJ79,L79..PIC..IV201608-202309

FRONT DOOR-SASH FIXED & WITH(VENT WINDOW)

main69901-90K01iGRJ71,HZJ71..SOT201208-201608

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69902-60020iFZJ76200701-202508

main69902-90K00iVDJ79,L79..PIC..IV201608-202309

FRONT DOOR-SASH FIXED & WITH(VENT WINDOW)

main69902-90K00iGRJ71,HZJ71..SOT201208-201608

main69902-90K00iGDJ79,L79..PIC..IV201608-202309

FRONT DOOR-SASH FIXED & W(VENT WINDOW) & W(ANCAP)

main69902-90K01iFZJ71,78,79200701-202508

main69902-90K01iGRJ71,HZJ71..SOT201608-202309

FRONT DOOR-SASH DETACHABLE & WITHOUT(VENT WINDOW)

69971AFILLER, FRONT DOOR GLASS CHANNEL

main69971-60020iFZJ76200701-202508

main69971-90K00iGRJ71,78..LHD;GRJ79,HZJ71,78,79,VDJ78,79..HT,PIC,SOT200701-202508

8511

9010508291

main90105-08291

9011908892

main90119-08892

9016850013

main90168-50013

9020908014

main90209-08014

9052001274

main90520-01274

9153160608

main91531-60608

18 parts on this diagram · 2 diagrams in section
