FRONT DOOR VENTILATOR WINDOW

62735KRETAINER, QUARTER WINDOW HINGE

main62735-89101iGRJ71,HZJ71..SOT201208-202309

FRONT DOOR-SASH DETACHABLE & WITHOUT(VENT WINDOW)

main62735-89101iGRJ71,HZJ71..SOT201608-202309

FRONT DOOR-SASH FIXED & WITH(VENT WINDOW)

main62735-89101iGRJ71,HZJ71..SOT201608-202309

FRONT DOOR-SASH FIXED & W(VENT WINDOW) & W(ANCAP)

67463WASHER, FRONT DOOR VENTILATING WIHDOW LOWER PIVOT

main67463-20011iGRJ71,HZJ71..SOT201208-202309

FRONT DOOR-SASH DETACHABLE & WITHOUT(VENT WINDOW)

main67463-20011iGRJ71,HZJ71..SOT201608-202309

FRONT DOOR-SASH FIXED & WITH(VENT WINDOW)

main67463-20011iGRJ71,HZJ71..SOT201608-202309

FRONT DOOR-SASH FIXED & W(VENT WINDOW) & W(ANCAP)

67466WASHER, LOCK(FOR VENT WINDOW GLASS FRAME)

main67466-89101iGRJ71,HZJ71..SOT201208-202309

FRONT DOOR-SASH DETACHABLE & WITHOUT(VENT WINDOW)

main67466-89101iGRJ71,HZJ71..SOT201608-202309

FRONT DOOR-SASH FIXED & WITH(VENT WINDOW)

main67466-89101iGRJ71,HZJ71..SOT201608-202309

FRONT DOOR-SASH FIXED & W(VENT WINDOW) & W(ANCAP)

67501FRAME SUB-ASSY, VENT WINDOW GLASS, RH

main67505-90K00iGRJ71,HZJ71..SOT201208-202309

FRONT DOOR-SASH DETACHABLE & WITHOUT(VENT WINDOW)

main67505-90K00iGRJ71,HZJ71..SOT201608-202309

FRONT DOOR-SASH FIXED & WITH(VENT WINDOW)

main67505-90K00iGRJ71,HZJ71..SOT201608-202309

FRONT DOOR-SASH FIXED & W(VENT WINDOW) & W(ANCAP)

67502FRAME SUB-ASSY, VENT WINDOW GLASS, LH

main67506-90K00iGRJ71,HZJ71..SOT201208-202309

FRONT DOOR-SASH DETACHABLE & WITHOUT(VENT WINDOW)

main67506-90K00iGRJ71,HZJ71..SOT201608-202309

FRONT DOOR-SASH FIXED & WITH(VENT WINDOW)

main67506-90K00iGRJ71,HZJ71..SOT201608-202309

FRONT DOOR-SASH FIXED & W(VENT WINDOW) & W(ANCAP)

67503ABAR SUB-ASSY, FRONT DOOR DIVISION, RH

main67503-90K00iGRJ71,HZJ71..SOT201208-202309

FRONT DOOR-SASH DETACHABLE & WITHOUT(VENT WINDOW)

main67503-90K00iGRJ71,HZJ71..SOT201608-202309

FRONT DOOR-SASH FIXED & WITH(VENT WINDOW)

main67503-90K00iGRJ71,HZJ71..SOT201608-202309

FRONT DOOR-SASH FIXED & W(VENT WINDOW) & W(ANCAP)

67504ABAR SUB-ASSY, FRONT DOOR DIVISION, LH

main67504-90K00iGRJ71,HZJ71..SOT201208-202309

FRONT DOOR-SASH DETACHABLE & WITHOUT(VENT WINDOW)

main67504-90K00iGRJ71,HZJ71..SOT201608-202309

FRONT DOOR-SASH FIXED & WITH(VENT WINDOW)

main67504-90K00iGRJ71,HZJ71..SOT201608-202309

FRONT DOOR-SASH FIXED & W(VENT WINDOW) & W(ANCAP)

67507PIVOT SUB-ASSY, VENT WINDOW, UPPER RH

main67507-90K00iGRJ71,HZJ71..SOT201208-202309

FRONT DOOR-SASH DETACHABLE & WITHOUT(VENT WINDOW)

main67507-90K00iGRJ71,HZJ71..SOT201608-202309

FRONT DOOR-SASH FIXED & WITH(VENT WINDOW)

main67507-90K00iGRJ71,HZJ71..SOT201608-202309

FRONT DOOR-SASH FIXED & W(VENT WINDOW) & W(ANCAP)

67508PIVOT SUB-ASSY, VENT WINDOW, UPPER LH

main67508-90K00iGRJ71,HZJ71..SOT201208-202309

FRONT DOOR-SASH DETACHABLE & WITHOUT(VENT WINDOW)

main67508-90K00iGRJ71,HZJ71..SOT201608-202309

FRONT DOOR-SASH FIXED & WITH(VENT WINDOW)

main67508-90K00iGRJ71,HZJ71..SOT201608-202309

FRONT DOOR-SASH FIXED & W(VENT WINDOW) & W(ANCAP)

67528PLATE, VENT WINDOW UPPER PIVOT

main67528-89101iGRJ71,HZJ71..SOT201208-202309

FRONT DOOR-SASH DETACHABLE & WITHOUT(VENT WINDOW)

main67528-89101iGRJ71,HZJ71..SOT201608-202309

FRONT DOOR-SASH FIXED & WITH(VENT WINDOW)

main67528-89101iGRJ71,HZJ71..SOT201608-202309

FRONT DOOR-SASH FIXED & W(VENT WINDOW) & W(ANCAP)

67533ESEAL, FRONT DOOR DIVISION BAR, RH

main67533-90K00iGRJ71,HZJ71..SOT201208-202309

FRONT DOOR-SASH DETACHABLE & WITHOUT(VENT WINDOW)

main67533-90K00iGRJ71,HZJ71..SOT201608-202309

FRONT DOOR-SASH FIXED & WITH(VENT WINDOW)

main67533-90K00iGRJ71,HZJ71..SOT201608-202309

FRONT DOOR-SASH FIXED & W(VENT WINDOW) & W(ANCAP)

67534ESEAL, FRONT DOOR DIVISION BAR, LH

main67534-90K00iGRJ71,HZJ71..SOT201208-202309

FRONT DOOR-SASH DETACHABLE & WITHOUT(VENT WINDOW)

main67534-90K00iGRJ71,HZJ71..SOT201608-202309

FRONT DOOR-SASH FIXED & WITH(VENT WINDOW)

main67534-90K00iGRJ71,HZJ71..SOT201608-202309

FRONT DOOR-SASH FIXED & W(VENT WINDOW) & W(ANCAP)

67577ASTOPER, FRONT DOOR BENT WINDOW OPENING, RH

main67577-90A00iGRJ71,HZJ71..SOT201208-202309

FRONT DOOR-SASH DETACHABLE & WITHOUT(VENT WINDOW)

main67577-90A00iGRJ71,HZJ71..SOT201608-202309

FRONT DOOR-SASH FIXED & WITH(VENT WINDOW)

main67577-90A00iGRJ71,HZJ71..SOT201608-202309

FRONT DOOR-SASH FIXED & W(VENT WINDOW) & W(ANCAP)

68121GLASS, VENT WINDOW, RH

main68121-60050iGRJ71,HZJ71..SOT201208-201608

*TEM,T=4.0,GREEN

main68121-60050iGRJ71,HZJ71..SOT201208-201608

*TEM,T=4.0,GREEN,FRONT DOOR-SASH DETACHABLE & WITHOUT(VENT WINDOW)

main68121-60050iGRJ71,HZJ71..SOT201608-202309

FRONT DOOR-SASH FIXED & WITH(VENT WINDOW)

main68121-60050iGRJ71,HZJ71..SOT201608-202309

FRONT DOOR-SASH DETACHABLE & WITHOUT(VENT WINDOW)

main68121-60050iGRJ71,HZJ71..SOT201608-202309

FRONT DOOR-SASH FIXED & W(VENT WINDOW) & W(ANCAP)

68122GLASS, VENT WINDOW, LH

main68122-60010iGRJ71,HZJ71..SOT201208-201608

*TEM,T=4.0,GREEN

main68122-60010iGRJ71,HZJ71..SOT201208-201608

*TEM,T=4.0,GREEN,FRONT DOOR-SASH DETACHABLE & WITHOUT(VENT WINDOW)

main68122-60010iGRJ71,HZJ71..SOT201608-202309

FRONT DOOR-SASH FIXED & WITH(VENT WINDOW)

main68122-60010iGRJ71,HZJ71..SOT201608-202309

FRONT DOOR-SASH DETACHABLE & WITHOUT(VENT WINDOW)

main68122-60010iGRJ71,HZJ71..SOT201608-202309

FRONT DOOR-SASH FIXED & W(VENT WINDOW) & W(ANCAP)

68175AWEATHERSTRIP, FRONT DOOR VENT WINDOW GLASS, RH

main68175-90K00iGRJ71,HZJ71..SOT201208-202309

FRONT DOOR-SASH DETACHABLE & WITHOUT(VENT WINDOW)

main68175-90K00iGRJ71,HZJ71..SOT201608-202309

FRONT DOOR-SASH FIXED & WITH(VENT WINDOW)

main68175-90K00iGRJ71,HZJ71..SOT201608-202309

FRONT DOOR-SASH FIXED & W(VENT WINDOW) & W(ANCAP)

68176AWEATHERSTRIP, DOOR VENT WINDOW GLASS, LH

main68176-90K00iGRJ71,HZJ71..SOT201208-202309

FRONT DOOR-SASH DETACHABLE & WITHOUT(VENT WINDOW)

main68176-90K00iGRJ71,HZJ71..SOT201608-202309

FRONT DOOR-SASH FIXED & WITH(VENT WINDOW)

main68176-90K00iGRJ71,HZJ71..SOT201608-202309

FRONT DOOR-SASH FIXED & W(VENT WINDOW) & W(ANCAP)

68181AWEATHERSTRIP, FRONT DOOR VENT WINDOW, RH

main68181-90K00iGRJ71,HZJ71..SOT201208-202309

FRONT DOOR-SASH DETACHABLE & WITHOUT(VENT WINDOW)

main68181-90K00iGRJ71,HZJ71..SOT201608-202309

FRONT DOOR-SASH FIXED & WITH(VENT WINDOW)

main68181-90K00iGRJ71,HZJ71..SOT201608-202309

FRONT DOOR-SASH FIXED & W(VENT WINDOW) & W(ANCAP)

68182AWEATHERSTRIP, DOOR VENT WINDOW, LH

main68182-90K00iGRJ71,HZJ71..SOT201208-202309

FRONT DOOR-SASH DETACHABLE & WITHOUT(VENT WINDOW)

main68182-90K00iGRJ71,HZJ71..SOT201608-202309

FRONT DOOR-SASH FIXED & WITH(VENT WINDOW)

main68182-90K00iGRJ71,HZJ71..SOT201608-202309

FRONT DOOR-SASH FIXED & W(VENT WINDOW) & W(ANCAP)

9015140002

main90151-40002

9016130002

main90161-30002

9020208003

main90202-08003

9043004003

main90430-04003

9043007001

main90430-07001

9050140205

main90501-40205

9153160608

main91531-60608

9323925010

main93239-25010

9413060600

main94130-60600

9461310601

main94613-10601

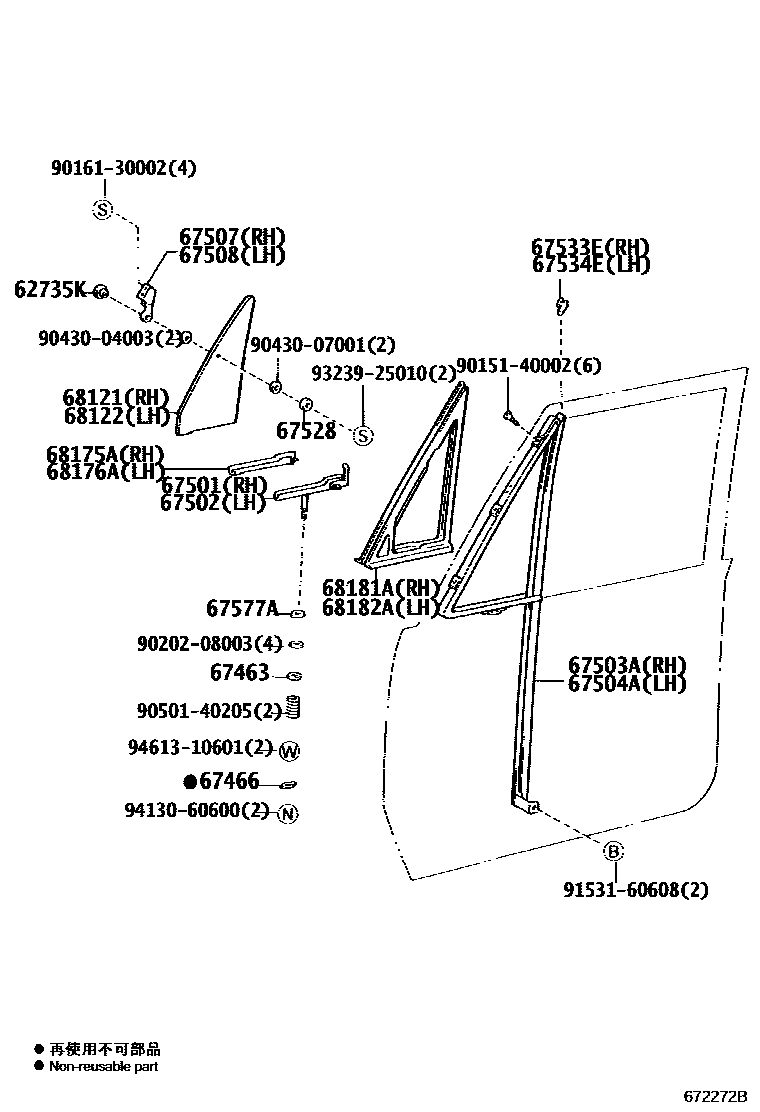

29 parts on this diagram · 1 diagram in section
