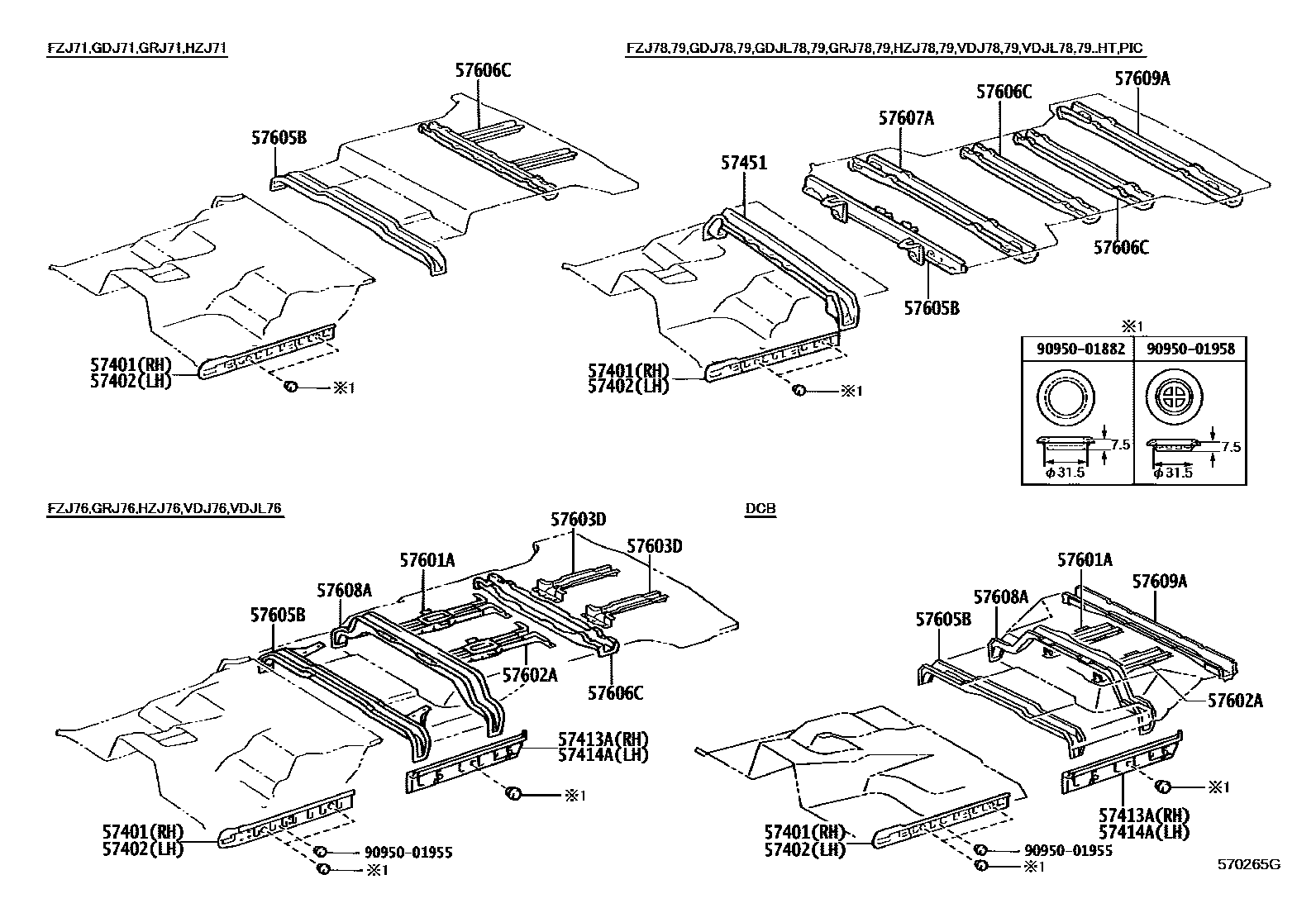

FLOOR MEMBER
57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57413AMEMBER, FLOOR SIDE, INNER REAR RH
57414AMEMBER, FLOOR SIDE, INNER REAR LH
57451MEMBER, FRONT FLOOR CROSS
sub57408-60061
KUWAIT SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)&FRONT SEAT-BENCH SEAT
SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)&FRONT SEAT-BENCH SEAT
UAE SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)&FRONT SEAT-BENCH SEAT
OMAN SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)&FRONT SEAT-BENCH SEAT
QATAR SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)&FRONT SEAT-BENCH SEAT
BAHRAIN SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)&FRONTSEAT-BENCH SEAT
YEMEN SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)&FRONT SEAT-BENCH SEAT
IRAQ SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)&FRONT SEAT-BENCH SEAT
JORDAN SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)&FRONT SEAT-BENCH SEAT
FRONT SEAT-BENCH SEAT
sub57408-60071
FRONT SEAT-BENCH SEAT
CKD PACKAGE(PORTUGAL)&FRONT SEAT-SEPARATE SEAT
sub57408-60081
CKD PACKAGE(KENYA)&FRONT SEAT-SEPARATE SEAT
sub57408-60081
CKD PACKAGE(BANGLADESH)&HEATER-WITH(BOOST VENTILATOR)&FRONT SEAT-SEPARATE SEAT
sub57408-60081
SOUTH AFRICA SPEC&FRONT SEAT-SEPARATE SEAT&REAR SEAT-TRANSVERSE SEAT
sub57408-60081
SOUTH AFRICA SPEC&CKD PACKAGE(PORTUGAL)&FRONT SEAT-SEPARATE SEAT
sub57408-60081
SOUTH AFRICA SPEC&REAR WHEEL BRAKE-DISC FS14 18V&FRONT SEAT-SEPARATE SEAT&REAR SEAT-TRANSVERSE SEAT
sub57408-60081
KUWAIT SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)&FRONT SEAT-SEPARATE SEAT
YEMEN SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)&FRONT SEAT-SEPARATE SEAT
IRAQ SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)&FRONT SEAT-SEPARATE SEAT
JORDAN SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)&FRONT SEAT-SEPARATE SEAT
FRONT SEAT-SEPARATE SEAT
SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)&FRONT SEAT-SEPARATE SEAT
UAE SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)&FRONT SEAT-SEPARATE SEAT
OMAN SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)&FRONT SEAT-SEPARATE SEAT
QATAR SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)&FRONT SEAT-SEPARATE SEAT
BAHRAIN SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)&FRONTSEAT-SEPARATE SEAT
SOUTH AFRICA SPEC&FRONT SEAT-SEPARATE SEAT&REAR SEAT-TRANSVERSE SEAT(UNITED FOLDING)
EGYPT SPEC&FRONT SEAT-SEPARATE SEAT
EGYPT SPEC&FRONT SEAT-SEPARATE SEAT&SEAT BELT WARNING-WITH(DRIVER & PASSENGER)
GHANA SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO2&HIGH ALTITUDE COMPENSATOR-WITH&HEATER-WITH(FRONT & ALUMI CORE)&FRONT SEAT-SEPARATE SEAT
SOUTH AFRICA SPEC&CKD PACKAGE(PORTUGAL)&FRONT SEAT-SEPARATE SEAT
SOUTH AFRICA SPEC&FRONT SEAT-SEPARATE SEAT&REAR SEAT-TRANSVERSE SEAT
57601AMEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57602AMEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57603DMEMBER SUB-ASSY, REAR FLOOR SIDE REAR, CENTER
57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
FRONT SEAT-BENCH SEAT
AUXILIARY FUEL TANK-WITH(1 TANK), BACK DOOR&FRONT SEAT-BENCH SEAT
REAR SEAT-TRANSVERSE SEAT(UNITED FOLDING)&REAR SEAT BELT-3 POINT TYPE(*ELR) X 2 &2POINT TYPE X 1
REAR SEAT-TRANSVERSE SEAT(UNITED FOLDING)
AUXILIARY FUEL TANK-WITH(1 TANK), BACK DOOR&REAR SEAT-TRANSVERSE SEAT(UNITED FOLDING)&REAR SEAT BELT-3 POINT TYPE(*ELR) X 2 & 2POINT TYPE X 1
AUXILIARY FUEL TANK-WITH(1 TANK), BACK DOOR&REAR SEAT-TRANSVERSE SEAT(UNITED FOLDING)
AUXILIARY FUEL TANK-WITH(1 TANK), BACK DOOR&REAR SEAT-TRANSVERSE SEAT&REAR SEAT BELT-3 POINT TYPE(*ELR) X 2 & 2POINT TYPE X 1
REAR SEAT-TRANSVERSE SEAT&REAR SEAT BELT-3 POINT TYPE(*ELR) X 2 & 2POINT TYPE X 1
AUXILIARY FUEL TANK-WITH(1 TANK), BACK DOOR&REAR SEAT-TRANSVERSE SEAT
REAR SEAT-TRANSVERSE SEAT
JORDAN SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)&FRONT SEAT-SEPARATE SEAT
AUXILIARY FUEL TANK-WITH(1 TANK), BACK DOOR&FRONT SEAT-SEPARATE SEAT
main57605-60210iGRJ79..RHD..DCB;GRJ79..DCB..5F..STD..GCC;GDJ79,HZJ79..DCB..5F..STD..CBU200701-202409
FRONT SEAT-SEPARATE SEAT
EGYPT SPEC
QATAR SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)&FRONT SEAT-SEPARATE SEAT
BAHRAIN SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)&FRONTSEAT-SEPARATE SEAT
KUWAIT SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)&FRONT SEAT-SEPARATE SEAT
YEMEN SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)&FRONT SEAT-SEPARATE SEAT
IRAQ SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)&FRONT SEAT-SEPARATE SEAT
SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)&FRONT SEAT-SEPARATE SEAT
UAE SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)&FRONT SEAT-SEPARATE SEAT
OMAN SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)&FRONT SEAT-SEPARATE SEAT
FRONT SEAT-BENCH SEAT
YEMEN SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)&FRONT SEAT-BENCH SEAT
OMAN SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)&FRONT SEAT-BENCH SEAT
AUXILIARY FUEL TANK-WITH(1 TANK), BACK DOOR&FRONT SEAT-BENCH SEAT
SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)&FRONT SEAT-BENCH SEAT
FRONT SEAT-SEPARATE SEAT
AUXILIARY FUEL TANK-WITH(1 TANK), BACK DOOR&FRONT SEAT-SEPARATE SEAT
FRONT SEAT-BENCH SEAT
FRONT SEAT-BENCH SEAT
AUXILIARY FUEL TANK-WITH(1 TANK), BACK DOOR&FRONT SEAT-BENCH SEAT
sub57605-60290
sub57605-60220
FRONT SEAT-SEPARATE SEAT&REAR SEAT-TRANSVERSE SEAT
AUXILIARY FUEL TANK-WITH(1 TANK), BACK DOOR&FRONT SEAT-SEPARATE SEAT&REAR SEAT-TRANSVERSE SEAT
57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
REAR
REAR SEAT-TRANSVERSE SEAT
AUXILIARY FUEL TANK-WITH(1 TANK), BACK DOOR&REAR SEAT-TRANSVERSE SEAT
REAR SEAT-TRANSVERSE SEAT(UNITED FOLDING)
AUXILIARY FUEL TANK-WITH(1 TANK), BACK DOOR&REAR SEAT-TRANSVERSE SEAT(UNITED FOLDING)
AUXILIARY FUEL TANK-WITH(1 TANK), BACK DOOR&REAR SEAT-TRANSVERSE SEAT(UNITED FOLDING)&REAR SEAT BELT-3 POINT TYPE(*ELR) X 2 & 2POINT TYPE X 1
REAR SEAT-TRANSVERSE SEAT(UNITED FOLDING)&REAR SEAT BELT-3 POINT TYPE(*ELR) X 2 &2POINT TYPE X 1
AUXILIARY FUEL TANK-WITH(1 TANK), BACK DOOR&FRONT SEAT-SEPARATE SEAT&REAR SEAT-TRANSVERSE SEAT
FRONT SEAT-SEPARATE SEAT&REAR SEAT-TRANSVERSE SEAT
AUXILIARY FUEL TANK-WITH(1 TANK), BACK DOOR&REAR SEAT-TRANSVERSE SEAT&REAR SEAT BELT-3 POINT TYPE(*ELR) X 2 & 2POINT TYPE X 1
REAR SEAT-TRANSVERSE SEAT&REAR SEAT BELT-3 POINT TYPE(*ELR) X 2 & 2POINT TYPE X 1
FRONT
REAR
REAR
REAR SEAT-TRANSVERSE SEAT,REAR
57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3
REAR SEAT BELT-2 POINT TYPE X 8
REAR SEAT-TRANSVERSE SEAT
57608AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4
57609AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.5
sub57609-60031
sub57609-60051
REAR SEAT BELT-2 POINT TYPE X 8
SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)&REAR SEAT-WITHOUT
UAE SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)&REAR SEAT-WITHOUT
OMAN SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)&REAR SEAT-WITHOUT
QATAR SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)&REAR SEAT-WITHOUT
BAHRAIN SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)&REAR SEAT-WITHOUT
KUWAIT SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)&REAR SEAT-WITHOUT
YEMEN SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)&REAR SEAT-WITHOUT
IRAQ SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)&REAR SEAT-WITHOUT
REAR SEAT-WITHOUT
REAR SEAT-TRANSVERSE SEAT
9095001882
main90950-01882
9095001955
main90950-01955
9095001958
main90950-01958
16 parts on this diagram · 3 diagrams in section
