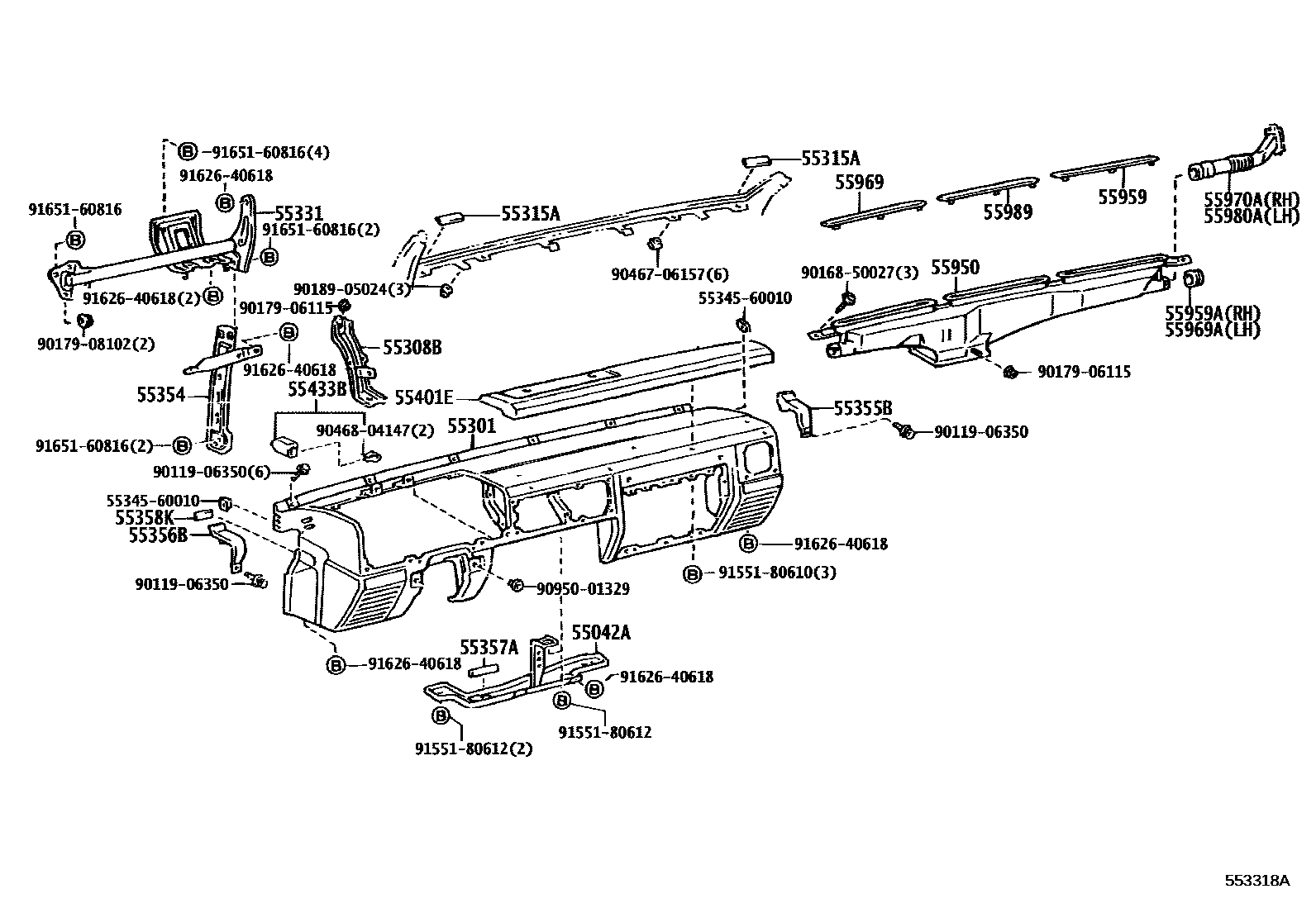

INSTRUMENT PANEL & GLOVE COMPARTMENT
55042AREINFORCEMENT SUB-ASSY, CLUSTER FINISH PANEL
55301PANEL SUB-ASSY, INSTRUMENT
SLATE GRAY,TRIM1#
MD.OAK,TRIM4#
SLATE GRAY,TRIM1#
MD.OAK,TRIM4#
SLATE GRAY,TRIM1#
GCC SPEC(EXCEPT SAUDI ARABIA & UAE),MD.OAK,TRIM4#
main55301-60A40-B0iVDJ78;HZJ79..IV;HZJ76,79..LHD..(DCB,HT)..GEN;GRJ76,78,79,HZJ71..(HT,PIC)..STD;GRJ71,79,HZJ78,VDJ76..(DCB,HT)..GEN201608-202208
BLUISH GRAY,TRIM1#,2#
sub55301-60A41
sub55041-60011
sub55421-60141
sub55434-60021
sub55434-60031
main55301-60A41-B0iVDJ78,L78;HZJ76,79,VDJ79..LHD;GRJ7#,HZJ71,78,VDJ76..(DCB,HT,PIC)..(GCC,GEN)202208-202309
BLUISH GRAY,TRIM1#,2#
main55301-60A41-E0iVDJ79..CBU;VDJ79,L79..DCB..IV;GRJ7#,HZJ7#,VDJ76,78,L76,L78..DCB,HT,PIC202208-202309
OAK,TRIM4#
BLUISH GRAY,TRIM1#,2#
BLUISH GRAY,TRIM1#,2#
OAK,TRIM4#
BLUISH GRAY,TRIM1#,2#
BLUISH GRAY,TRIM1#
BLUISH GRAY,TRIM1#
OAK,TRIM4#
BLUISH GRAY,TRIM1#
REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK,SLATE GRAY,TRIM1#
REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK,MD.OAK,TRIM4#
REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK,SLATE GRAY,TRIM1#
REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK,MD.OAK,TRIM4#
GCC SPEC(EXCEPT SAUDI ARABIA & UAE)&REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK,SLATE GRAY,TRIM1#
GCC SPEC(EXCEPT SAUDI ARABIA & UAE)&REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK,MD.OAK,TRIM4#
REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK&HEADLAMP LEVELING DEVICE-WITH,SLATE GRAY,TRIM1#
SAUDI ARABIA SPEC&REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK,MD.OAK,TRIM4#
SAUDI ARABIA SPEC,SLATE GRAY,TRIM1#
SAUDI ARABIA SPEC,MD.OAK,TRIM4#
REAR DIFFERENTIAL-FINAL GEAR RATIO = 3.909, 4P, DIFF LOCK,SLATE GRAY,TRIM1#
REAR DIFFERENTIAL-FINAL GEAR RATIO = 3.909, 4P, DIFF LOCK,MD.OAK,TRIM4#
55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3
55315ASPACER, INSTRUMENT PANEL, NO.1
55354BRACE, INSTRUMENT PANEL TO FLOOR
55355BPLATE, INSTRUMENT PANEL, RH
SLATE GRAY,TRIM1#
MD.OAK,TRIM4#
BLUISH GRAY,TRIM1#
main55355-60220-B0iGDJ79..PIC..5F..LX;GDJ71,76..LHD..6FC..GEN;GDJ76,L76,L79..5F..LX..(ARL,GEN);GDJ78,L78,GRJ78,HZJ71,78,79..DCB,HT,PIC;GDJ79,L76,L79,GRJ71,76,79..(DCB,HT,PIC)..STD201608-202508
BLUISH GRAY,TRIM1#,2#
OAK,TRIM4#
BLUISH GRAY,TRIM1#
OAK,TRIM4#
55356BPLATE, INSTRUMENT PANEL, LH
SLATE GRAY,TRIM1#
MD.OAK,TRIM4#
main55356-60160-B0iVDJ79..DCB;HZJ76,79..RHD;GRJ79,VDJ79,L79..LX;HZJ79..LHD..PIC..GEN..CBU;GRJ71,76,79,VDJ76,L76,L79..(DCB,HT)..(ARL,GCC)201608-202508
BLUISH GRAY,TRIM1#,2#
BLUISH GRAY,TRIM1#
OAK,TRIM4#
BLUISH GRAY,TRIM1#
BLUISH GRAY,TRIM1#
OAK,TRIM4#
55357APROTECTOR, EDGE, NO.1
55358KCUSHION, INSTRUMENT PANEL, NO.4
55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY
55433BPANEL, INSTRUMENT PANEL FINISH, LOWER NO.2
main55433-60150-B0iHZJ79..IV;GRJ78,VDJ78,L78;HZJ76,79..LHD..(DCB,HT)..GEN;GRJ79,VDJ79,L79..PIC..STD..(CBU,IV);GRJ71,76,79,HZJ71,78,VDJ76..(DCB,HT,SOT)..GEN201608-202508
BLUISH GRAY,TRIM1#,2#
BLUISH GRAY,TRIM1#
OAK,TRIM4#
55950NOZZLE ASSY, DEFROSTER
HEATER-W(FRONT)
55959COVER, DEFROSTER NOZZLE OPENING, NO.1
55959ACOVER, DEFROSTER NOZZLE OPENING, NO.1
55969COVER, DEFROSTER NOZZLE OPENING, NO.2
55969ACOVER, DEFROSTER NOZZLE OPENING, NO.2
55970ADUCT ASSY, SIDE DEFROSTER, RH
SIDE DEFROSTER-WITH
55980ADUCT ASSY, SIDE DEFROSTER, LH
SIDE DEFROSTER-WITH
55989COVER, DEFROSTER NOZZLE OPENING, CENTER
5534560010GARNISH, GLOVE COMPARTMENT, UPPER
main55345-60010
9011906350
main90119-06350
9016850027
main90168-50027
9017906115
main90179-06115
9017908102
main90179-08102
9018905024
main90189-05024
9046706157
main90467-06157
9046804147
main90468-04147
9095001329
main90950-01329
9155180610
main91551-80610
9155180612
main91551-80612
9162640618
main91626-40618
9165160816
main91651-60816
33 parts on this diagram · 30 diagrams in section
