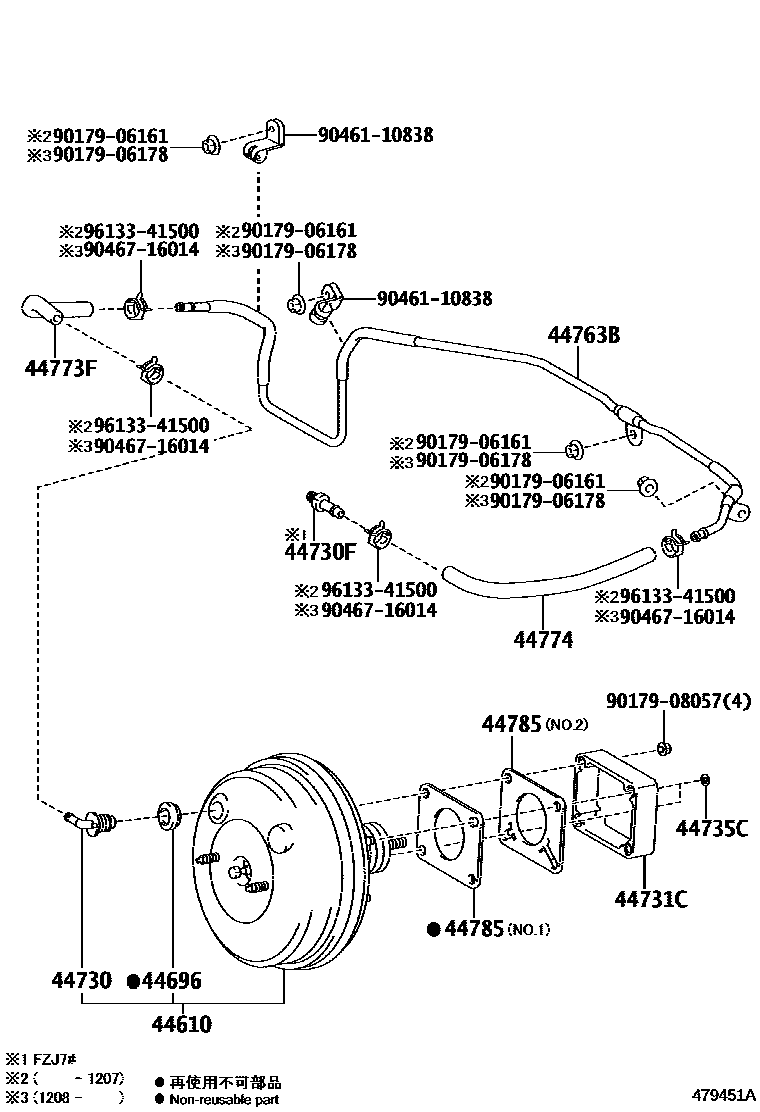

BRAKE BOOSTER & VACUUM TUBE
44610BOOSTER ASSY, BRAKE
ABS (ANTI-LOCK BRK SYSTM)-WITH(ACT DRY)
ABS (ANTI-LOCK BRAKE SYSTEM)-WITH
ABS (ANTI-LOCK BRK SYSTM)-WITH(ACT WET)
ABS (ANTI-LOCK BRK SYSTM)-WITH(ACT DRY)
REAR WHEEL BRAKE-DISC FS14 18V
REAR WHEEL BRAKE-DISC FS14 18V
44696GROMMET, CHECK VALVE
44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730FUNION, VACUUM HOSE(FOR MANIFOLD SIDE)
44731CBRACKET, BRAKE BOOSTER
44735CRING, BOOSTER BRACKET STOPPER
44763BTUBE, TUBE CONNECTOR TO TUBE CONNECTOR
44773FHOSE, UNION TO CHECK VALVE
TRANSFER & CENTER DIFFERENTIAL-BF1B(MAGNET)2-4SELECTOR&ABS (ANTI-LOCK BRAKE SYSTEM)-WITH
REAR WHEEL BRAKE-DISC FS14 18V
TRANSFER & CENTER DIFFERENTIAL-BF1B 2-4SELECTOR&REAR WHEEL BRAKE-DISC FS14 18V
TRANSFER & CENTER DIFFERENTIAL-BF1B(MAGNET)2-4SELECTOR&ABS (ANTI-LOCK BRAKE SYSTEM)-WITH(ACTIVE ELECTRIC TYPE)
ABS (ANTI-LOCK BRAKE SYSTEM)-WITH
ABS (ANTI-LOCK BRAKE SYSTEM)-WITH(ACTIVE ELECTRIC TYPE)
ABS (ANTI-LOCK BRAKE SYSTEM)-WITH
44774HOSE, UNION TO CONNECTOR TUBE
44785GASKET, BRAKE BOOSTER
NO.1
NO.2
9017906161
main90179-06161
9017906178
main90179-06178
9017908057
main90179-08057
9046110838
main90461-10838
9046716014
main90467-16014
9613341500
main96133-41500
16 parts on this diagram · 8 diagrams in section
