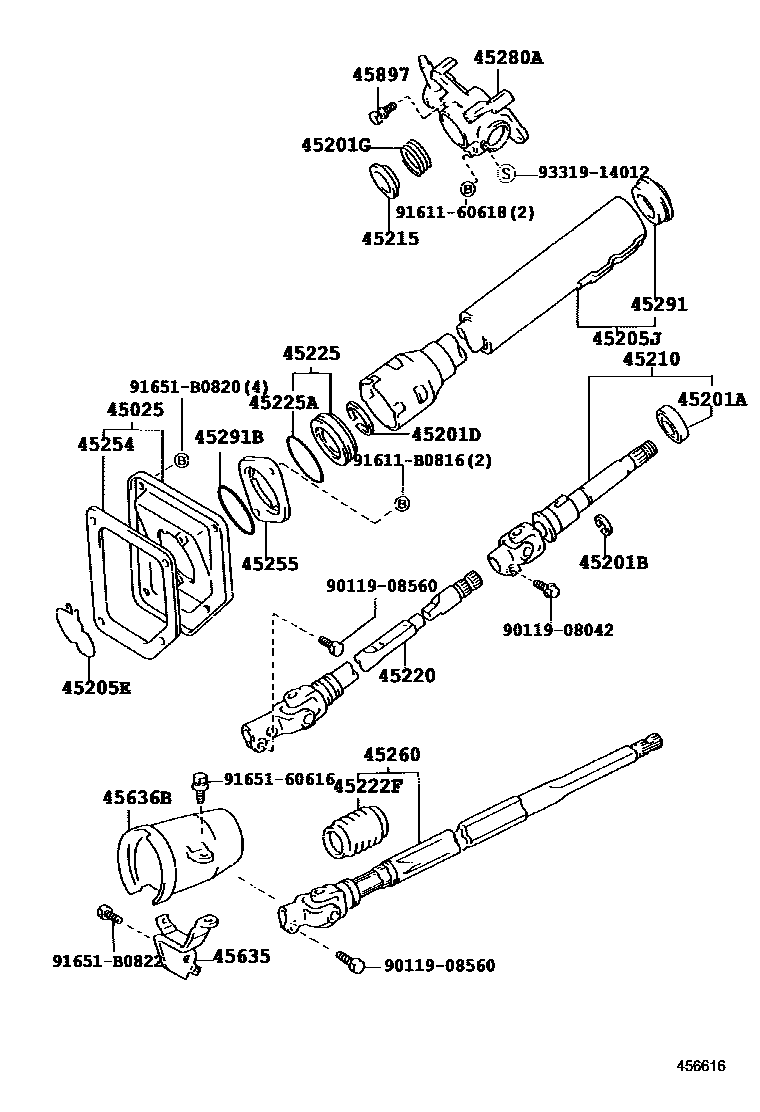

STEERING COLUMN & SHAFT

0001 1TILT STEERING(COLLAPSIBLE) 0002 1TILT STEERING 0003 1 0004 1 0007 1 0009 1

45025COVER, STEERING INTERMEDIATE SHAFT

main45025-60060iFZJ7#,HZJ7#,VDJ7#200701-200907

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-28001iFZJ7#,HZJ7#,VDJ7#200701-200907

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iFZJ7#,HZJ7#,VDJ7#200701-200907

T=1.20

main90520-21023iHZJ76,78,79..GEN;GRJ7#,HZJ71,VDJ7#,L7#..CBU,IV200907-202508

T=1.20

45201DRING(FOR STEERING MAIN SHAFT)

main96152-00300iFZJ7#,HZJ7#,VDJ7#200701-200907

45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)

main90501-45011iFZJ7#,HZJ7#,VDJ7#200701-200907

45205ERING, SNAP(FOR STEERING COLUMN TUBE)

main90521-01002iFZJ7#,HZJ7#,VDJ7#200701-200907

45205JTUBE SUB-ASSY, STEERING COLUMN, UPPER

main45205-22260iGRJ71,78..RHD200907-202508

main45205-60200iGDJ7#,L7#,GRJ7#..6FC202309

main45870-60050iFZJ7#,HZJ7#,VDJ7#200701-200907

45210SHAFT ASSY, STEERING MAIN

main45210-60061iFZJ7#,HZJ7#,VDJ7#200701-200907

main45210-60170iGRJ71,78..RHD200907-202508

45215COLLAR, MAIN SHAFT BEARING THRUST

main45215-22011iFZJ7#,HZJ7#,VDJ7#200701-200907

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-60101iFZJ7#,HZJ7#,VDJ7#200701-200907

main45220-60290iGRJ71,78..RHD200907-201608

sub45220-60310

main45220-60300iGRJ7#,HZJ7#..LHD200907-202309

main45220-60310iGDJ7#,L7#,GRJ79,HZJ7#..RHD201608-202508

main45220-60320iVDJ7#..GCC201701-202409

45222FCOVER, DUST

main45222-60031iFZJ7#,HZJ7#,VDJ7#200701-200907

45225BLOCK, BEARING

main45225-60010iFZJ7#,HZJ7#,VDJ7#200701-200907

45225ARING, O(FOR BEARING BLOCK)

main96711-24053iFZJ7#,HZJ7#,VDJ7#200701-200907

45254SHIELD, STEERING COLUMN HOLE

main45254-60050iFZJ7#,HZJ7#,VDJ7#200701-200907

45255PLATE, STEERING COLUMN HOLE COVER

main45255-60010iFZJ7#,HZJ7#,VDJ7#200701-200907

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-60100iFZJ7#,HZJ7#,VDJ7#200701-200907

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-52100iGDJ7#,L7#,GRJ7#..6FC202309

main45280-60281iFZJ7#,HZJ7#..GEN200701-200907

sub45280-60381

main45280-60381iFZJ71,76,79,HZJ76,78,79,VDJ7#..ARL,GCC200701-200907

main45280-60630iGRJ71,78..RHD200907-202309

main45280-60640iGRJ7#..LHD..(DCB,HT,PIC)..GEN201608-202309

COLOMBIA SPEC&GLOVE BOX-WITH(KEY)

main45280-60640iVDJ79..GCC;VDJL79..STD;VDJ76,78,L76,L78200907-202508

main45280-60640iGRJ79..RHD;GRJ7#..5F..GCC;GDJ76,78,79,L7#..5F201608-202309

VENEZUELA SPEC&GLOVE BOX-WITH(KEY)

45291SEAL, MAIN SHAFT UPPER DUST

main45282-22010iFZJ7#,HZJ7#,VDJ7#200701-200907

45291BRING, O(FOR STEERING COLUMN TUBE SUPPORT)

main90301-60122iFZJ7#,HZJ7#,VDJ7#200701-200907

45635SUPPORT, INTERMEDIATE LINK JOINT PROTECTOR

main45635-60050iVDJL79..DCB..STD;VDJ76,L76,L78..RHD200701-202508

main45635-60060iGRJ7#,HZJ71..LHD;HZJ76,78,79..LHD..GEN200701-201701

main45635-60061iGDJ7#,GRJ7#,HZJ7#..LHD201701-202409

main45635-60090iVDJ79..STD..IV;VDJL79..PIC..LX201608-202508

45636BPROTECTOR, INTERMEDIATE LINK JOINT

main45636-60051iFZJ71,78,79..RHD200701-202508

main45636-60061iHZJ76,78,79..GCC200701-201701

main45636-60062iVDJ7#..GCC201701-202409

main45636-60130iGDJ79,L79..PIC..IV201608-202508

45897BOLT, STEERING LOCK SET

main45897-12020iVDJ79..RHD;VDJL79..LX200907-202508

main45897-12030iFZJ7#,HZJ7#,VDJ7#200701-200907

main45897-12030iVDJ79..RHD;VDJL79..LX201608-202508

TILT

9011908042

main90119-08042

9011908560

main90119-08560

9161160618

main91611-60618

91611B0816

main91611-B0816

9165160616

main91651-60616

91651B0820

main91651-B0820

91651B0822

main91651-B0822

9331914012

main93319-14012

30 parts on this diagram · 6 diagrams in section
