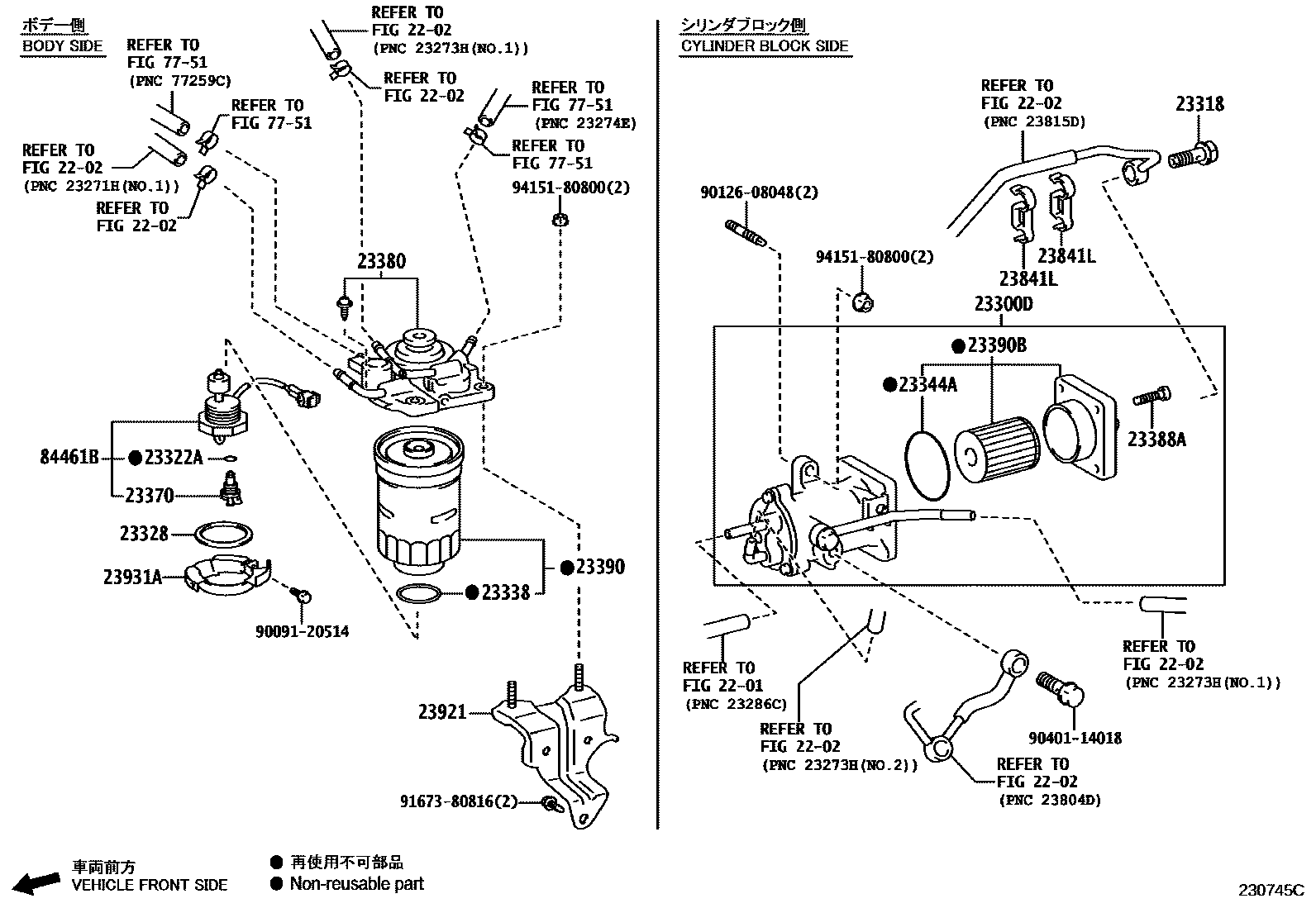

FUEL FILTER

0001 1 0002 1 0003 1

2201

2202

23300DFILTER ASSY, FUEL(FOR DIESEL)

main23300-11231i1GDFTV..GDJ7#,L7#202309

23318BOLT, UNION

main90401-T0009i1GDFTV..GDJ7#,L7#202309

23322PLUG, DRAIN(FOR FUEL FILTER)

main23388-64470i1VDFTV..VDJ79..RHD;1VDFTV..VDJL79..LX200701-202508

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i1HZ..HZJ7#200701-202508

23328GASKET(FOR FUEL FILTER)

main23385-30160i1GDFTV..GDJ7#,L7#202309

23338GASKET(FOR WARNING SWITCH)

main23344-64010i1GDFTV..GDJ7#,L7#202309

23344AGASKET, FUEL FILTER ELEMENT

main23385-11230i1GDFTV..GDJ7#,L7#202309

23370COCK ASSY, FUEL FILTER DRAIN

main23370-30010i1GDFTV..GDJ7#,L7#202309

23380CAP ASSY, FUEL FILTER

main23380-11300i1GDFTV..GDJ7#,L7#202309

main23380-51020i1VDFTV..VDJ7#200701-200811

sub23380-51021

main23380-51021i1VDFTV..VDJ7#200811-200907

main23380-51060i1VDFTV..VDJ79..RHD;1VDFTV..VDJL79..LX200907-202508

23388APLUG, FUEL FILTER DRAIN

main23388-11230i1GDFTV..GDJ7#,L7#202309

main23388-51020i1HZ..HZJ7#200701-202508

23390ELEMENT ASSY, FUEL FILTER

main23390-17540i1HZ..HZJ7#..GEN200811-201004

FUEL HEATER-WITH(PTC HEATER)

main23390-36760i1GDFTV..GDJ7#,L7#202309

main23390-51020i1VDFTV..VDJ7#200701-201004

sub23390-51070

main23390-51030i1VDFTV..VDJ7#,L7#..CBU,IV202001-202508

main23390-51070i1VDFTV..VDJ7#201004-202309

23390BELEMENT ASSY, FUEL FILTER, NO.2

main23390-11231i1GDFTV..GDJ7#,L7#202309

23841LCLAMP, FUEL PIPE

main23841-11050i1GDFTV..GDJ7#,L7#202309

23921SUPPORT, FUEL FILTER

main23921-11090i1GDFTV..GDJ7#,L7#202309

main23921-51010i1VDFTV..VDJ7#200701-202309

main23921-51040i1VDFTV..VDJ79..RHD;1VDFTV..VDJL79..LX201912-202508

23931ACOVER, FUEL FILTER

main23931-26031i1GDFTV..GDJ7#,L7#202309

7751

84461BSWITCH, LEVEL WARNING

main84461-60102iGDJ7#,L7#202309

9009120514

main90091-20514

9012608048

main90126-08048

9040114018

main90401-14018

9167380816

main91673-80816

9415180800

main94151-80800

24 parts on this diagram · 3 diagrams in section
