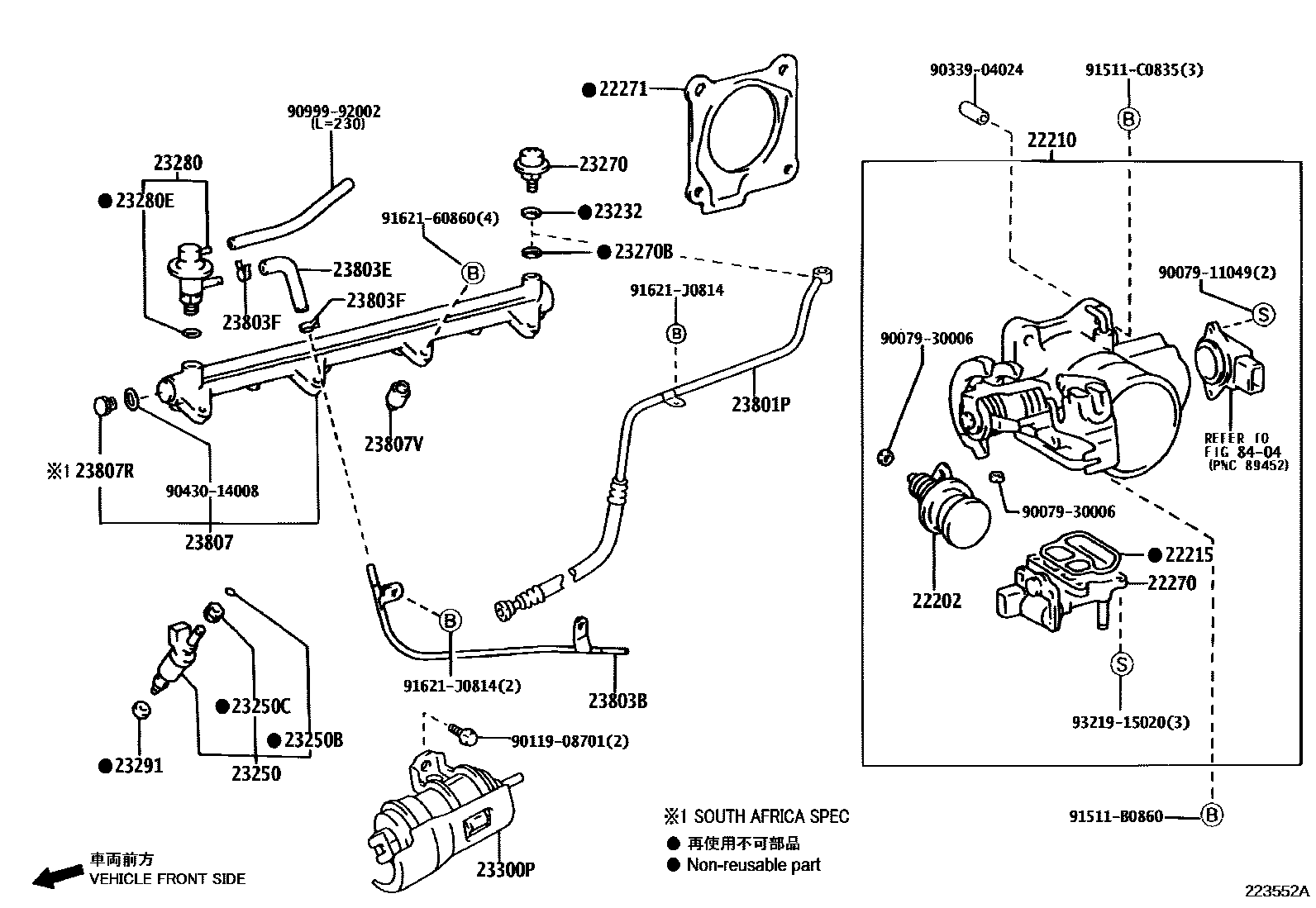

FUEL INJECTION SYSTEM
22202DASH POT SUB-ASSY
22210BODY ASSY, THROTTLE
22215GASKET, THROTTLE BODY COVER
22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22271GASKET, THROTTLE BODY
23232GASKET(FOR FUEL PUMP HOSE)
23250BRING, O(FOR FUEL INJECTOR)
23250CGROMMET(FOR FUEL INJECTOR)
23270BGASKET(FOR PULSATION DAMPER HOSE)
23280REGULATOR ASSY, FUEL PRESSURE
JAMAICA SPEC
COLOMBIA SPEC
23280ERING, O(FOR FUEL PRESSURE REGULATOR)
23291INSULATOR, INJECTOR VIBRATION
23300PFILTER, FUEL(FOR EFI)
23801PPIPE SUB-ASSY, FUEL, NO.1
23803BPIPE SUB-ASSY, FUEL, NO.3
23803EHOSE, FUEL
23803FCLIP
23807PIPE SUB-ASSY, FUEL DELIVERY
SOUTH AFRICA SPEC
23807RPLUG, FUEL DELIVARY PIPE
SOUTH AFRICA SPEC
23807VSPACER, NO.1(FOR DELIVERY PIPE)
8404
9007911049
main90079-11049
9007930006
main90079-30006
9011908701
main90119-08701
9033904024
main90339-04024
9043014008
main90430-14008
9099992002
main90999-92002
91511B0860
main91511-B0860
91511C0835
main91511-C0835
9162160860
main91621-60860
91621J0814
main91621-J0814
9321915020
main93219-15020
34 parts on this diagram · 3 diagrams in section
