ALTERNATOR

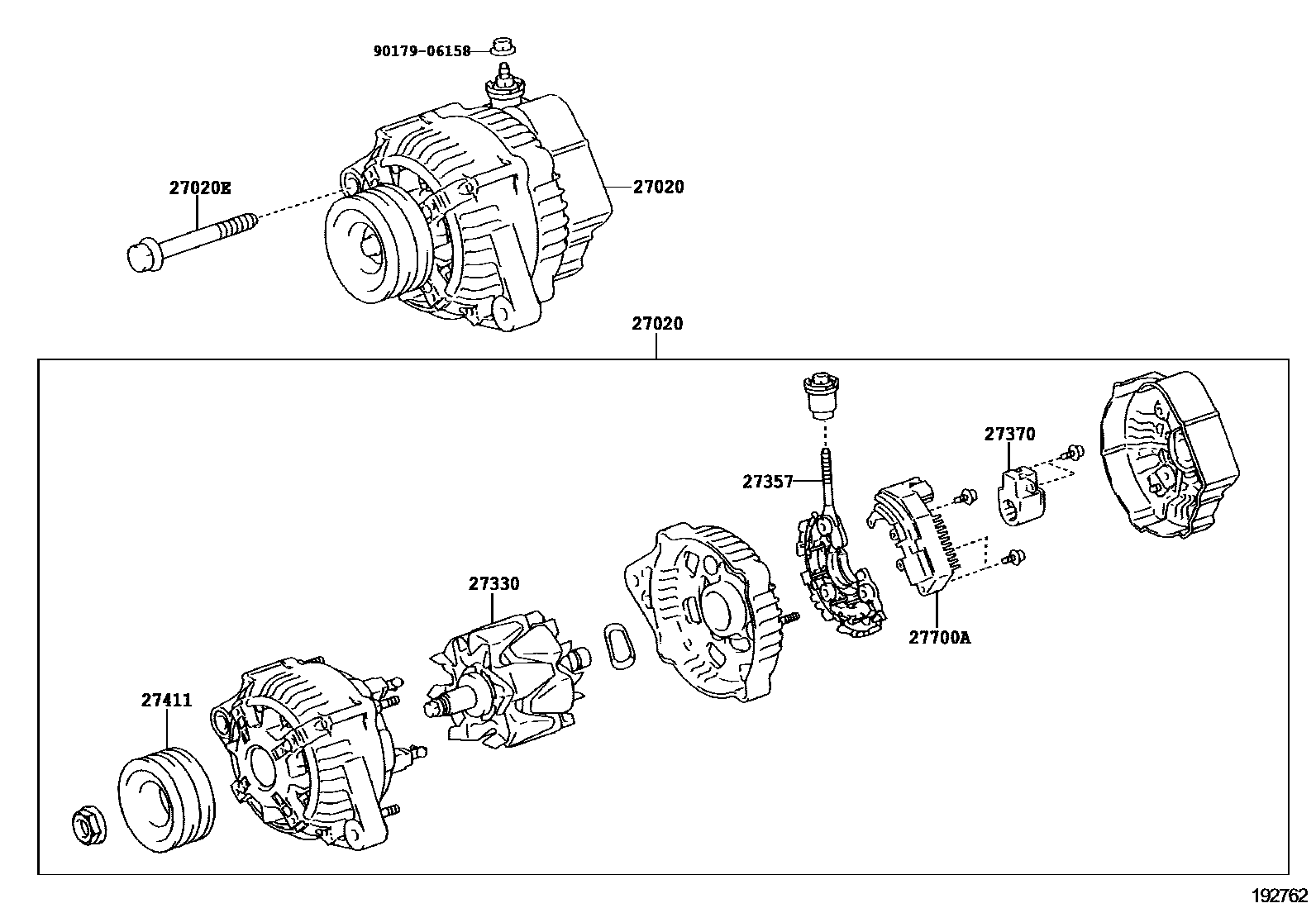

Parts diagram
27020ALTERNATOR ASSY
main27060-11350i202309
12V 130A
main27060-17220i200701-202410
12V 80A
main27060-17250i201702-201903
12V 110A,SPECIAL EDITION
main27060-17260i201909-202309
24W 30A,BANGLADESH SPEC&BATTERY-85D26R X 2(55AH X 2)
main27060-17260i200701-201909
24W 30A,CKD PACKAGE(BANGLADESH)
main27060-17260i201909-202309
24W 30A,BATTERY-85D26R X 2(55AH X 2)
main27060-17260i202309
24W 30A,BANGLADESH SPEC&BATTERY-80D26R X 2
main27060-17290i202410
12V 80A
main27060-31010i200907-200910
12V 80A
sub27060-31011
main27060-31011i200911-201408
12V 80A
main27060-31280i201408-202307
12V 80A
sub27060-31281
main27060-31281i202308-202309
12V 80A
main27060-31450i202309
12V 80A
main27060-51010i200701-202508
12V 130A
main27060-66090i200701-200907
12V 80A,ALTERNATOR-K3A-ME(80A)
main27060-66110i200701-200907
12V 70A
27020EBOLT(FOR ALTERNATOR)
main90105-10397i200701-200907
main91642-81065i200907-202309
27330ROTOR ASSY, ALTERNATOR
main27330-16390i200701-200907
ALTERNATOR-K3A-ME(80A)
main27330-21211i202308-202309
main27330-28050i201702-201704
SPECIAL EDITION
main27330-30130i200907-201408
main27330-33090i200701-202508
main27330-37220i202309
main27330-47310i201408-202308
main27330-58480i201909-202309
BATTERY-85D26R X 2(55AH X 2)
main27330-58480i200701-201909
CKD PACKAGE(BANGLADESH)
main27330-58480i201909-202309
BANGLADESH SPEC&BATTERY-85D26R X 2(55AH X 2)
main27330-58480i202309
BANGLADESH SPEC&BATTERY-80D26R X 2
main27330-67100i200701-200907
main27330-74550i200701-202410
27357HOLDER, ALTERNATOR, W/RECTIFIER
main27357-17080i201702-201704
SPECIAL EDITION
main27357-22200i200907-201408
main27357-55080i200701-202410
main27357-55080i200701-200907
ALTERNATOR-K3A-ME(80A)
main27357-55080i202410
BANGLADESH SPEC&BATTERY-80D26R X 2
main27357-67100i200701-200907
27370HOLDER ASSY, ALTERNATOR BRUSH
main27370-27060i200701-202508
main27370-31220i201408-202309
main27370-35060i200701-200907
main27370-58460i202410
main27370-75060i201702-201704
SPECIAL EDITION
main27370-75060i200701-200907
ALTERNATOR-K3A-ME(80A)
main27370-75060i200701-202410
main27370-75060i202410
BANGLADESH SPEC&BATTERY-80D26R X 2
27411PULLEY, ALTERNATOR
main27411-17030i201702-201704
SPECIAL EDITION
main27411-17030i200701-202410
main27411-17030i202410
BANGLADESH SPEC&BATTERY-80D26R X 2
main27411-17290i202410
main27411-31200i200907-202308
sub27411-31551
main27411-31551i202308-202309
main27411-51030i200701-202508
main27411-66030i200701-200907
main27411-66040i200701-200907
ALTERNATOR-K3A-ME(80A)
27700AREGULATOR ASSY, GENERATOR
main27700-31040i200907-201408
main27700-50030i201702-201704
SPECIAL EDITION
main27700-50030i200701-201003
main27700-58060i200701-201909
CKD PACKAGE(BANGLADESH)
main27700-58060i201909-202309
BATTERY-85D26R X 2(55AH X 2)
main27700-58060i201909-202309
BANGLADESH SPEC&BATTERY-85D26R X 2(55AH X 2)
main27700-58060i202309
BANGLADESH SPEC&BATTERY-80D26R X 2
main27700-62030i201004-202410
main27700-75020i200701-200907
9017906158
main90179-06158

8 parts on this diagram · 9 diagrams in section
