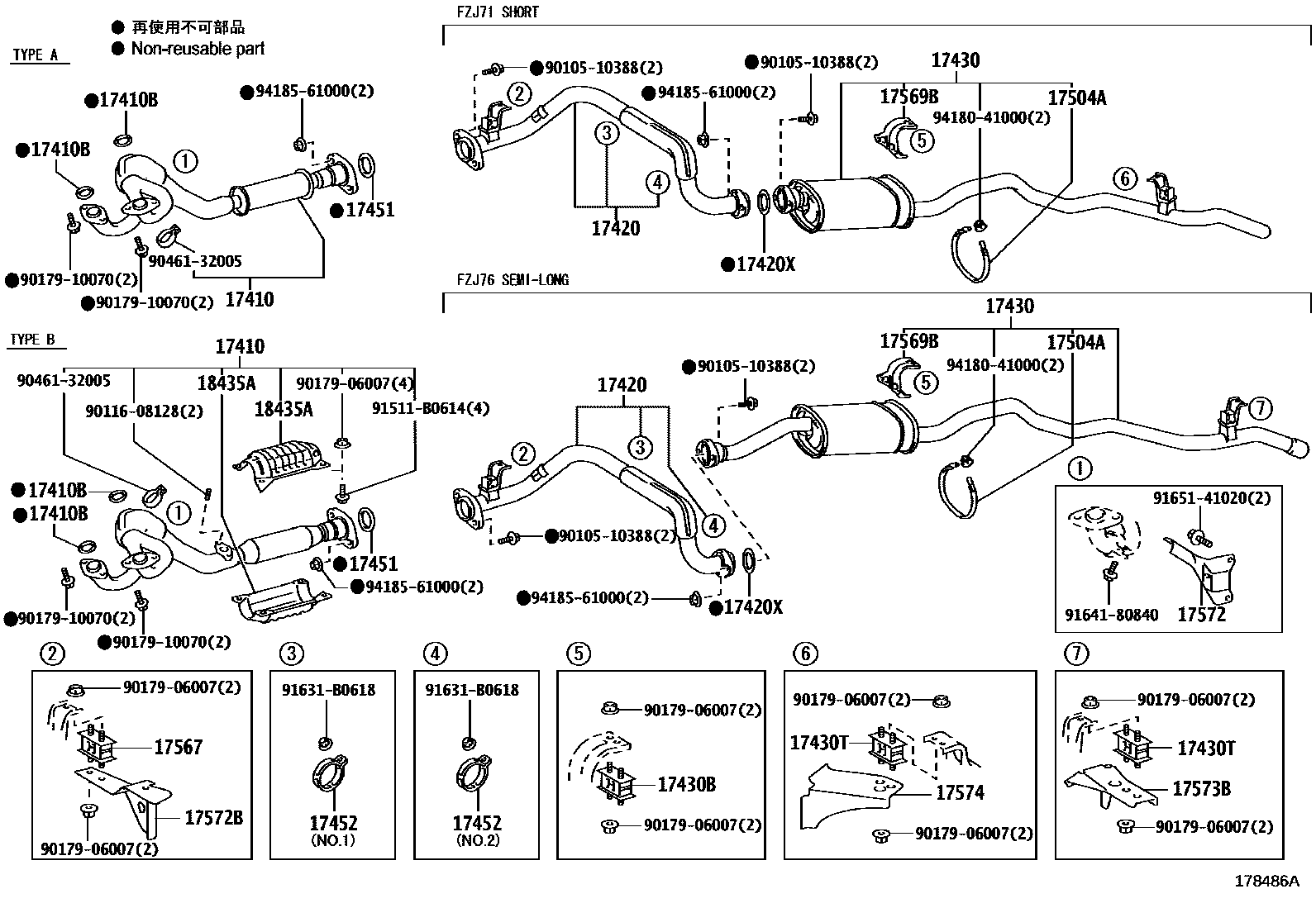

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
EXHAUST EMISSION CONTROL-DIESEL EURO4 WITHOUT(ON BOARD DIAGNOSIS)
sub17401-51071
TYPE A
EXHAUST EMISSION CONTROL-DIESEL EURO6
EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)
main17410-31L20i1GRFE..GRJ78..6FC;1GRFE..GRJ79..PIC..6FC..LX;1GRFE..GRJ78,79..(HT,PIC)..GEN201608-202309
EXHAUST EMISSION CONTROL-GASOLINE LARGE EURO4 *700
NIGERIA SPEC
EXHAUST EMISSION CONTROL-GASOLINE EURO4 *700
EXHAUST EMISSION CONTROL-GASOLINE EURO4 *700
EXHAUST EMISSION CONTROL-GASOLINE LARGE EURO4 *700
17410BGASKET, EXHAUST PIPE
NO.1
EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS),NO.1
EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS),NO.2
sub17451-28041
sub17451-28041
NO.2
EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS),NO.2
17420PIPE ASSY, EXHAUST, CENTER
17420XGASKET, EXHAUST PIPE, CENTER
17430PIPE ASSY, EXHAUST, TAIL
17430BCUSHION, EXHAUST TAILPIPE(FOR FRONT)
17430TCUSHION, EXHAUST TAILPIPE (FOR REAR)
17451GASKET, EXHAUST PIPE
NO.1
REAR
main90917-06076i1VDFTV..VDJ78..GCC;1HZ..HZJ76,78,79..(HT,PIC)..GEN;1GRFE,1HZ,1VDFTV..GRJ71,76,HZJ71,VDJ76,79,L76..CBU201608-202309
NO.2
FRONT
17452CLAMP, EXHAUST PIPE
NO.1
NO.1
NO.2
17504ACLAMP SUB-ASSY, EXHAUST PIPE
EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)
17567CUSHION, EXHAUST PIPE SUPPORT
EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)
sub17567-66011
17569BSTAY, EXHAUST PIPE SUPPORT, NO.2
17572BRACKET, EXHAUST PIPE NO.1 SUPPORT
17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2
17573BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER
17573BBRACKET, EXHAUST PIPE SUPPORT, NO.5
18435APROTECTOR, MONOLITHIC CONVERTER
9010510388
main90105-10388
9011608128
main90116-08128
9017906007
main90179-06007
9017910070
main90179-10070
9046132005
main90461-32005
91511B0614
main91511-B0614
91631B0618
main91631-B0618
9164180840
main91641-80840
9165141020
main91651-41020
9418041000
main94180-41000
9418561000
main94185-61000
29 parts on this diagram · 21 diagrams in section
