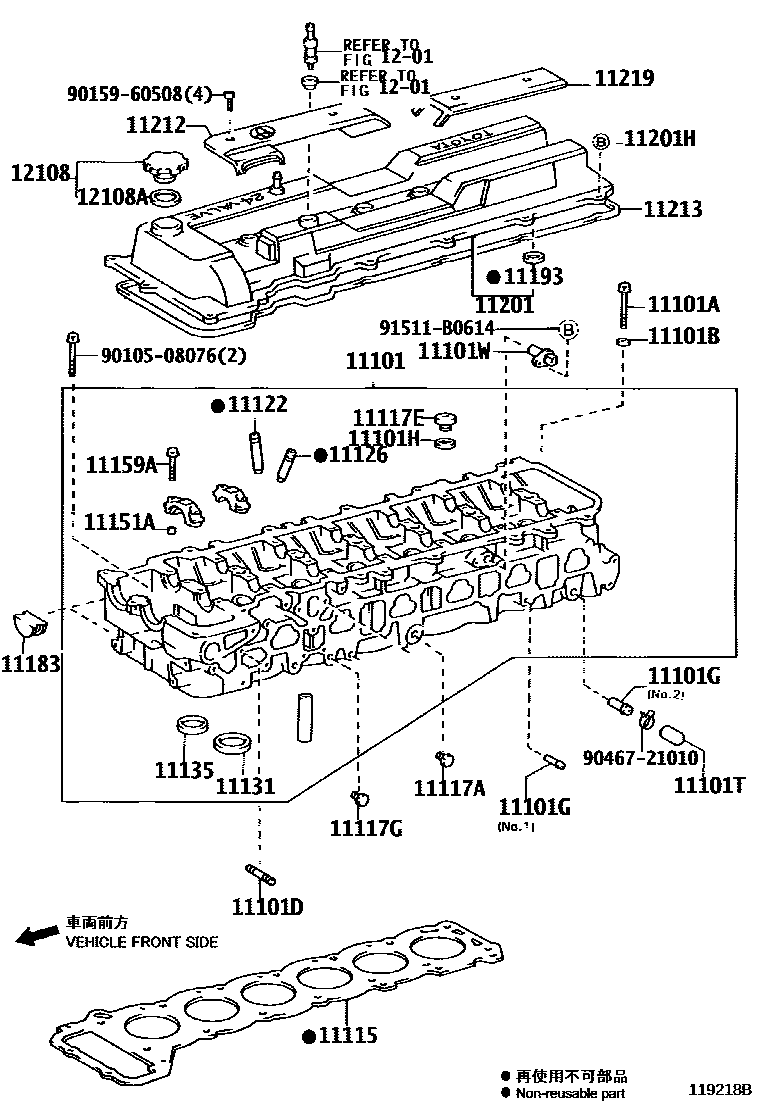

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
UAE SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)
FIJI SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO4 WITHOUT(ON BOARD DIAGNOSIS)
sub12201-51031
sub12262-51021
sub11101-51023
11101ABOLT(FOR CYLINDER HEAD SET)
FIJI SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO4 WITHOUT(ON BOARD DIAGNOSIS),NO.2
NO.2
UAE SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS),NO.2
NO.1
UAE SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS),NO.1
FIJI SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO4 WITHOUT(ON BOARD DIAGNOSIS),NO.1
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11101DBOLT, STUD(FOR WATER OUTLET)
11101GUNION(FOR CYLINDER HEAD)
NO.1(FOR FUELSYSTEM)
NO.2(HEATER OUTLET)
11101HGASKET(FOR CYLINDER HEAD SCREW PLUG)
11101TPLUG, HEATER WATER
HEATER-W(FRONT)
HEATER-W(FRONT & REAR)
11101WSENSOR, CRANK POSITION, NO.1
11115GASKET, CYLINDER HEAD
MARK A,REFER REPAIR MANUAL
FIJI SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO4 WITHOUT(ON BOARD DIAGNOSIS),MARK A,REFER REPAIR MANUAL
UAE SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS),MARK A,REFER REPAIR MANUAL
MARK B,REFER REPAIR MANUAL
FIJI SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO4 WITHOUT(ON BOARD DIAGNOSIS),MARK B,REFER REPAIR MANUAL
UAE SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS),MARK B,REFER REPAIR MANUAL
MARK C,REFER REPAIR MANUAL
UAE SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS),MARK C,REFER REPAIR MANUAL
FIJI SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO4 WITHOUT(ON BOARD DIAGNOSIS),MARK C,REFER REPAIR MANUAL
UAE SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS),MARK D,REFER REPAIR MANUAL
FIJI SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO4 WITHOUT(ON BOARD DIAGNOSIS),MARK D,REFER REPAIR MANUAL
MARK D,REFER REPAIR MANUAL
UAE SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS),MARK E,REFER REPAIR MANUAL
FIJI SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO4 WITHOUT(ON BOARD DIAGNOSIS),MARK E,REFER REPAIR MANUAL
MARK E,REFER REPAIR MANUAL
MARK 1,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
MARK 5,REFER REPAIR MANUAL
MARKA,REFER REPAIR MANUAL
MARKB,REFER REPAIR MANUAL
MARKC,REFER REPAIR MANUAL
MARKD,REFER REPAIR MANUAL
MARKE,REFER REPAIR MANUAL
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
UAE SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)
FIJI SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO4 WITHOUT(ON BOARD DIAGNOSIS)
11117GPLUG, W/HEAD STRAIGHT SCREW, NO.3
11122BUSH, INTAKE VALVE GUIDE
STD
STD
O/S 0.05
O/S 0.05,UAE SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)
O/S 0.05,KENYA SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO4 WITHOUT(ON BOARD DIAGNOSIS)
O/S 0.05,FIJI SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)
O/S 0.05,FIJI SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO4 WITHOUT(ON BOARD DIAGNOSIS)
STD
O/S 0.05
O/S 0.05
O/S 0.05
STD,KENYA SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO4 WITHOUT(ON BOARD DIAGNOSIS)
STD,FIJI SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)
STD,FIJI SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO4 WITHOUT(ON BOARD DIAGNOSIS)
STD
STD,UAE SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
STD
O/S 0.05,KENYA SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO4 WITHOUT(ON BOARD DIAGNOSIS)
O/S 0.05,FIJI SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO4 WITHOUT(ON BOARD DIAGNOSIS)
O/S 0.05
O/S 0.05,UAE SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)
O/S 0.05,FIJI SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)
STD
O/S 0.05
O/S 0.05
STD
STD,UAE SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)
STD,KENYA SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO4 WITHOUT(ON BOARD DIAGNOSIS)
STD,FIJI SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)
STD,FIJI SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO4 WITHOUT(ON BOARD DIAGNOSIS)
O/S 0.05
STD
O/S 0.05
11131SEAT, INTAKE VALVE
STD
STD
O/S 0.03
O/S 0.03
11135SEAT, EXHAUST VALVE
STD
STD
O/S 0.03
O/S 0.03
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
L=7,OD=10
L=8,OD=11
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
NO.1
UAE SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)
FIJI SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO4 WITHOUT(ON BOARD DIAGNOSIS)
NO.2
11183PLUG, SEMICIRCULAR
11193GASKET, SPARK PLUG TUBE
11201COVER SUB-ASSY, CYLINDER HEAD
FIJI SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO4 WITHOUT(ON BOARD DIAGNOSIS)
UAE SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)
sub11201-51031
sub11201-51051
EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)
11201HBOLT(FOR CYLINDER HEAD COVER)
EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)
11212COVER, CYLINDER HEAD, NO.2
11213GASKET, CYLINDER HEAD COVER
UAE SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)
FIJI SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO4 WITHOUT(ON BOARD DIAGNOSIS)
11219COVER, CYLINDER HEAD, NO.3
1201
12108CAP SUB-ASSY, OIL FILLER
UAE SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)
FIJI SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO4 WITHOUT(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)
12108AGASKET(FOR OIL FILLER CAP)
FIJI SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO4 WITHOUT(ON BOARD DIAGNOSIS)
UAE SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)
9010508076
9015960508
9046721010
91511B0614
31 parts on this diagram · 7 diagrams in section
