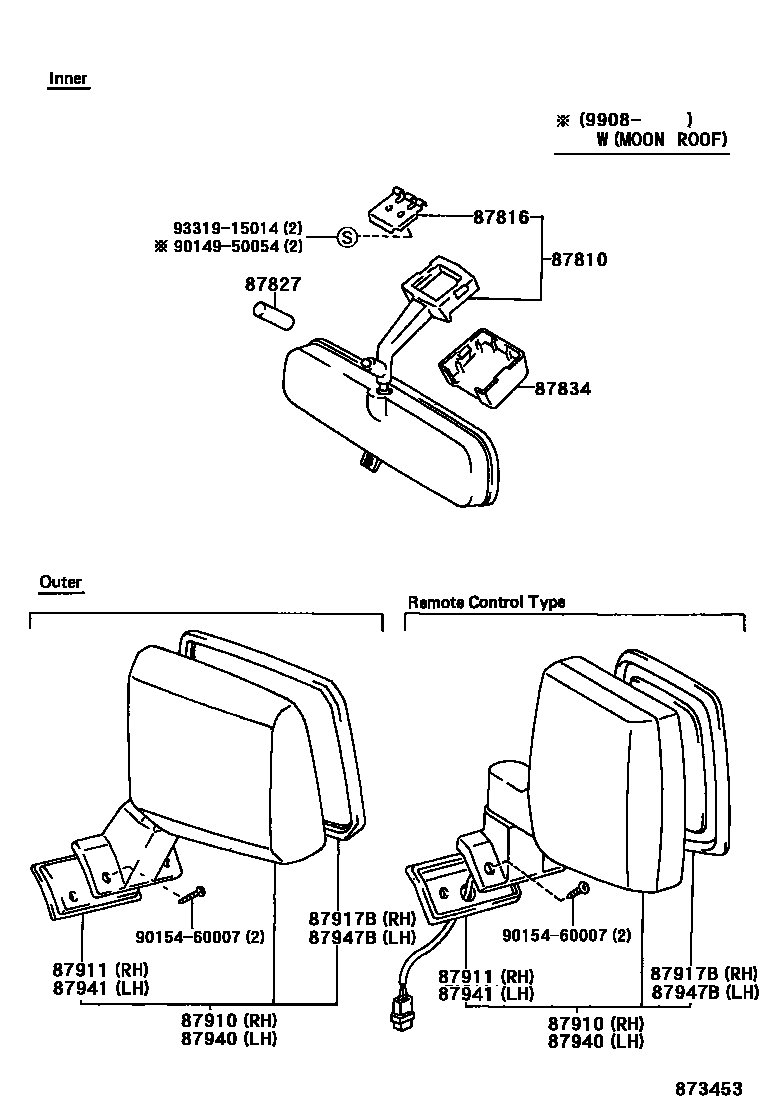

MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-90K04iFZJ79..GEN..IV;FZJ71,78..LHD..GEN199001-200808

main87810-90K05iFZJ71..LHD..STD..GEN199510-200308

CHINA SPEC

main87810-90K05iFZJ79,HZJ79..RHD..GEN200002-200701

SOUTH AFRICA SPEC

main87810-90K05iFZJ75,HZJ75..SA199001-200701

87816SPRING, INNER REAR VIEW MIRROR

main74372-30030iFZJ75,HZJ75..SA199001-200808

87827ABSORBER, INNER REAR VIEW MIRROR

main87828-30010iHZJ70,75..RHD..(PIC,SOT)..GEN..CBU199001-200808

L=44

main87828-87005iHZJ70,75..RHD..(PIC,SOT)..GEN..CBU199001-200808

L=49

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-20080-18iFZJ75,HZJ75..SA199001-200106

IVORY,TRIM1#,4#

sub87834-20080

main87834-20080-B6iFZJ78,79..ARL199908-200808

LIGHT GRAY,TRIM1#,4#

sub87834-20080

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-60140iFZJ75,HZJ75..SA199305-199309

sub87910-60141

main87910-60140iHZJ75..LHD..HT;FZJ70,75..LHD..(HT,PIC)..STD..GEN..CBU199308-199309

CHINA SPEC

sub87910-60141

main87910-60141iHZJ75..GEN..IV;HZJ75..LHD..PIC..GEN..CBU;FZJ73,HZJ75..(HT,SOT)..GEN..(CBR,DSL);FZJ70,75,HZJ70..(HT,PIC)..GEN..(CBR,DSL)199309-200701

NO PAINT REQ.

sub87910-60142

main87910-60141iFZJ75,HZJ75..SA199309-199508

NO PAINT REQ.,CHINA SPEC

sub87910-60142

main87910-60142iFZJ79..IV;FZJ71,78..LHD..STD..GEN200702-200808

NO PAINT REQ.

main87910-60150iFZJ73,75,HZJ75..LX..GCC199305-199309

CHROME PLATED

sub87910-60151

main87910-60151iFZJ7#,HZJ75..STD..GCC199309-199608

PLATED

main87910-60152iFZJ71,74,78,79,HZJ79..GCC199608-200701

PLATED

main87910-60310iLJ77,79,RJ77..LHD..LX199004-199508

PLATED,REMOTE CONTROL TYPE

main87910-60320iLJ79..STD;LJ79..LHD..LX;KZJ77,RJ77..GEN199004-199508

NO PAINT REQ.

main87910-60331iRJ77..LHD..GEN199308-199309

CHINA SPEC

sub87910-60332

main87910-60332iLJ79..STD;LJ79..LHD..LX;KZJ77,RJ77..GEN199508-199604

NO PAINT REQ.

sub87910-60333

main87910-60332iRJ77..LHD..GEN199309-199508

NO PAINT REQ.,CHINA SPEC

sub87910-60333

main87910-60340iKZJ77,RJ77..RHD..LX199004-199508

PLATED,REMOTE CONTROL TYPE

main87910-60340iKZJ77,RJ77..RHD..LX199305-199508

PLATED

main87910-60360iRJ77..GCC199004-199305

sub87910-60362

main87910-60361iRJ77..GCC199305-199309

sub87910-60362

main87910-60362iRJ77..GCC199309-199604

PLATED

sub87910-60363

main87910-60460iFZJ74..LX..GEN199508-200808

PLATED,REMOTE CONTROL TYPE

main87910-60460iFZJ73..STD..GEN..CBR199508-199908

PLATED,COLOMBIA SPEC

main87910-60470iKZJ77,LJ79,RJ77..LHD..LX199508-199604

PLATED,REMOTE CONTROL TYPE

main87910-60480iLJ79..RHD..LX199508-199604

PLATED

main87910-60480iLJ79..RHD..LX199508-199604

PLATED,REMOTE CONTROL TYPE

main87910-60680iFZJ7#,HZJ75..STD..GCC199608-200701

NO PAINT REQ.

main87910-60690iFZJ74,79..LX..GCC199608-200701

PLATED,REMOTE CONTROL TYPE

main87910-90K00iPZJ70,73;PZJ75..4F;RJ70..SOT199001-200701

NO PAINT REQ.

main87910-90K04iFJ7#,FZJ7#,HZJ75..STD..GCC199001-199305

PLATED

sub87910-60151

main87910-90K09iFZJ73..STD..GEN199001-199508

PLATED,REMOTE CONTROL TYPE

main87910-90K09iFZJ73..STD..GEN199305-199508

PLATED,COLOMVIA SPEC HI-GRADE

main87910-90K15iFJ75,FZJ75,HJ75,HZJ75..SA199001-199305

sub87910-60142

87911GASKET, OUTER REAR VIEW MIRROR, RH

main87911-60050iLJ79..STD;LJ79..LHD..LX;KZJ77,RJ77..GEN199004-199508

main87911-60060iLJ79..STD;KZJ77,RJ77;LJ79..LHD..LX199004-199604

main87911-60060iRJ77..LHD..GEN199308-199508

CHINA SPEC

main87911-60070iLJ77,79,RJ77..LX199004-199604

REMOTE CONTROL TYPE

main87911-90K00iFZJ70,HZJ70..ARL;FZJ75..RHD..IV..CBR;FZJ70,PZJ75..(PIC,SOT)..5F199001-200701

main87911-90K01iFZJ73,75..(PIC,SOT)..GEN..EFI199508-200808

main87911-90K01iHZJ78..GEN;FJ75,FZJ75,HZJ75..SA;FJ7#,FZJ73,75,HZJ75..LX..GCC;FZJ71,74,78,79,HJ75,HZJ71,79..GCC,GEN,SA199001-199508

CHROME PLATED

main87911-90K01iHZJ75..LHD..HT;FZJ70,75..LHD..(HT,PIC)..STD..GEN..CBU199308-199508

CHINA SPEC

main87911-90K05iFZJ71,74,79..LX199001-200808

REMOTE CONTROL TYPE

main87911-90K05iFZJ73..EFI199305-200405

COLOMBIA SPEC

87917BMIRROR, OUTER REAR VIEW, RH

main87917-60460iFZJ79..GEN..IV199908-200808

REMOTE CONTROL MIRROR

main87917-60680iFZJ71,74,78,79,HZJ79..GCC199908-200701

main87917-60690iFZJ74,79..LX..GCC199908-200701

REMOTE CONTROL MIRROR

main87917-90K00iFZJ75,HZJ75..ARL199001-200701

main87917-90K01iFZJ75,HZJ75..SA;FZJ73,75,HZJ75,RJ77..LX..GCC199305-199508

CHROME PLATED

main87917-90K01iHZJ70,75..RHD..(PIC,SOT)..GEN..CBU199508-200808

main87917-90K01iHZJ75,RJ77..LHD..HT..GEN;FZJ70,75..LHD..(HT,PIC)..STD..GEN..CBU199308-199508

CHINA SPEC

main87917-90K03iFJ70,73,FZJ70,73,LJ70,72,PZJ70,RJ70..LX..GEN199001-199305

REMOTE CONTROL MIRROR

sub87901-60050

main87917-90K08iPZJ70..LX199004-199508

REMOTE CONTROL MIRROR

main87917-90K08iLJ79..RHD..LX199305-199508

COLOMBIA HI-GRADE PACKAGE

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-60250iKZJ77,LJ79,RJ77..LHD..LX199004-199508

PLATED,REMOTE CONTROL TYPE

main87940-60260iLJ79..STD;LJ79..LHD..LX;KZJ77,RJ77..GEN199004-199508

NO PAINT REQ.

main87940-60271iRJ77..LHD..GEN199308-199309

CHINA SPEC

sub87940-60272

main87940-60272iLJ79..STD;LJ79..LHD..LX;KZJ77,RJ77..GEN199508-199604

NO PAINT REQ.

sub87940-60273

main87940-60272iRJ77..LHD..GEN199309-199508

NO PAINT REQ.,CHINA SPEC

sub87940-60273

main87940-60280iKZJ77,RJ77..RHD..LX199305-199508

PLATED

main87940-60280iLJ77,79,RJ77..RHD..LX199004-199508

PLATED,REMOTE CONTROL TYPE

main87940-60300iRJ77..GCC199004-199305

sub87940-60302

main87940-60301iRJ77..GCC199305-199309

sub87940-60302

main87940-60302iRJ77..GCC199309-199604

PLATED

sub87940-60303

main87940-60370iHZJ75..LHD..HT;FZJ70,75..LHD..(HT,PIC)..STD..GEN..CBU199308-199309

CHINA SPEC

sub87940-60371

main87940-60370iFZJ75,HZJ75..SA199305-199309

sub87940-60371

main87940-60371iFZJ75,HZJ75..SA199309-200701

NO PAINT REQ.

sub87940-60372

main87940-60371iHZJ75..LHD..HT;FZJ70,75..LHD..(HT,PIC)..STD..GEN..CBU199309-199508

NO PAINT REQ.,CHINA SPEC

sub87940-60372

main87940-60372iFZJ79..IV;FZJ71,78..LHD..STD..GEN200702-200808

NO PAINT REQ.

main87940-60380iFZJ7#,HZJ75..STD..GCC199305-199309

CHROME PLATED

sub87940-60381

main87940-60381iFZJ73,75,HZJ75..LX..GCC199309-199608

PLATED

main87940-60382iFZJ7#,HZJ75..GCC199608-200701

PLATED

main87940-60420iFZJ7#,HZJ7#..LHD..LX199508-200808

PLATED,REMOTE CONTROL TYPE

main87940-60420iFZJ73..STD..GEN..CBR199508-199908

PLATED,COLOMBIA SPEC

main87940-60430iKZJ77,LJ79,RJ77..LHD..LX199508-199604

PLATED,REMOTE CONTROL TYPE

main87940-60440iLJ79..RHD..LX199508-199604

PLATED

main87940-60440iLJ79..RHD..LX199508-199604

PLATED,REMOTE CONTROL TYPE

main87940-60600iFZJ7#,HZJ75..STD..GCC199608-200701

NO PAINT REQ.

main87940-60610iFZJ74,79..LX..GCC199608-200701

PLATED,REMOTE CONTROL TYPE

main87940-90K00iPZJ70,73;PZJ75..4F;RJ70..SOT199001-200701

NO PAINT REQ.

main87940-90K04iFJ7#,FZJ7#,HZJ75..STD..GCC199001-199305

PLATED

sub87940-60381

main87940-90K09iFZJ73..STD..GEN199305-199508

PLATED,COLOMBIA SPEC

main87940-90K09iPZJ70..LX199001-199508

PLATED,REMOTE CONTROL TYPE

main87940-90K15iFJ75,FZJ75,HJ75,HZJ75..SA199001-199305

sub87940-60372

87941GASKET, OUTER REAR VIEW MIRROR, LH

main87911-60050iLJ77,79,RJ77..GEN199004-199508

main87911-60060iLJ79..STD;KZJ77,RJ77;LJ79..LHD..LX199004-199604

main87911-60060iRJ77..LHD..GEN199308-199508

CHINA SPEC

main87911-60070iLJ79..LHD..LX;KZJ77,RJ77..LX199004-199604

REMOTE CONTROL TYPE

main87911-90K00iHZJ75..CBU;FJ75..ARL..CBU;HZJ75..GEN..IV;FJ70,73..STD..GCC;FJ75..STD..(GCC,GEN);FJ70,73,HZJ70,73,LJ70,72,PZJ7#,RJ70..ARL,GEN199001-200701

main87911-90K01iFZJ74,79..GCC,GEN;FZJ71,78,HZJ71,78,79..STD..(GCC,GEN)199508-200808

main87911-90K01iHZJ78..GEN;FJ75,FZJ75,HZJ75..SA;FJ7#,FZJ73,75,HZJ75..LX..GCC;FZJ71,74,78,79,HJ75,HZJ71,79..GCC,GEN,SA199001-199508

CHROME PLATED

main87911-90K01iHZJ75..LHD..HT;FZJ70,75..LHD..(HT,PIC)..STD..GEN..CBU199308-199508

CHINA SPEC

main87911-90K05iFZJ73..EFI199305-200405

COLOMBIA SPEC

main87911-90K05iFZJ71,74,79..LX199001-200808

REMOTE CONTROL TYPE

87947BMIRROR, OUTER REAR VIEW, LH

main87947-60250iLJ79..RHD..LX199004-199508

REMOTE CONTROL MIRROR

main87947-60420iFZJ74..STD..GEN199908-200808

REMOTE CONTROL MIRROR

main87947-60600iFZJ71,74,78,79,HZJ79..GCC199908-200701

main87947-60610iFZJ74,79..LX..GCC199908-200701

REMOTE CONTROL MIRROR

main87947-90K00iFZJ75,HZJ75..ARL199001-200701

main87947-90K01iFZJ7#,HZJ75..STD..GCC199305-199508

CHROME PLATED

main87947-90K01iFZJ70,75..GEN..CBU..EFI199004-200808

main87947-90K01iHZJ75,RJ77..LHD..HT..GEN;FZJ70,75..LHD..(HT,PIC)..STD..GEN..CBU199308-199508

CHINA SPEC

main87947-90K08iFZJ7#,HZJ7#,KZJ70,RJ70..LHD..LX199305-199508

COLOMBIA HI-GRADE PACKAGE

main87947-90K08iFJ7#,FZJ73,75,HZJ75..LX..GCC199001-199508

REMOTE CONTROL MIRROR

9014950054

main90149-50054

9015460007

main90154-60007

9331915014

main93319-15014

13 parts on this diagram · 1 diagram in section
