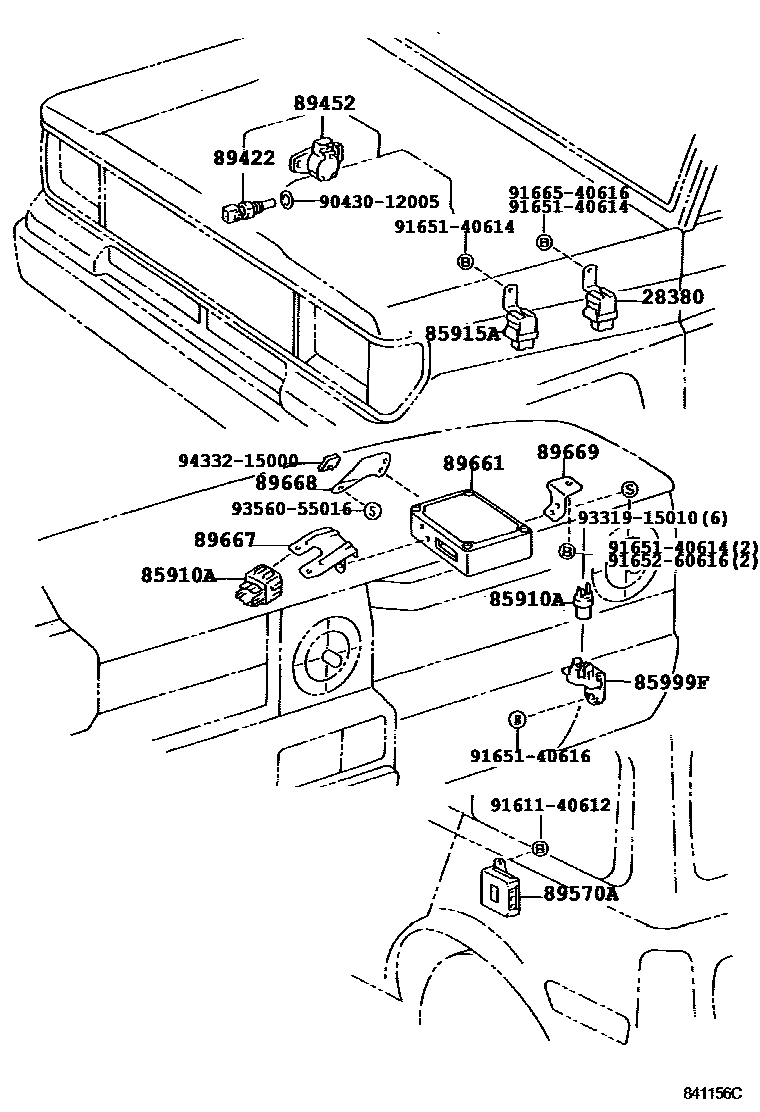

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

28380RELAY ASSY, FUEL PUMP

main28380-66010i1FZFE..FZJ70,75199208-200808

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-60010iFZJ79..GEN..IV;FZJ71,78..LHD..GEN199908-200808

main85910-60010iFZJ71..LHD..GEN;FZJ74..STD..GEN199208-200701

NO.1

main90987-02004iFZJ73,75199709-200405

NO.2

main90987-02004iFZJ78,79..ARL199908-200701

SUB FUEL TANK,NO.2

85915ARELAY, MAIN

main85915-60040iFZJ70,75..GEN..CBU..EFI199709-200808

85999FBRACKET, RELAY

main85999-12050iFZJ78,79199709-200701

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-35010iFZJ70,75..EFI199208-200808

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-20130iFZJ71,74,78,79200308-200402

main89452-22090iFZJ70..EFI199208-200405

89570ACOMPUTER ASSY, FUEL PUMP CONTROL

main89570-60120iFZJ75..ARL199208-199908

89661COMPUTER, ENGINE CONTROL

main89661-60240iFZJ70,75..EFI199208-199501

main89661-60350iFZJ75..ARL199501-199908

main89661-60580iFZJ73,75..(PIC,SOT)..GEN..EFI199709-200405

main89666-60110iFZJ71,74,78,79..LHD199908-200108

sub89666-60111

main89666-60111iFZJ71,74,78,79..LHD200108-200701

main89666-60250iFZJ71,78,79..RHD199908-200108

sub89666-60251

main89666-60251iFZJ78,79..ARL200108-200701

main89666-60650iFZJ71,74,78..GCC200007-200108

SAUDI ARABIA SPEC

sub89666-60651

main89666-60651iFZJ78..GCC200108-200507

W(ENGINE IMMOBILIZER SYSTEM)

main89666-60670iFZJ78,79..LHD..GEN..CBU200010-200108

CHINA SPEC

sub89666-60671

main89666-60671iFZJ79..LHD;FZJ74..STD..GEN;FZJ71,78..LHD..GEN200109-200808

COLOMBIA CKD PACKAGE

main89666-60671iFZJ79..LHD..GEN..CBU200108-200808

CHINA OR SAUDI ARABIA SPEC

main89666-60671iFZJ71,74..GCC200207-200701

SAUDI ARABIA SPEC

main89666-60740iFZJ71,74,78..GCC200108-200701

SAUDI ARABIA SPEC & W(ENGINE IMMOBILIZER SYSTEM)

main89666-60800iFZJ78,79..ARL200207-200605

main89666-60800iFZJ78,79..LHD..GEN..CBU200207-200701

PERU SPEC

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-60090iFZJ70..EFI199208-199908

main89667-60130iFZJ73,75..(PIC,SOT)..GEN..EFI199709-200405

main89667-60130iFZJ78,79..LHD..GEN..CBU200010-200104

CHINA SPEC

main89667-60160iFZJ71,74,78,79..LHD199908-200701

main89667-60170iFZJ78,79..ARL199908-200701

main89667-60230iFZJ79..GEN..IV;FZJ71..LHD..GEN200109-200808

VENEZUELA CKD PACKAGE

main89667-60230iFZJ79..LHD..GEN..CBU200104-200808

CHINA SPEC

main89667-60230iFZJ71,74,78,79..GCC200108-200701

W(IMMOBILIZER)

main89667-60250iFZJ78,79..ARL200207-200605

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-60070iFZJ75..ARL199208-199908

main89668-60140iFZJ70,75..GEN..CBU..EFI199709-200405

main89668-60140iFZJ78,79..LHD..GEN..CBU200010-200104

CHINA SPEC

main89668-60180iFZJ71,78..GCC;FZJ74,79..LHD..CBU199908-200808

main89668-60190iFZJ71,78,79..RHD199908-200701

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-60060iFZJ70..EFI199208-199908

main89669-60070iFZJ73,75..(PIC,SOT)..GEN..EFI199709-200405

main89669-60070iFZJ78,79..LHD..GEN..CBU200010-200104

CHINA SPEC

main89669-60080iFZJ78,79..ARL200003-200701

9043012005

main90430-12005

9161140612

main91611-40612

9165140614

main91651-40614

9165140616

main91651-40616

9165260616

main91652-60616

9166540616

main91665-40616

9331915010

main93319-15010

9356055016

main93560-55016

9433215000

main94332-15000

20 parts on this diagram · 2 diagrams in section
